Rosette mount has missing chamfers.

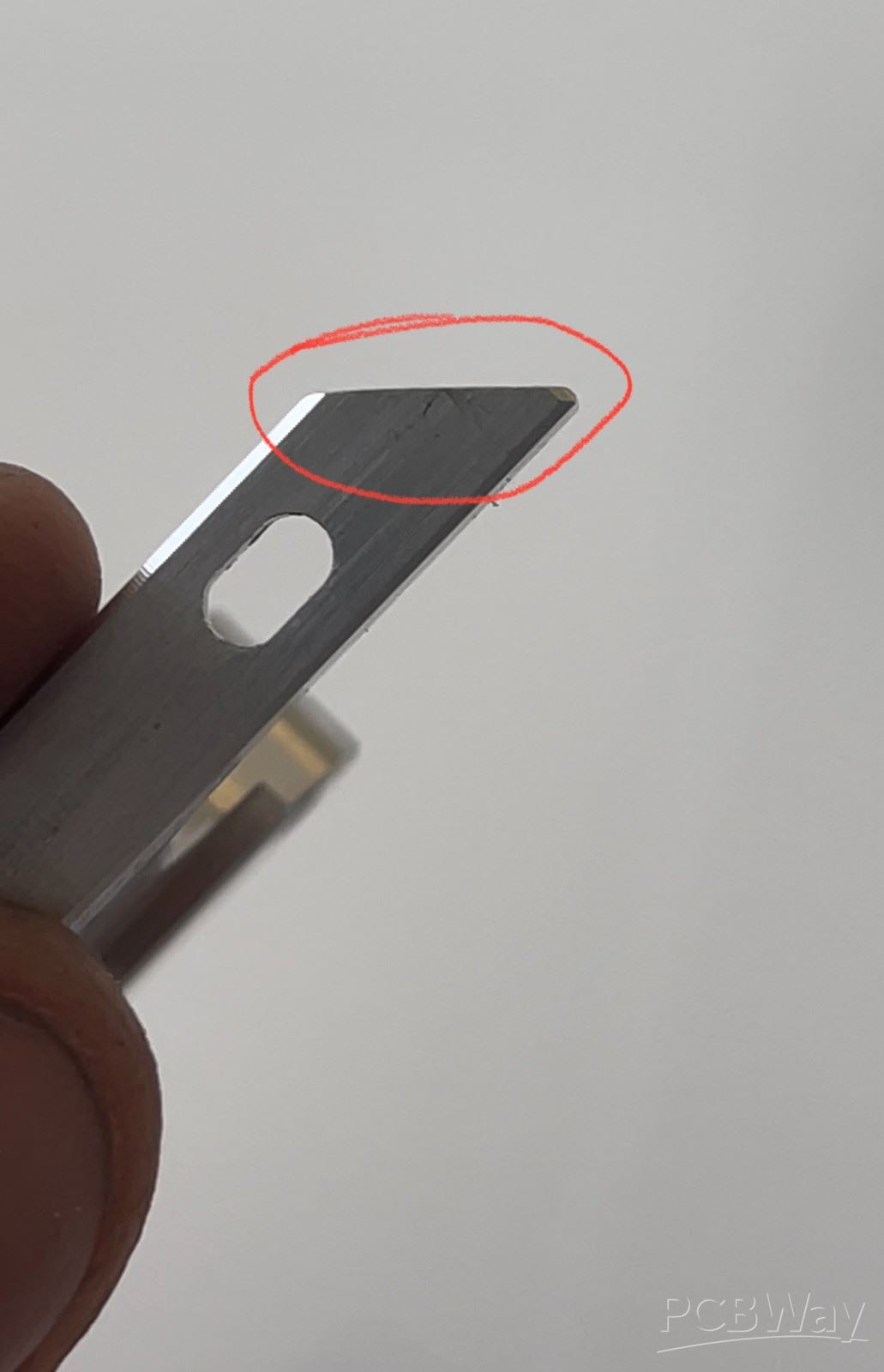

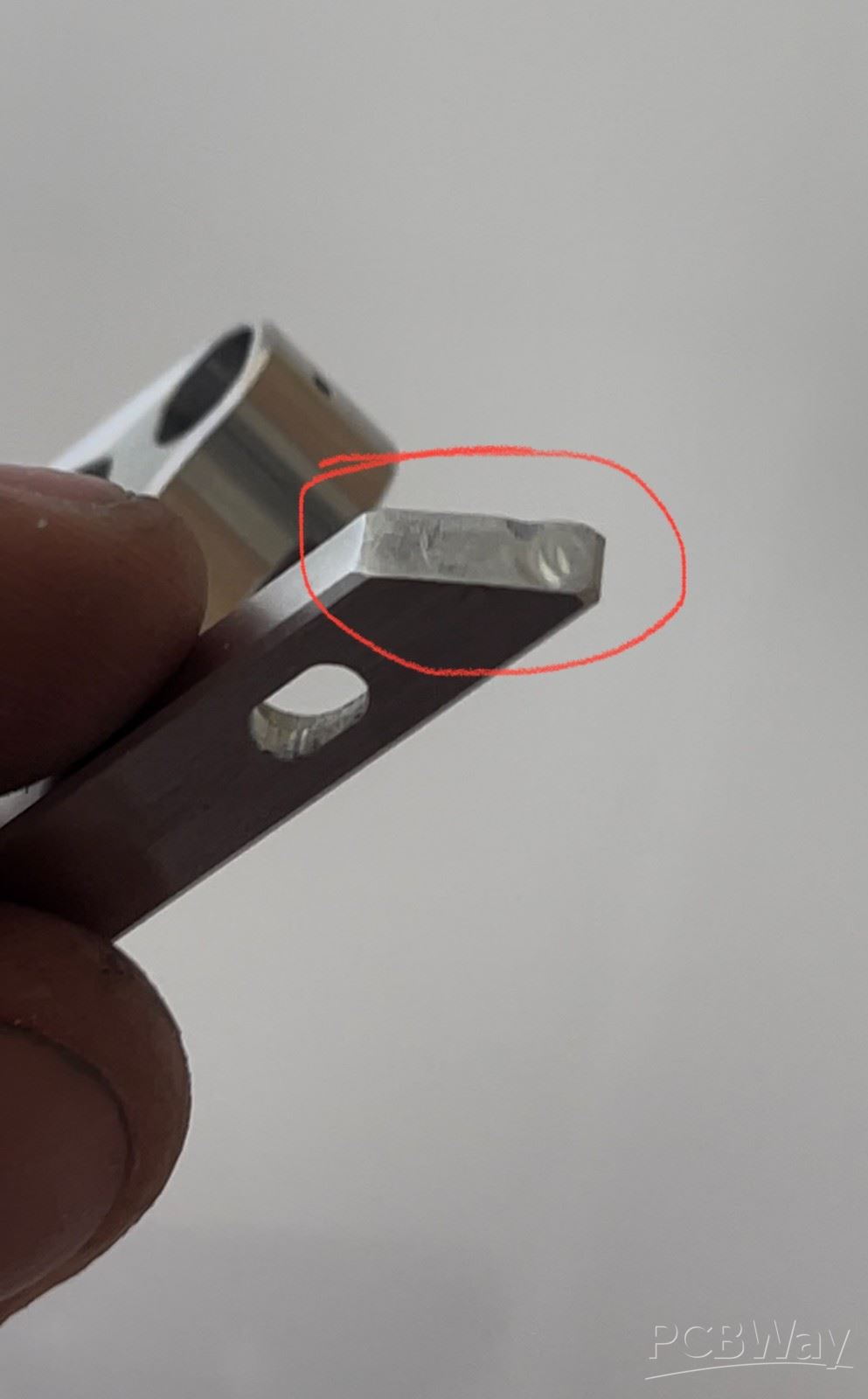

This part looked very nice and also fit as expected. You will see in the attached photos, however, that the chamfers are missing on this angled end of the part. The surface finish on the end is fairly rough, but that isn’t much of an issue compared to the missing chamfers. We are hoping that we can resolve this problem for future orders of this part.





Oct 18,2023
25 viewsReport item
