Rod Clamp has missing chamfers.

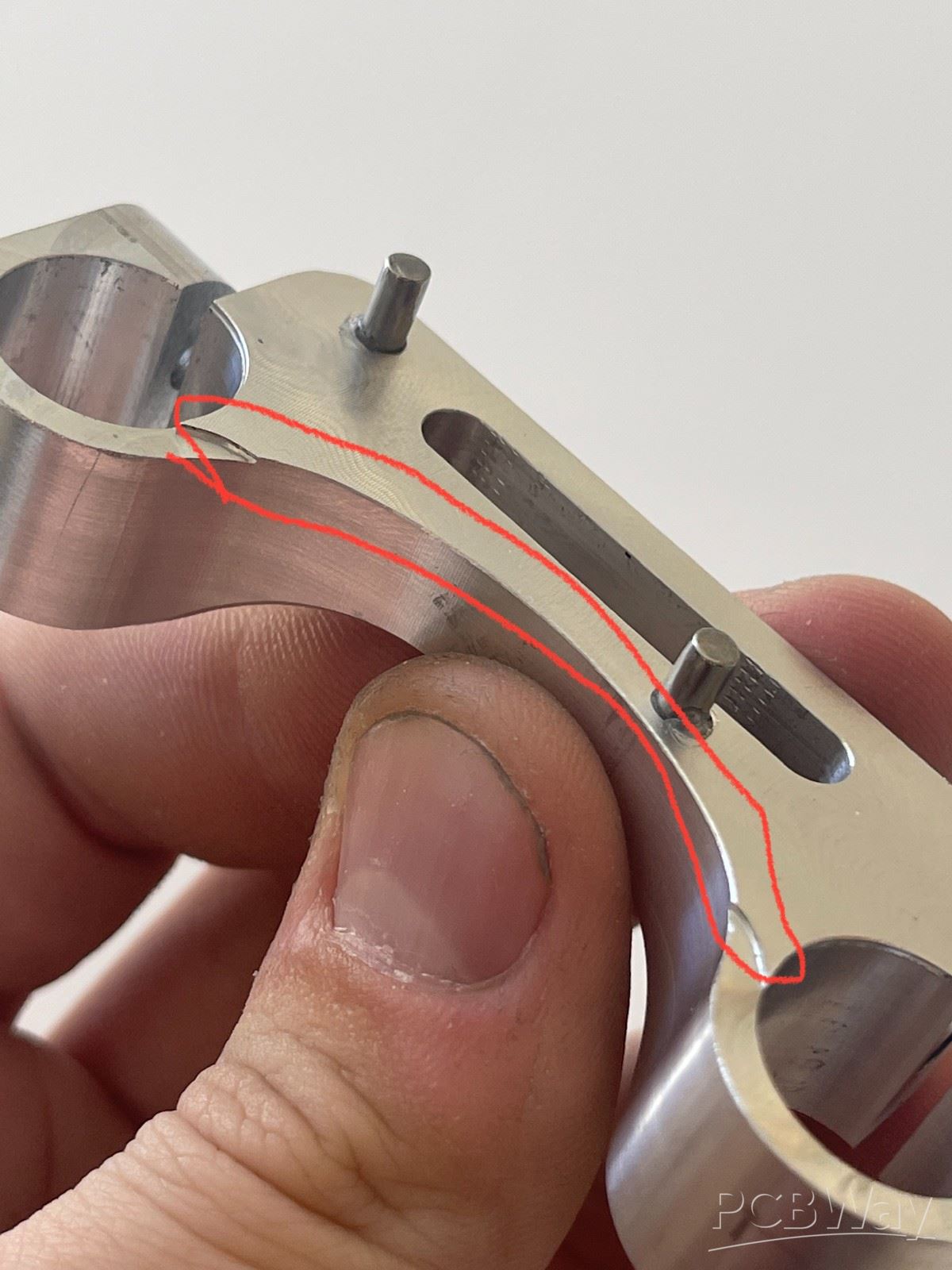

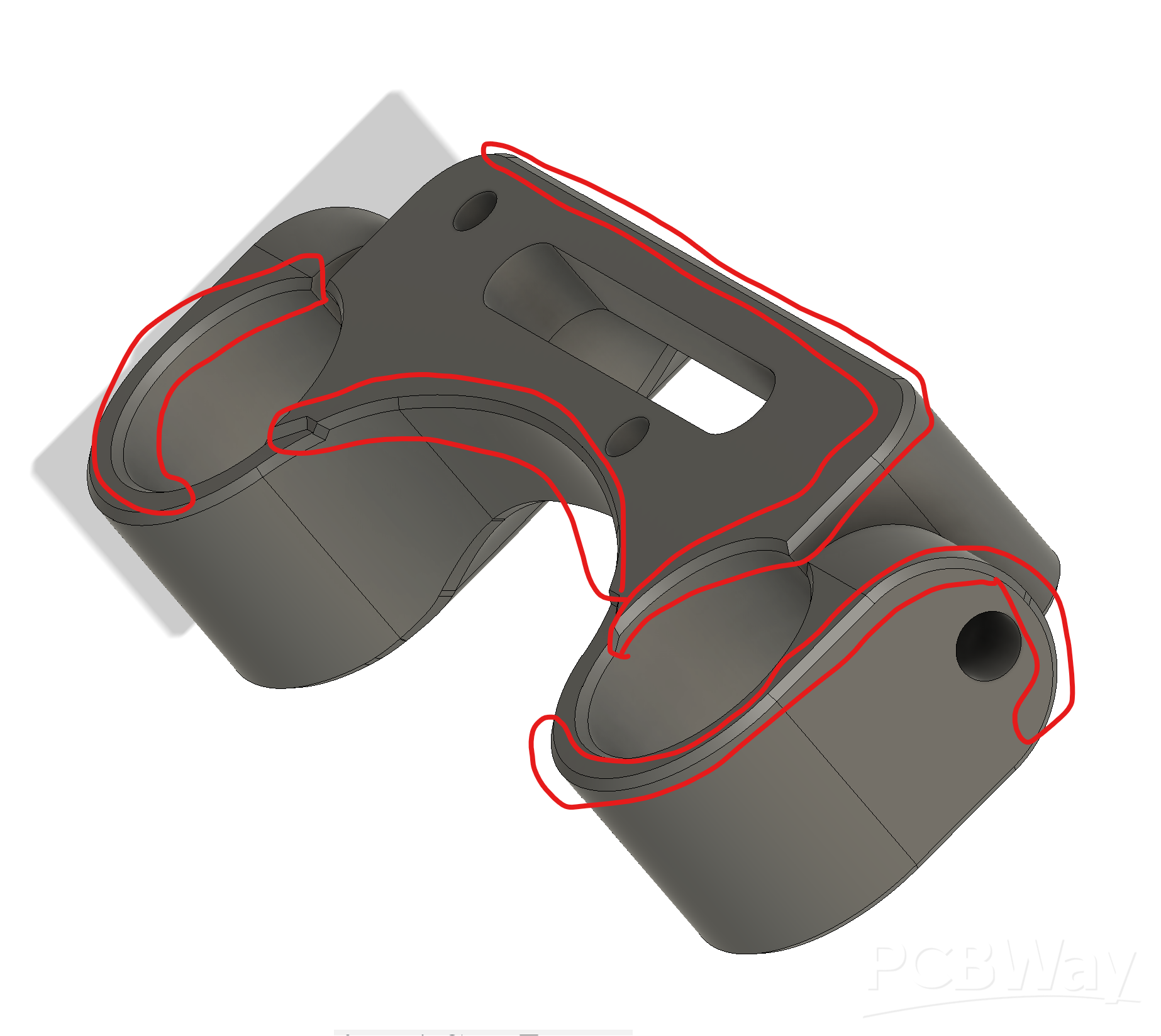

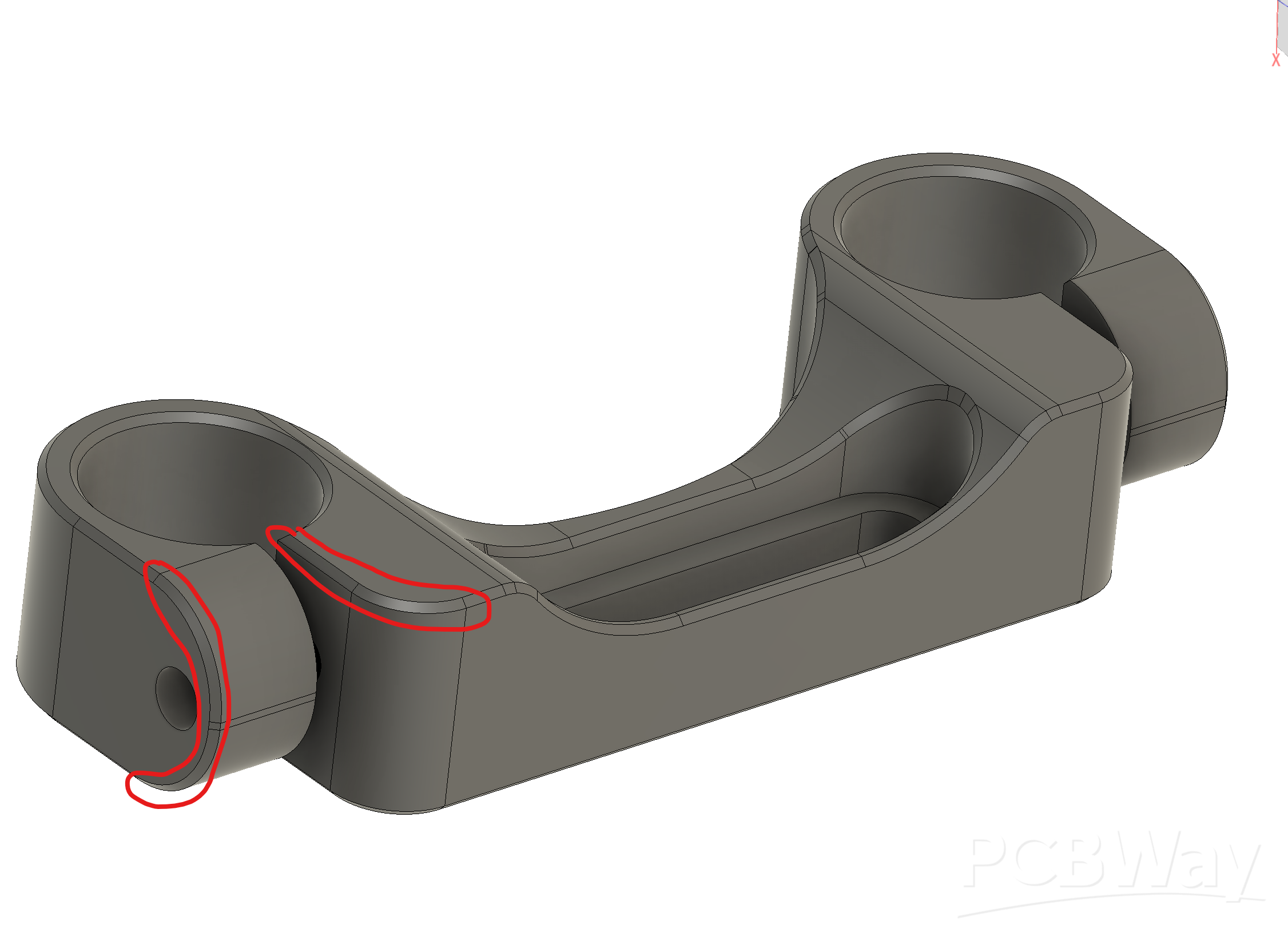

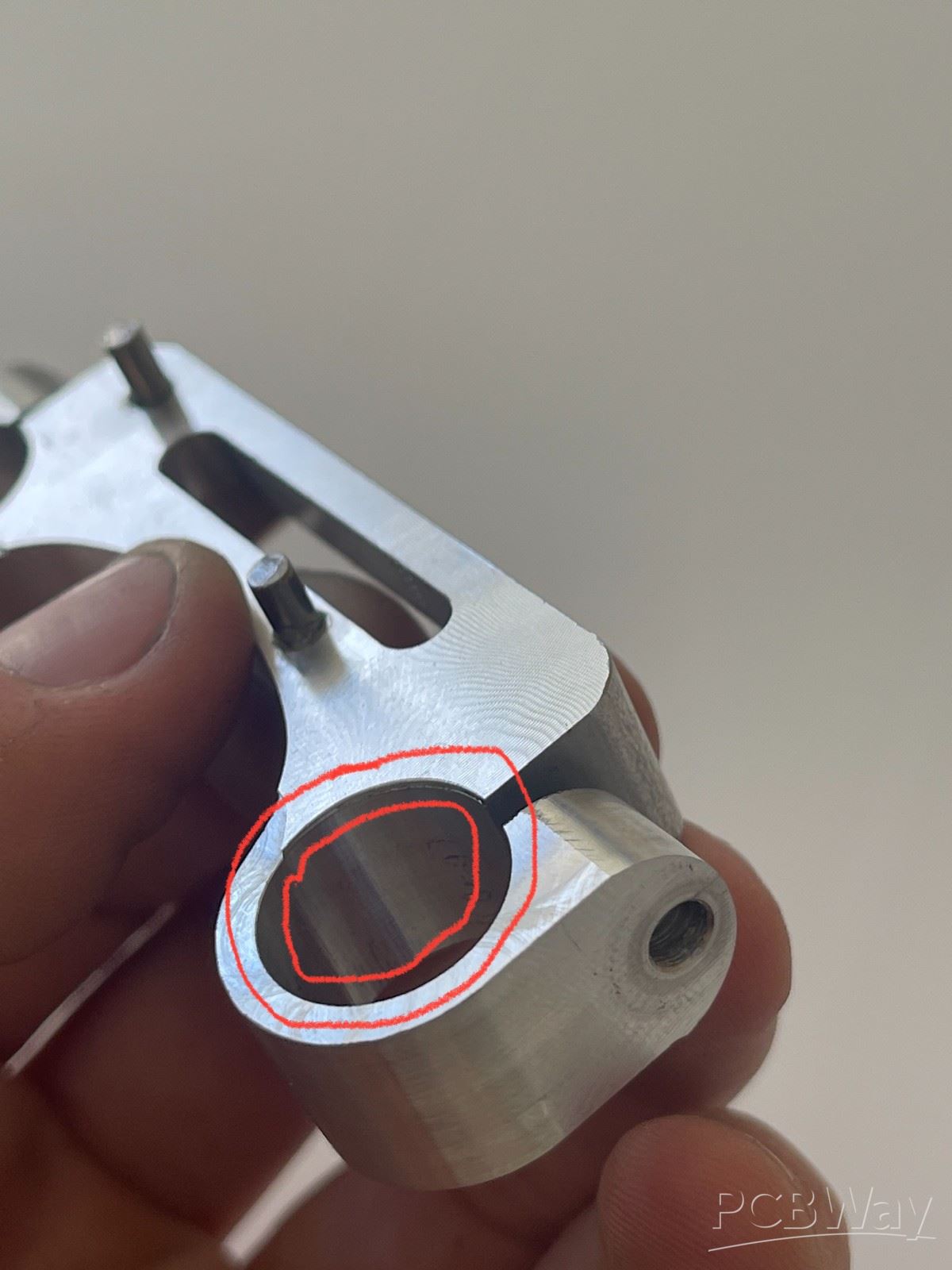

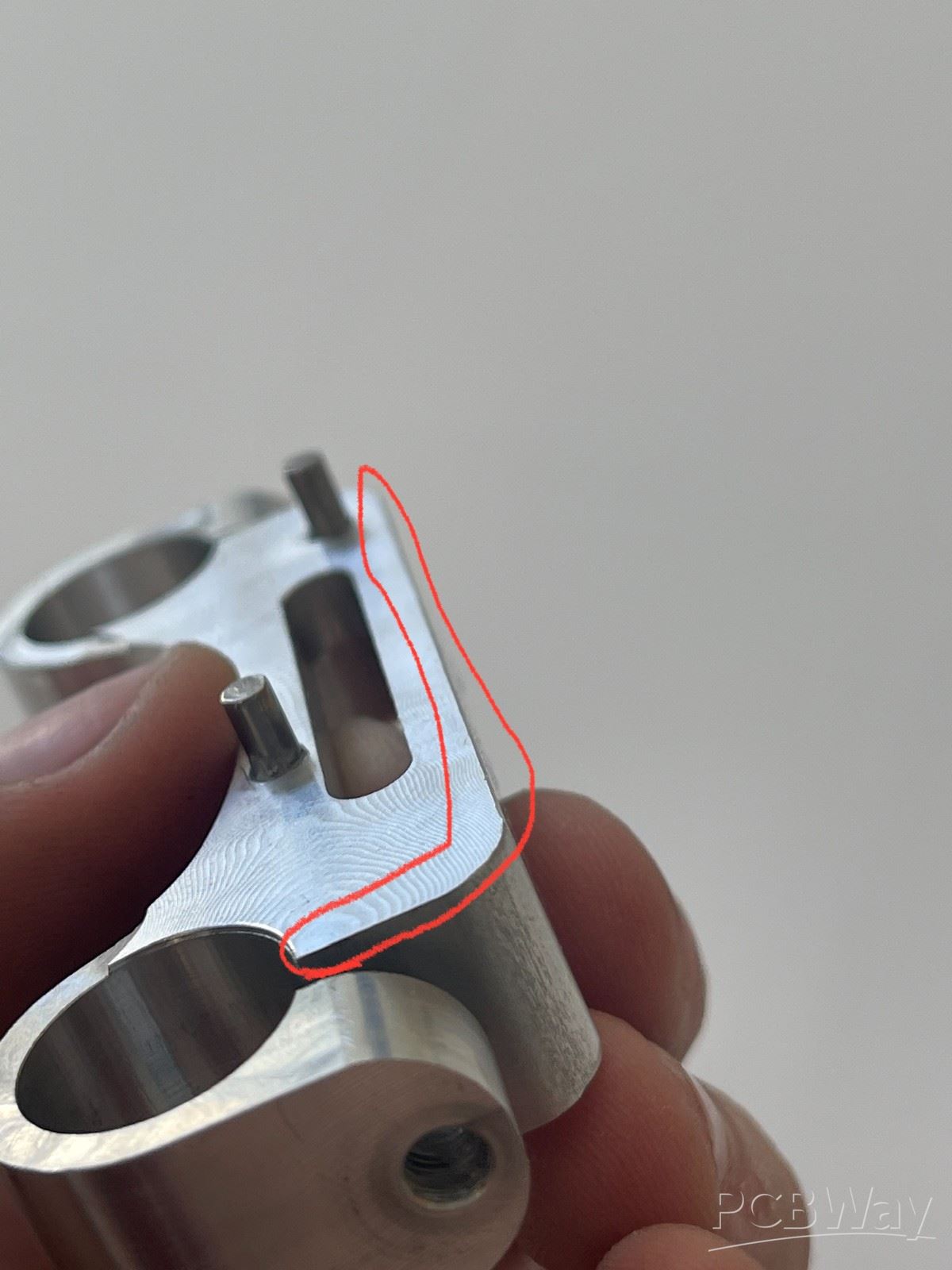

This part looks very nice and fits as expected. However, this part is also missing chamfers on a few edges. Some of the chamfers were cut as expected, but others were left out. You can see this in the attached photos. We are hoping that we can resolve this problem for future orders of this part.







Oct 18,2023
