Revel Kit Battery Latch

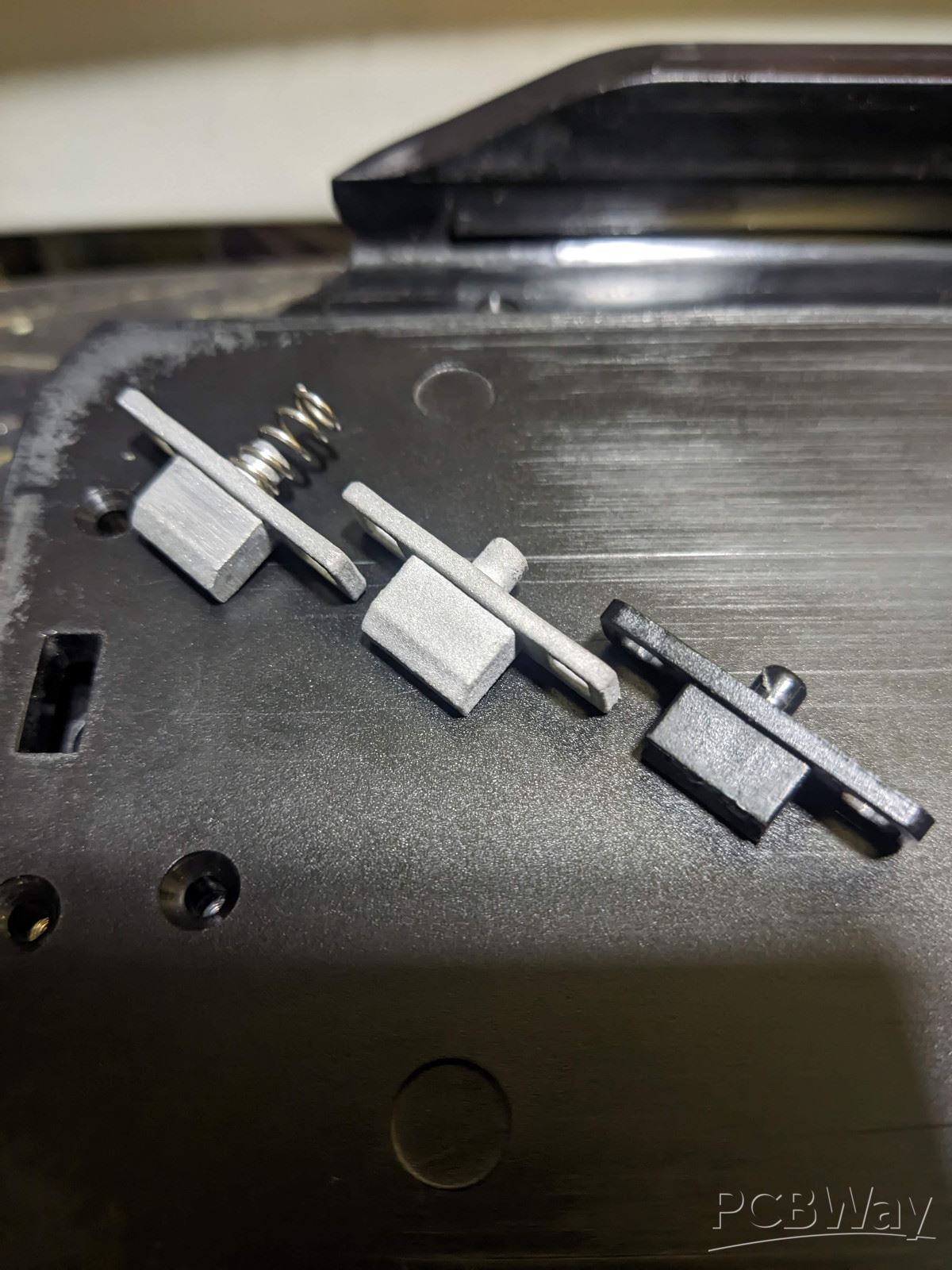

Replacement of part no longer available with the manufacturer. Very pleased with the final part in general. Only things to note. Square holes ended up being smaller for fit. Main rectangular body ended up being to big for fit. Spring cylinder was bigger for fit. Lightly sanded with grit 150 for correct fit.
