Relay Module

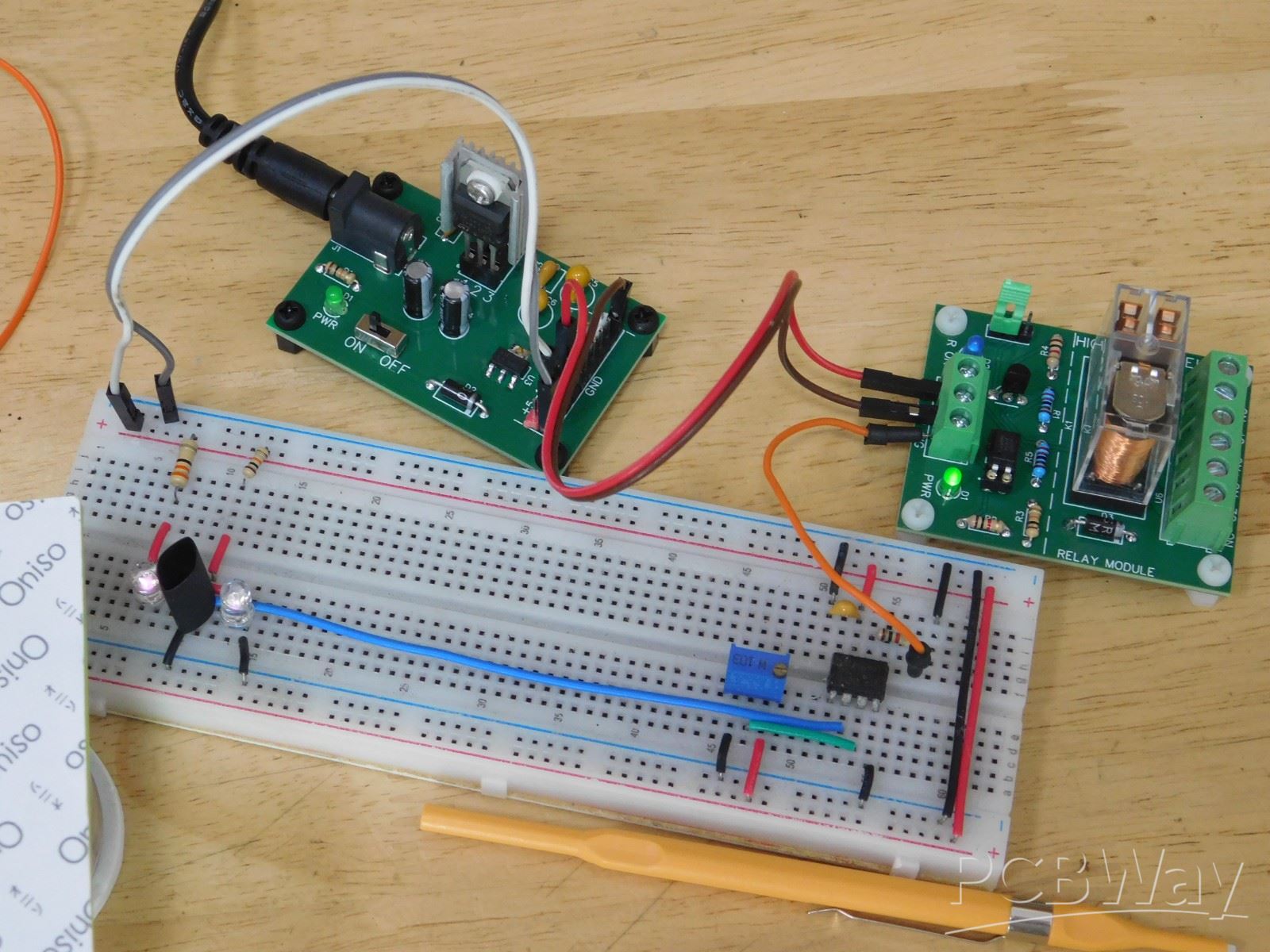

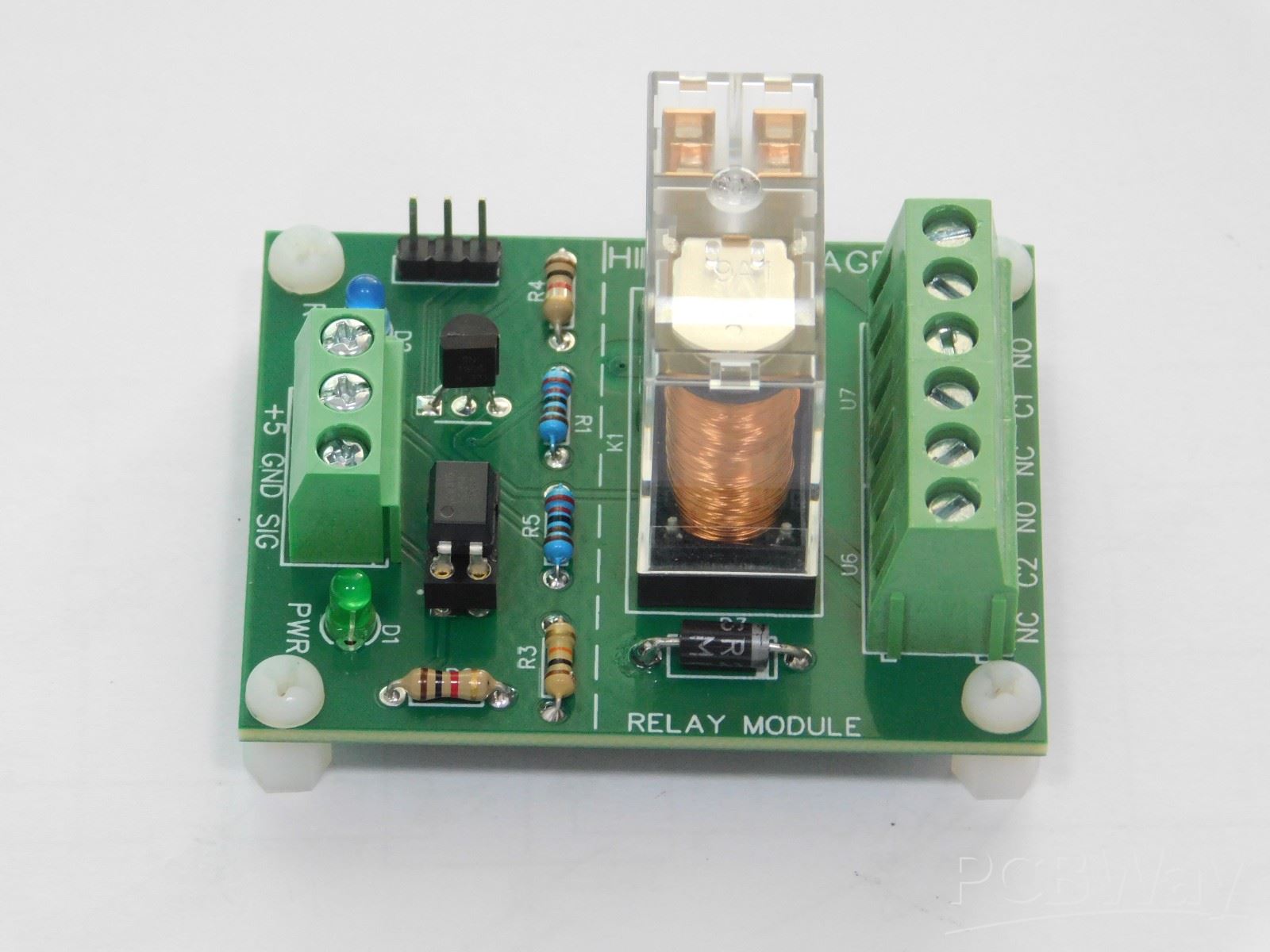

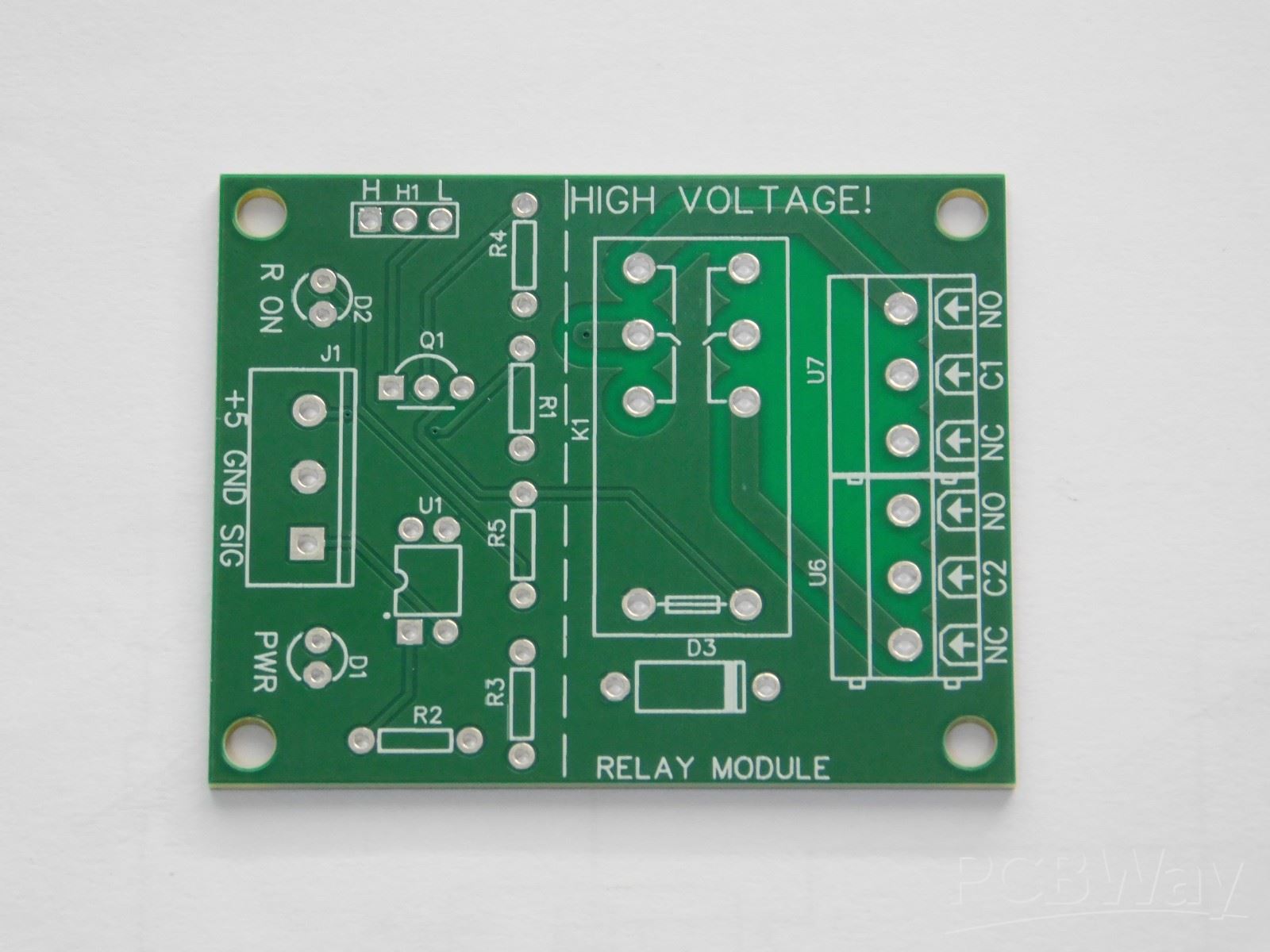

I designed a relay module to use Omron relays, DPDT thereby capable of controlling 4 devices, provided the current does not exceed the relay rating. I have ordered numerous PCBs from PCBWay and am continuously amazed at the very fast turn around, and of course the exceptional quality. PCBWay is the only fabricator I use and will continue to do so, they are highly recommended.






Dec 19,2025
12 viewsReport item
