RS232 to Icom CI-V Interface

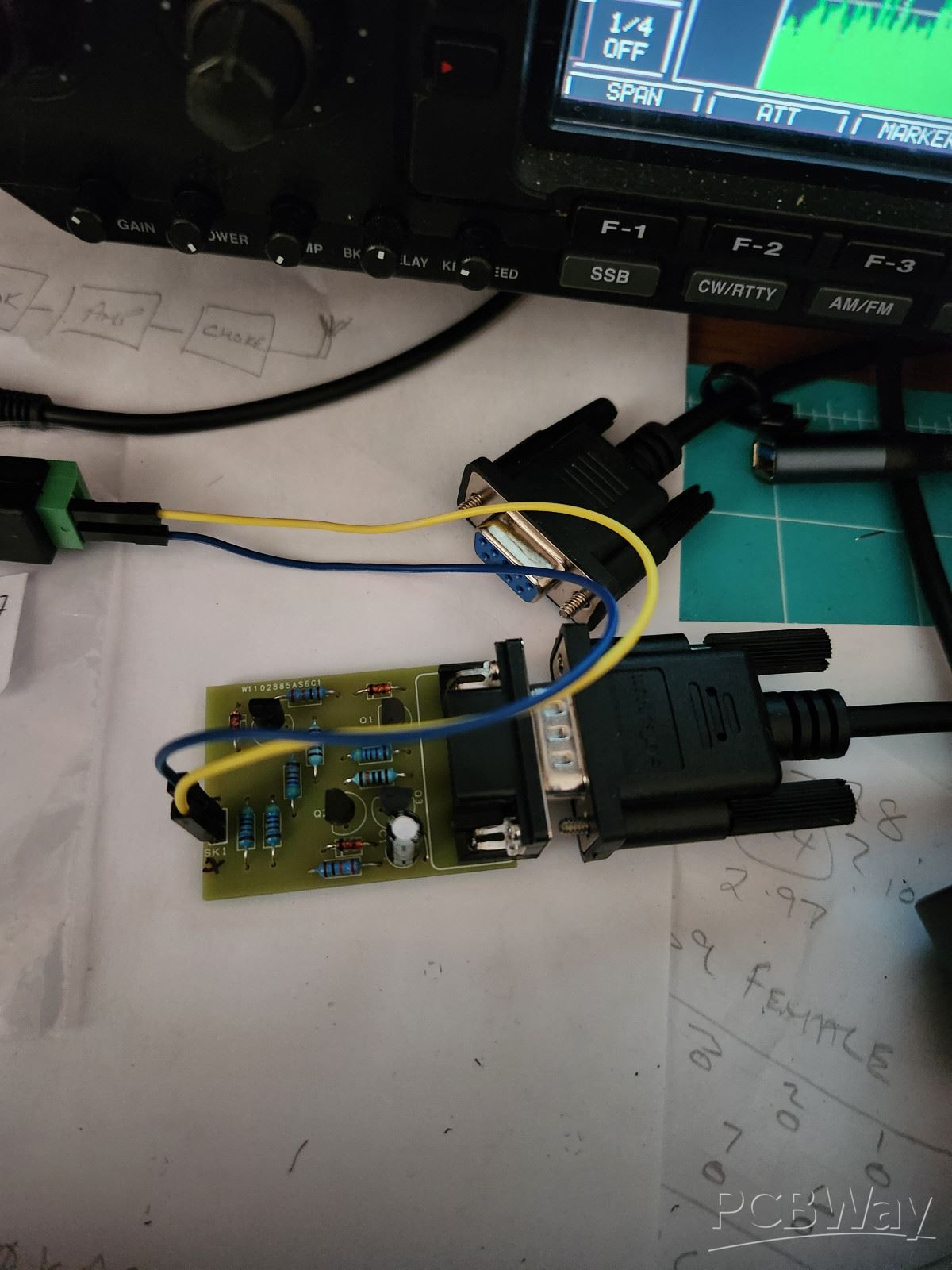

I was pleasantly surprised at how quickly the order arrived from China. I also wasn't sure what to expect regarding the quality of the PCBs but again I was surprised at the excellent quality of the finished PCBs. Wasn't long before I had one populated with components and hooked up the the PC and the radio to test it, it worked flawlessly. Looks like I've found my new PCB supplier! There was one error on the PCB, which was my fault as I forgot to tie the solder terminals of the DB9 to Gnd, but a short link solved that issue and the PCB design was updated so if I get any more PCBs produced they'll be correct.


Oct 12,2026
