Power Supply Module Ver. 2

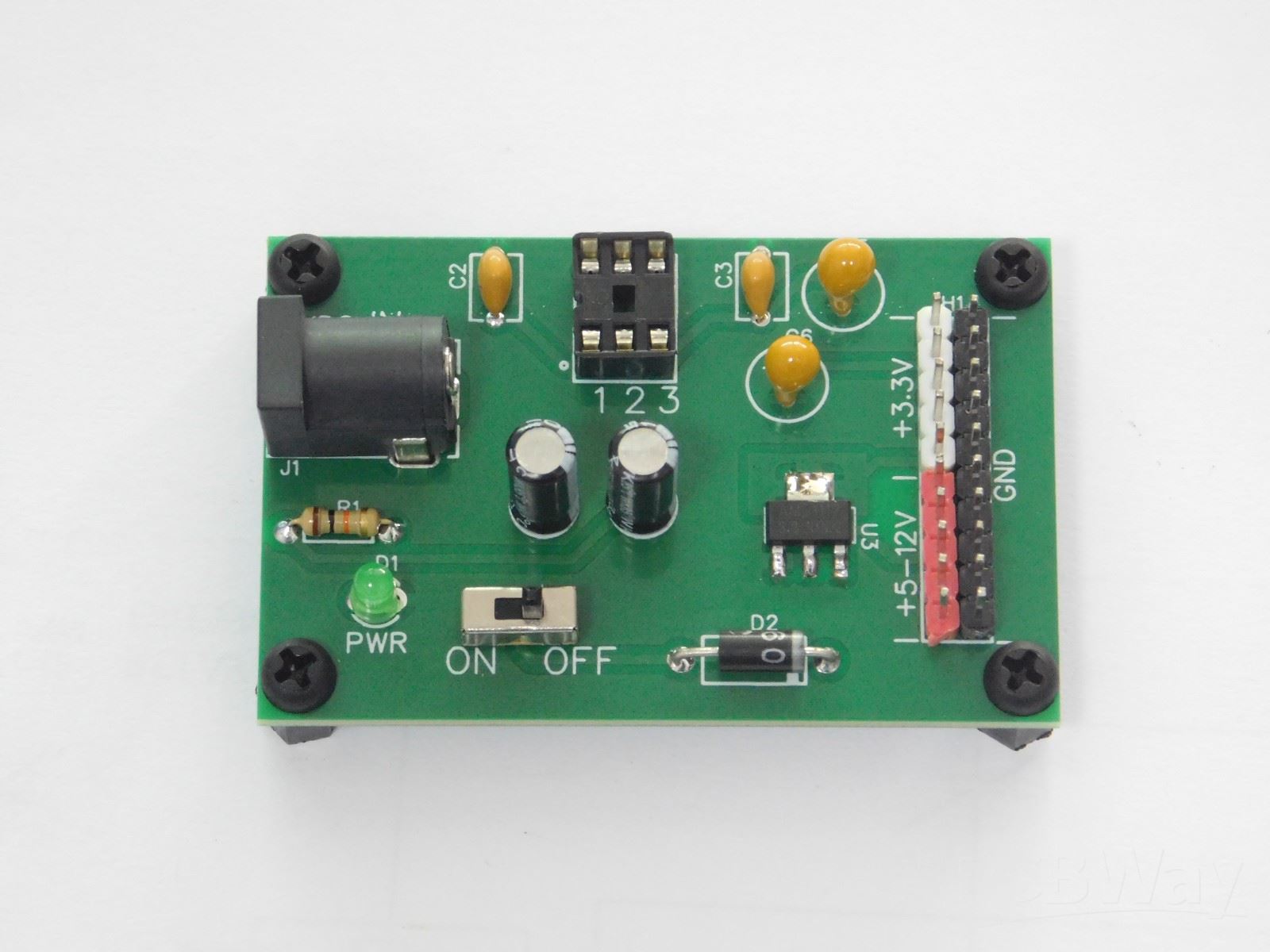

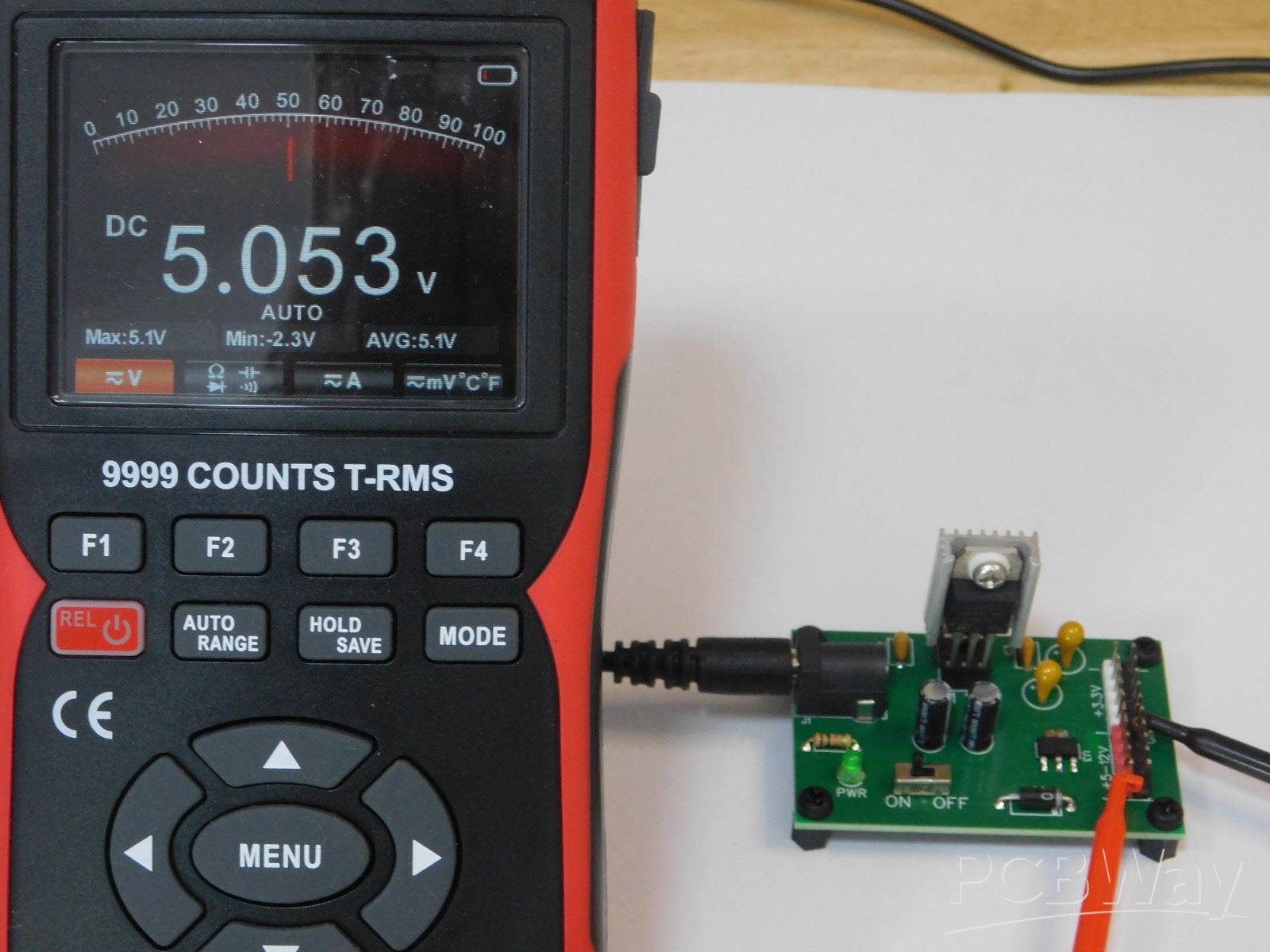

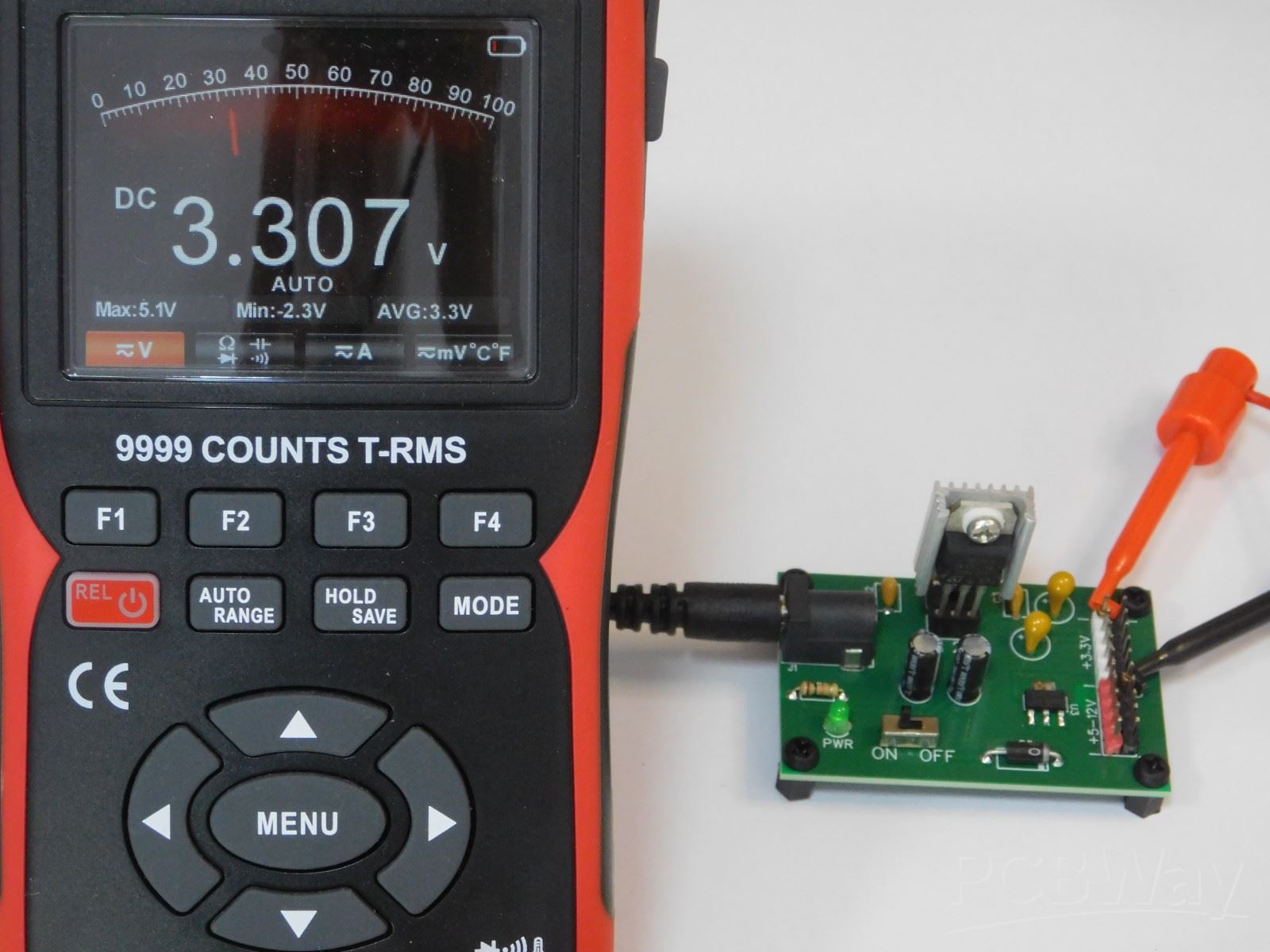

Here is Ver. 2 of my small Power Supply Module for hobbyist to use when powering small projects when experiment or creating a new design. A new feature on this version of the power supply is that it can also provide 3.3 volts in addition to one of the other voltages, which are 5, 6, 9, or 12 volts. Another feature is multiple output pins, as there is now five pins for 5 volts, five pins for 3.3 volts, and ten pins for ground. PCBWay did a 100% perfect job on manufacturing this PCB, the detail is perfect, and the board is 100% operational. Thank you again PCBWay for a great service. If you are looking for perfect PCBs fabricated, look no further than PCBWay, highly recommended!
