PV Carrier Spacer - 1.2mm, single hole

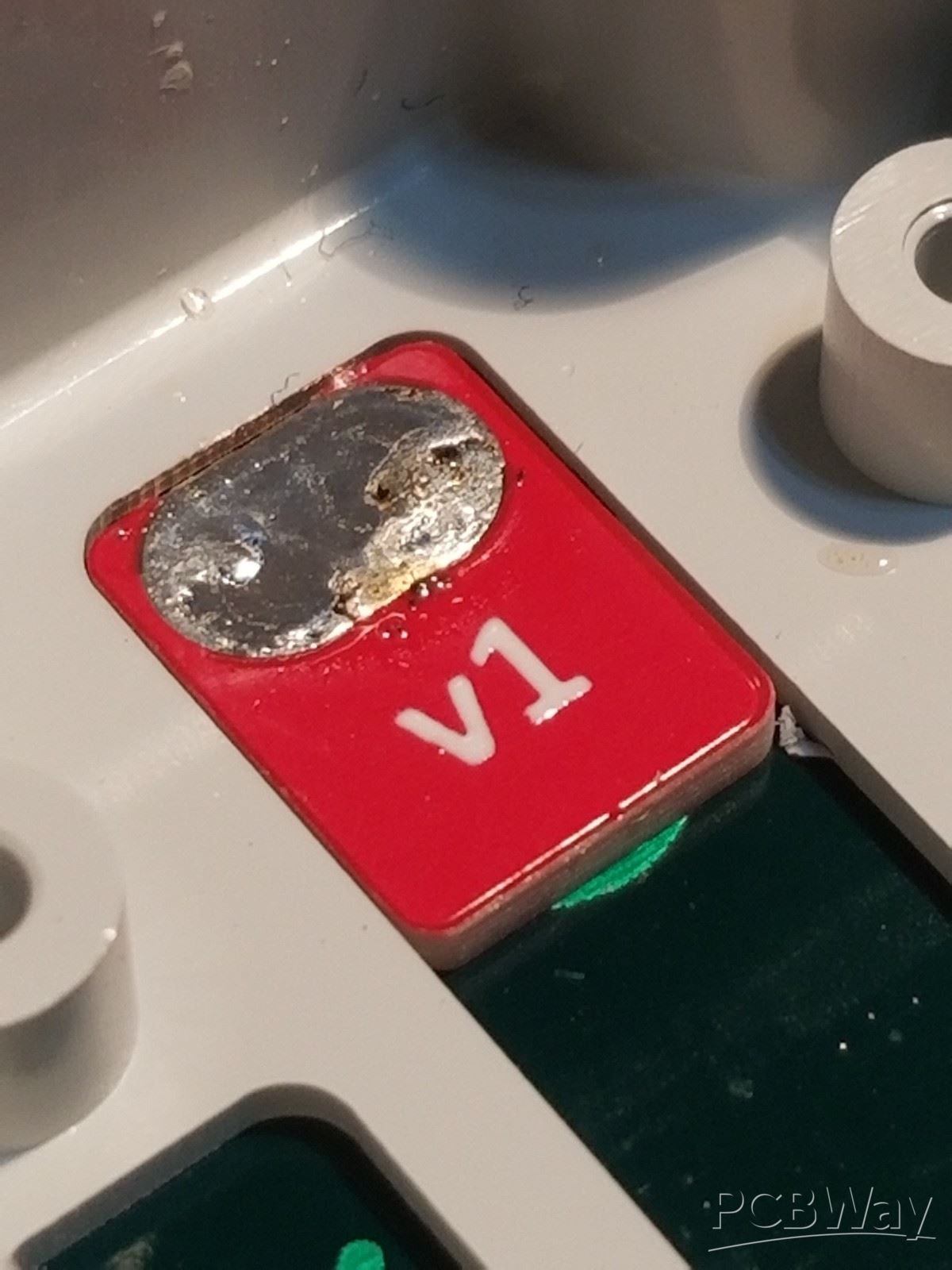

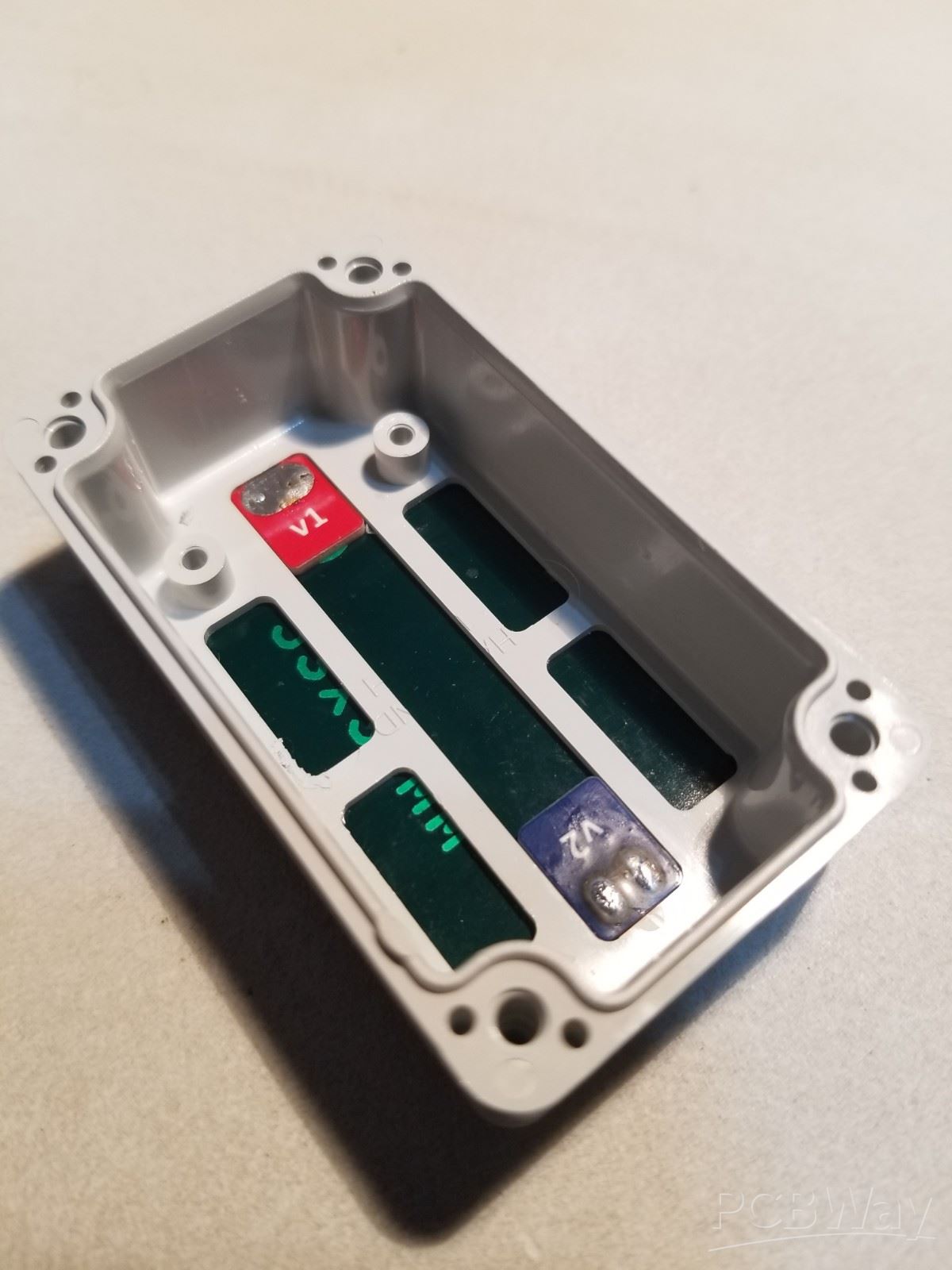

This PCB is a spacer that fits between the Solar Panel itself and the PV carrier board. It keeps the solder contained when soldering the PV connection so it doesn't travel under the edge of the box and lift the panel. This is a single hole version v1 - I also tried a double hole version v2 as well. They work exceptionally well.




May 27,2025
