PV Carrier Board - 1mm thick

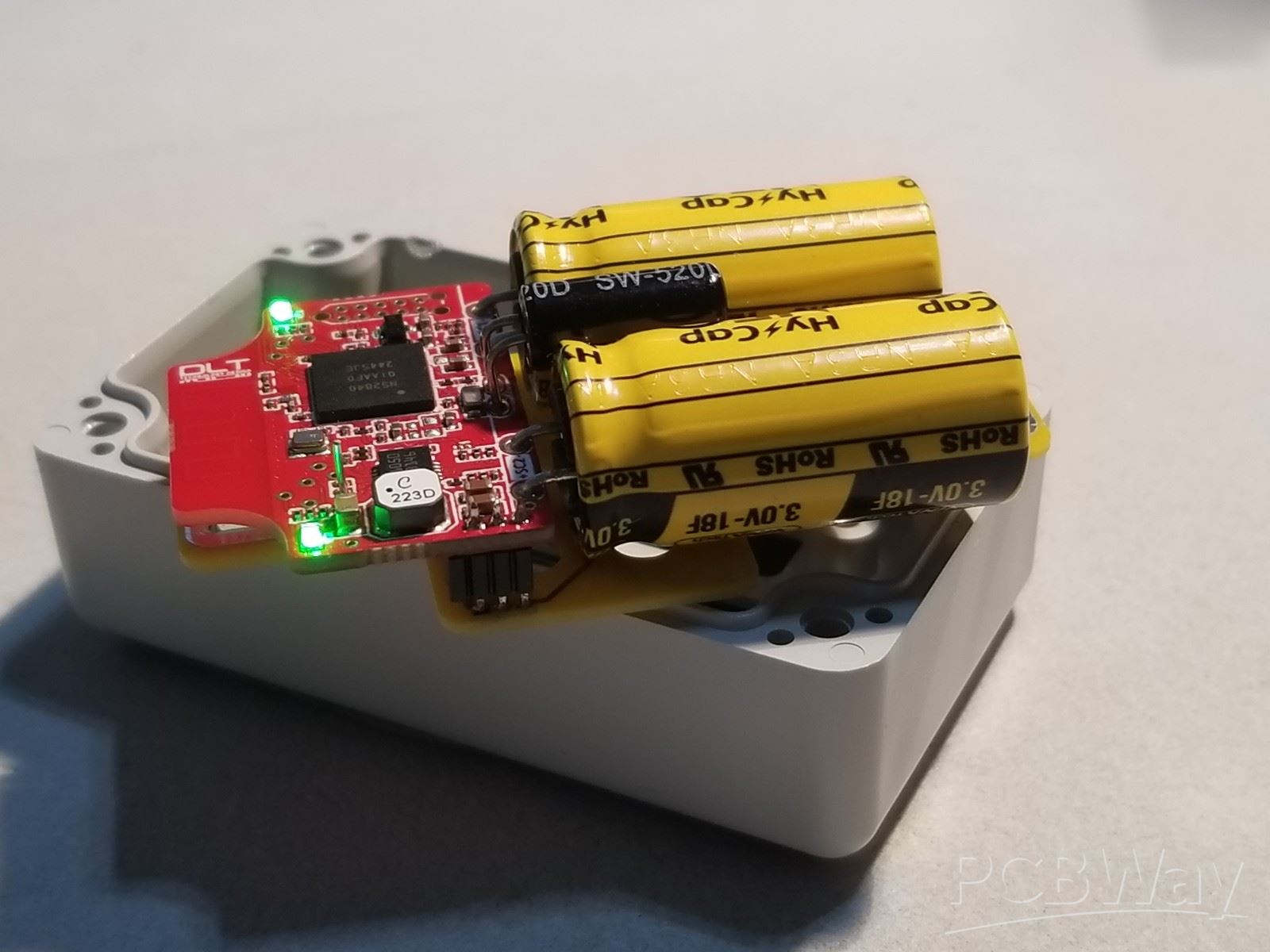

This PCB is used to support a Solar Panel that is recessed into an enclosure as photographed below. Just trialing a few different sizes to see what fits the best. A sensor on the board sits very close to the front of the box at a fixed location behind the PV.



May 27,2025
