PROJECT 104 pre amp mic

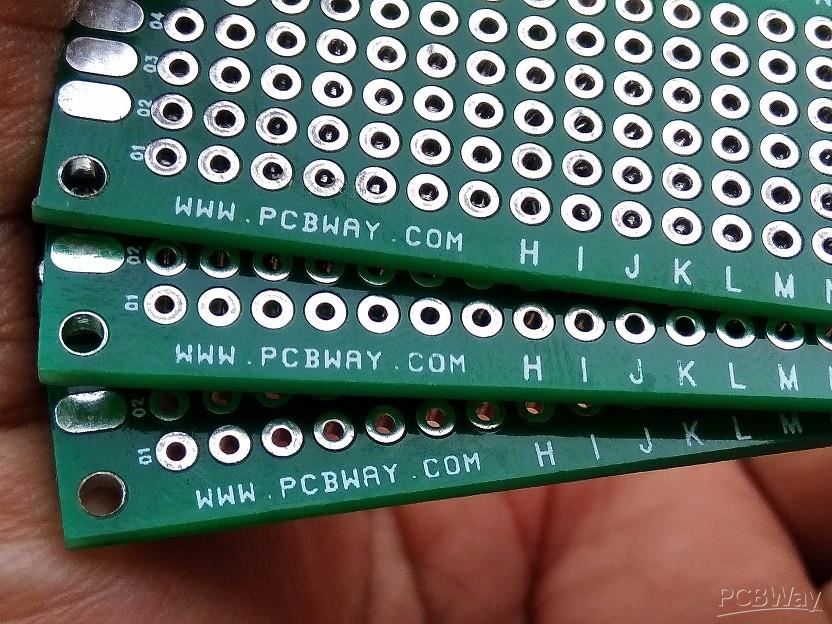

happy nu year 2019. happy anniversary.. almost 5 years still stay here. thanks for gift diy univ pcb. although the prices free but need cost for delivery. so i assume one piece prices are 5/3 = 1.6 usd. . MY PLAN create new modul from local preamp mic into high quality diy universal board. total area 9x7 cm. fit enough into medium box. add baterai. mixer volume and connector line out. easy to carry.. able to connect big jack mic or small jack mic. next time i will design mini intregated mixer wtih many input from mic line and other audio device



May 25,2019
503 viewsReport item
