PCBWay's 11th anniversary badge

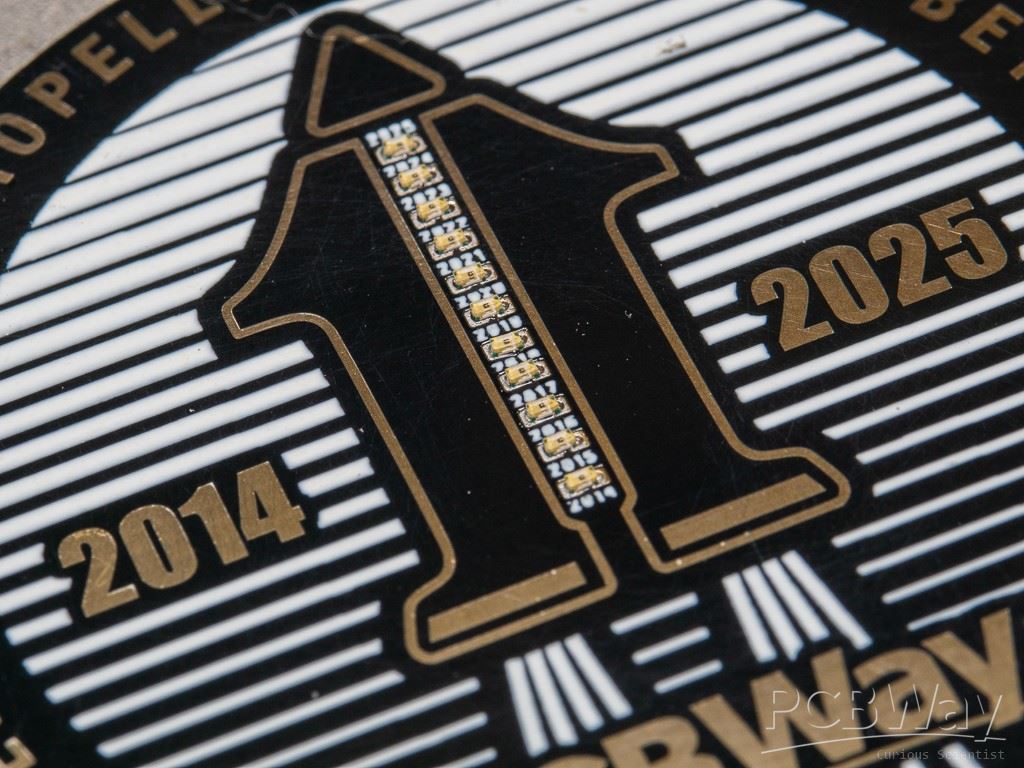

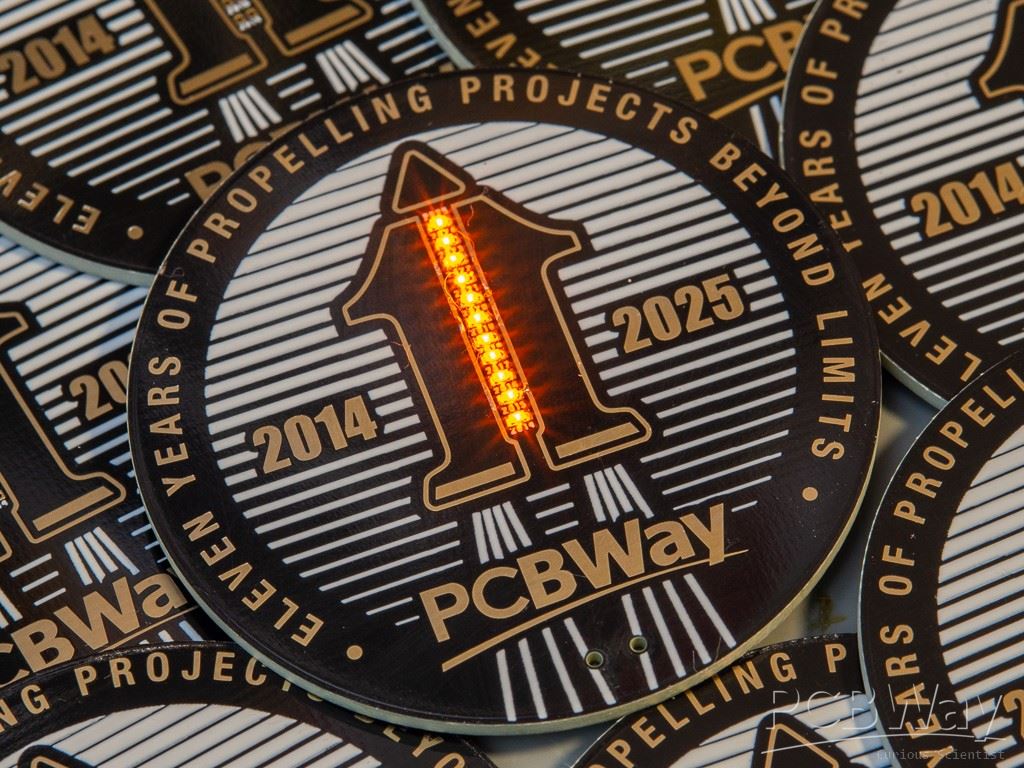

Everything went well and quickly with the order. The manufacturing went quickly despite the fact that I selected some extra features such as a black solder mask, ENIG surface finish, and I put the tiny vias in 0402 pads. All went well. The board looks great, and even the tiny graphical features stayed readable and clear. Very happy with the outcome.




Jul 08,2025
