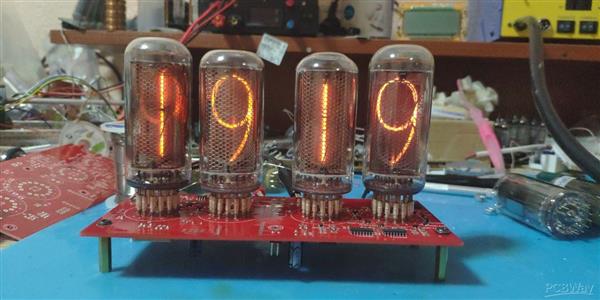

Nixie Clock IN-18 & ESP12(ESP8266) WiFi

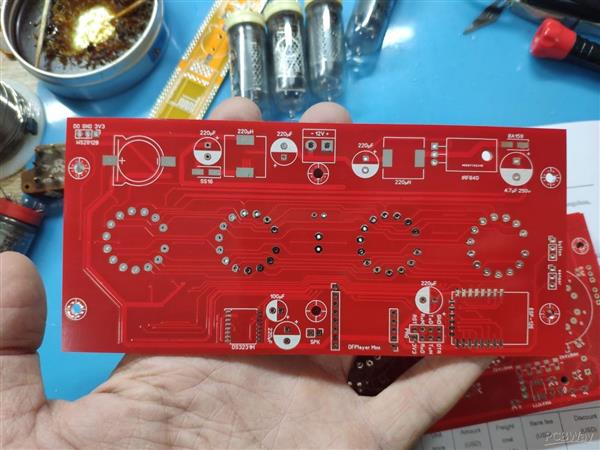

Печатная плата для сборки часы на ИН-18 ESP12(ESP8266) WiFi Current features are: network time and date synchronization 3 alarm clocks notification every 1H, 30m, 15m, 10m, 5m voice notification every hour support for human presence sensor (to turn off lamps) automatic and manual brightness adjustment control of 8 LEDs WS2812 control via web interface Additional information and firmware updates: https://vk.com/retromodding?w=wall-150130950_187 (Russian) http://kazus.ru/forums/showpost.php?p=1334608&postcount=52






Oct 21,2021
