Moustache guard

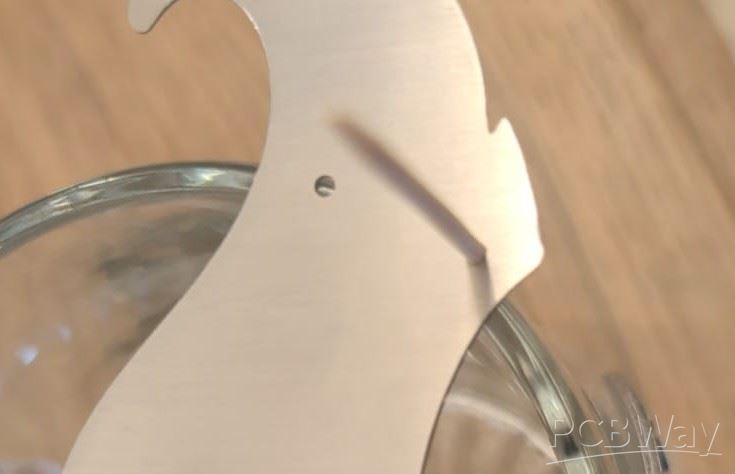

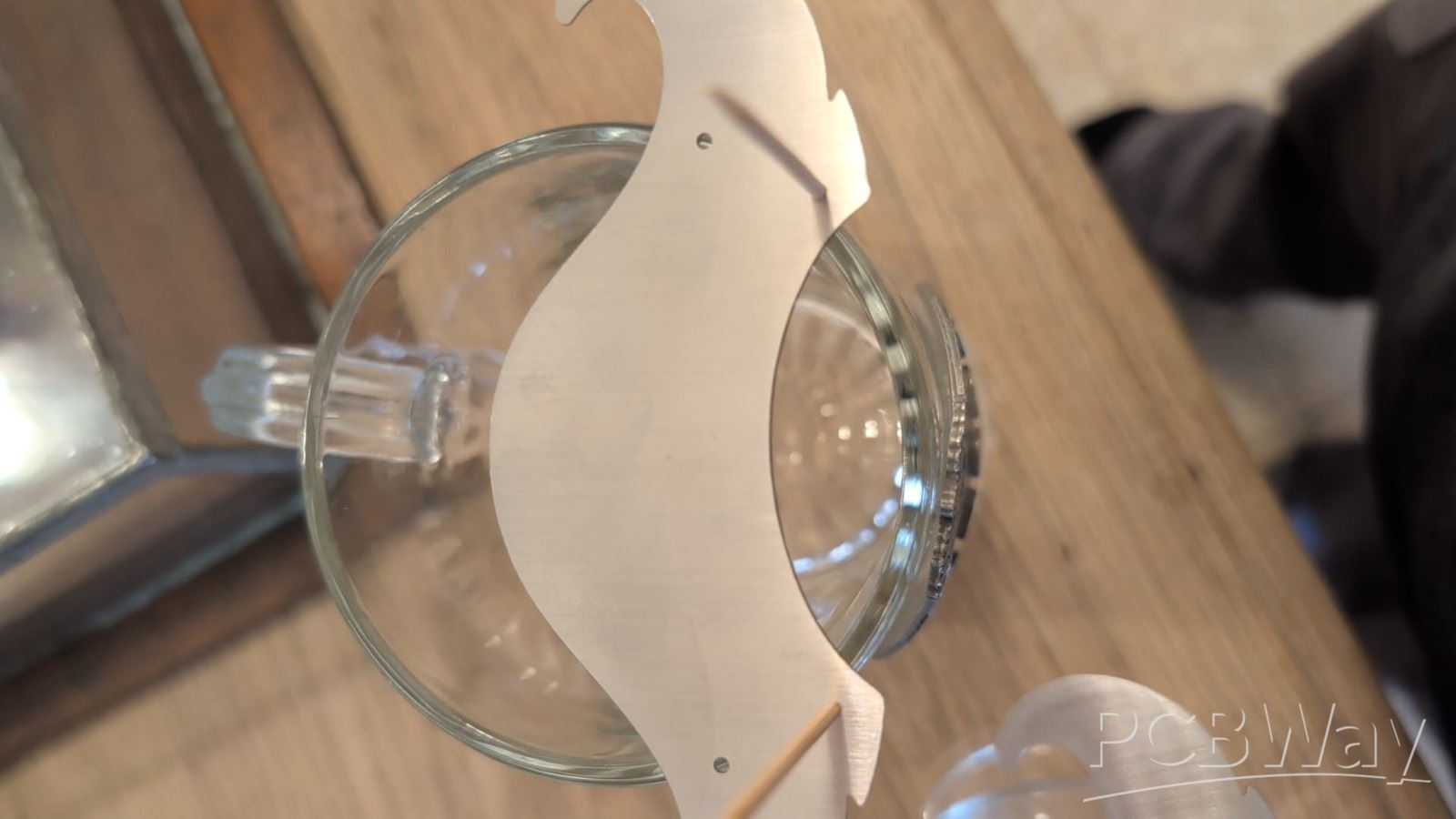

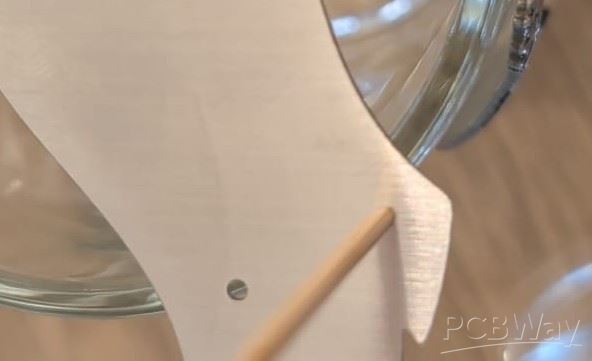

The parts arrived and overall they look great. I am very happy with the material, finish, and overall quality. However, I noticed that the two upper holes appear to be approximately 1–1.5 mm away from the positions I expected when fitting the part. Before I modify my DXF for a future order, could you please check the original DXF I submitted against the production/CAM data used to manufacture the parts and confirm whether the hole coordinates were changed or offset during manufacturing preparation? I understand that you cannot physically measure the parts since I have already received them. I am mainly trying to determine whether the difference comes from my original design/calculation or from the manufacturing process, so I can correct it before ordering a larger quantity. Thank you!




Sep 25,2026
