Miniature breakout PCB for the TCD1304 Linear CCD

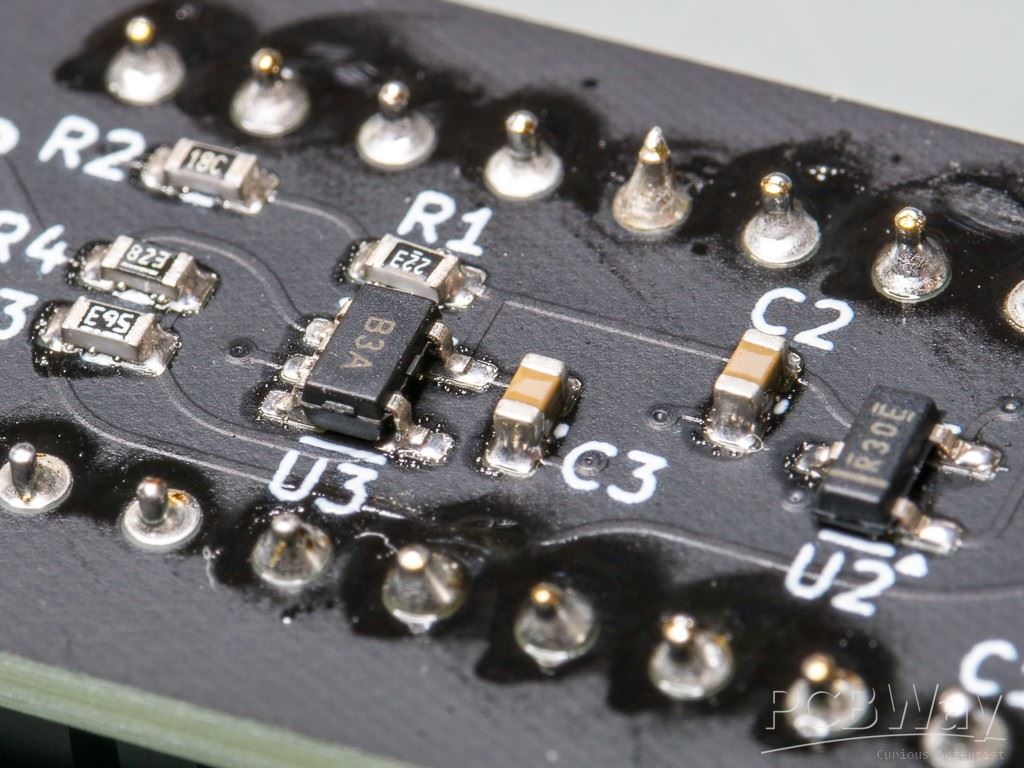

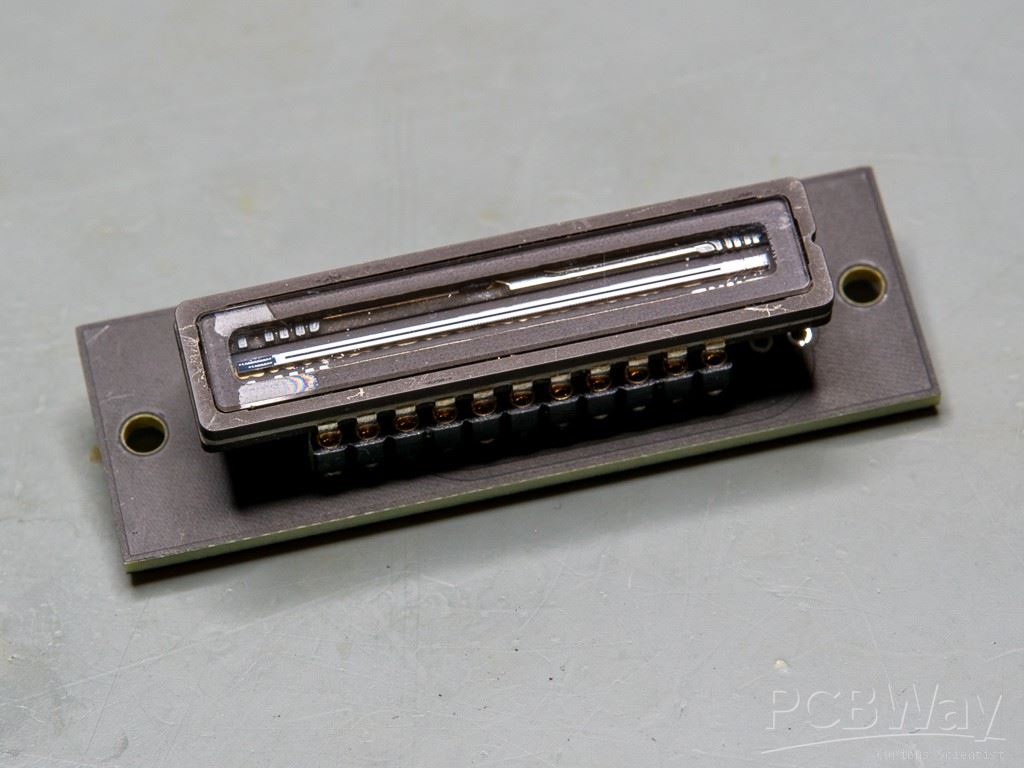

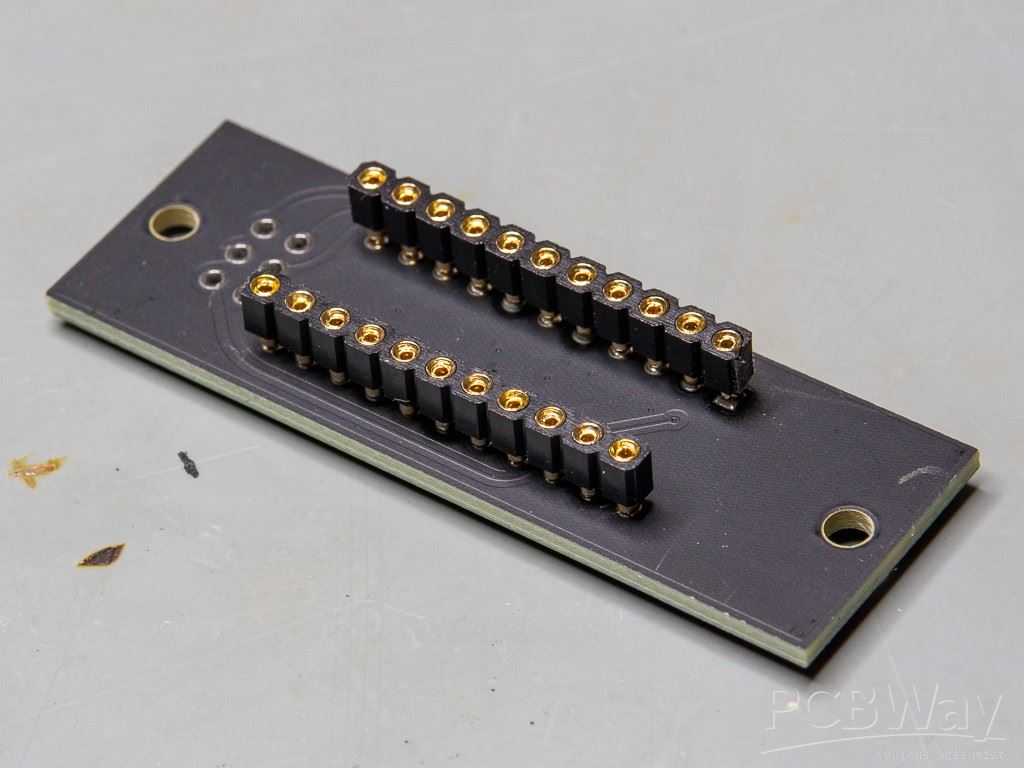

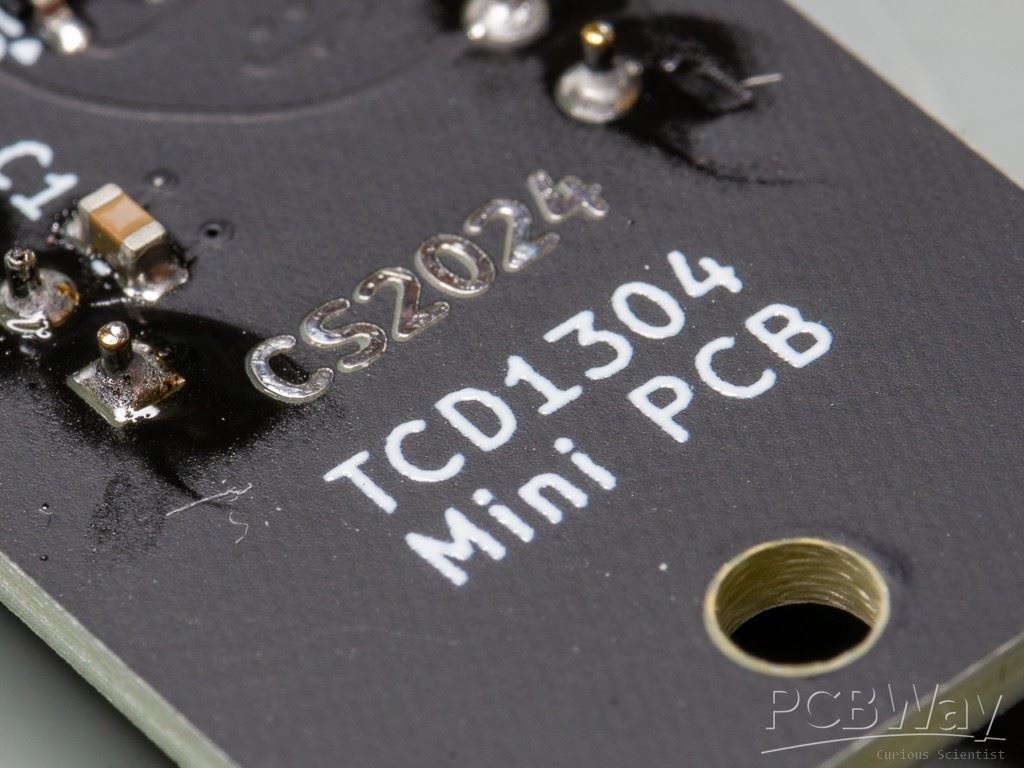

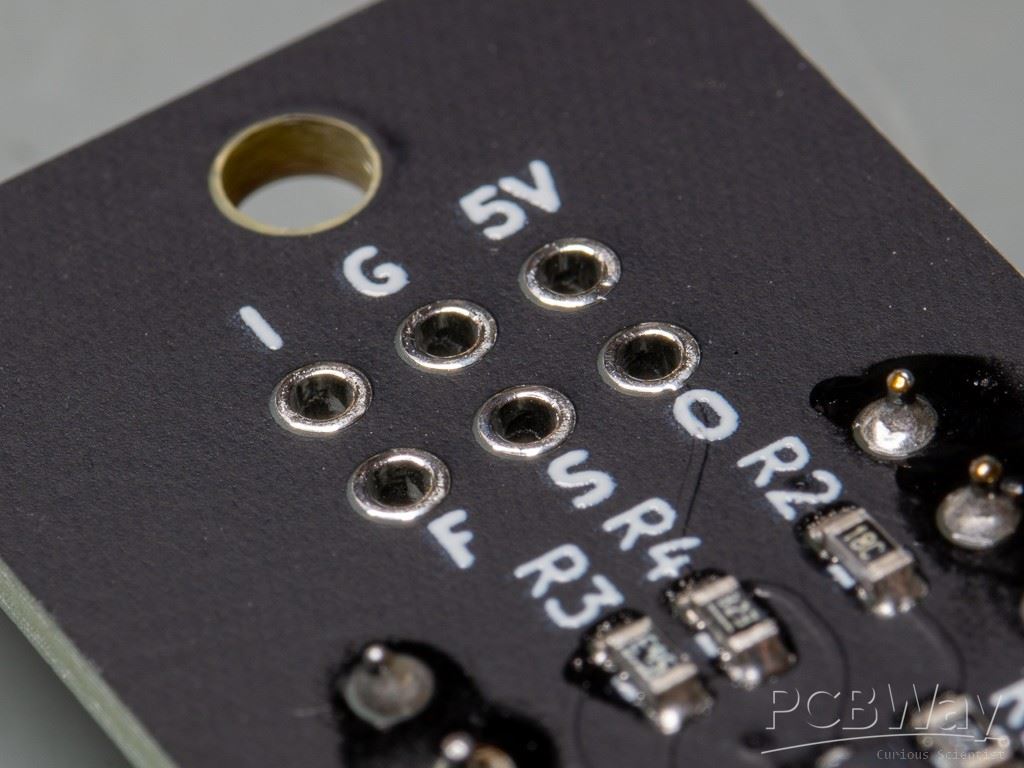

I designed this miniature PCB to allow mounting and placing the TCD1304 linear CCD independently from its driver microcontroller. The board is designed to be produced in matte black colour to minimise stray reflections. The colour turned out to be great. Tolerances are well kept, and the production quality is good.







Jul 08,2025
322 viewsReport item
