Miniature 2-channel voltmeter

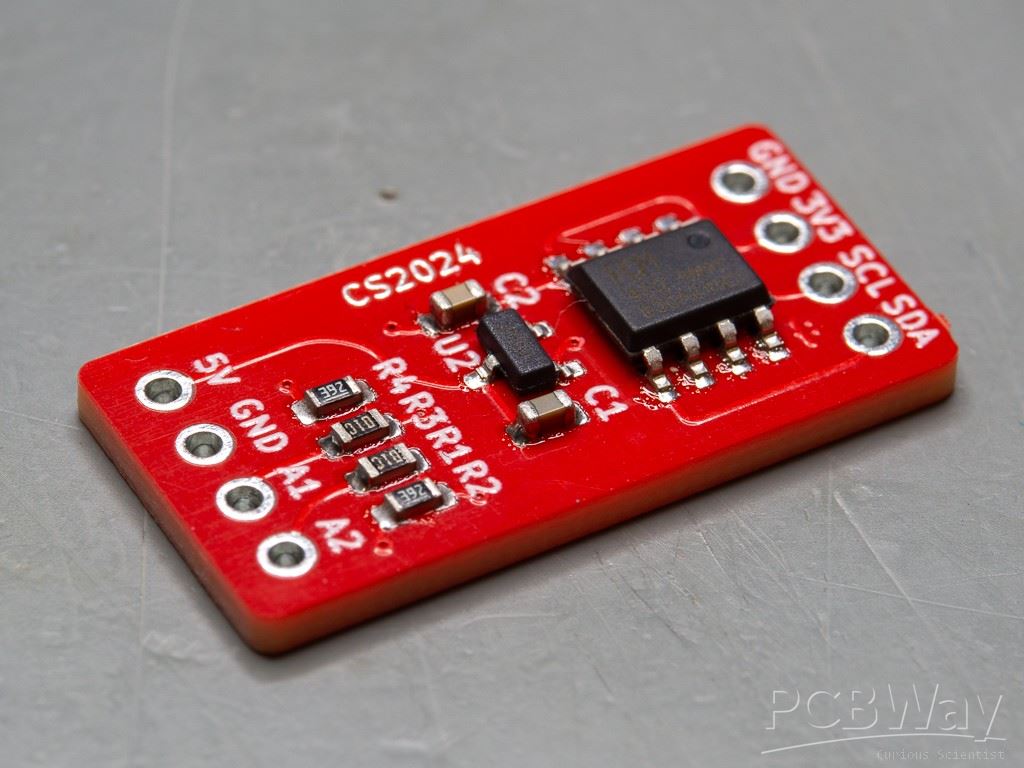

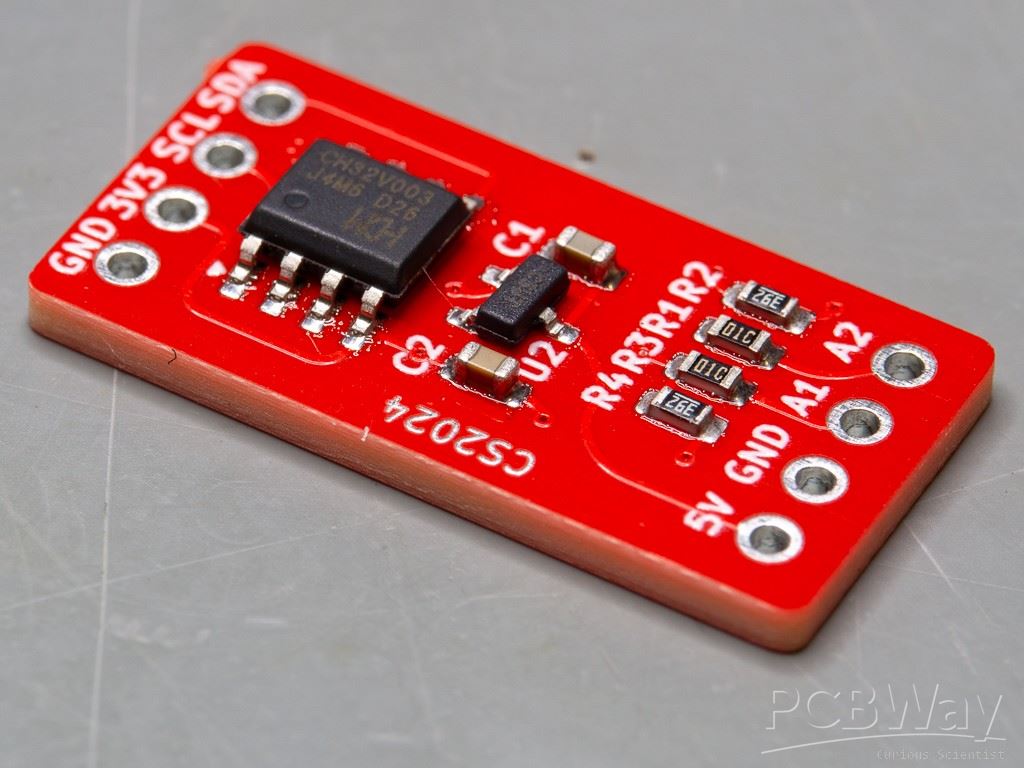

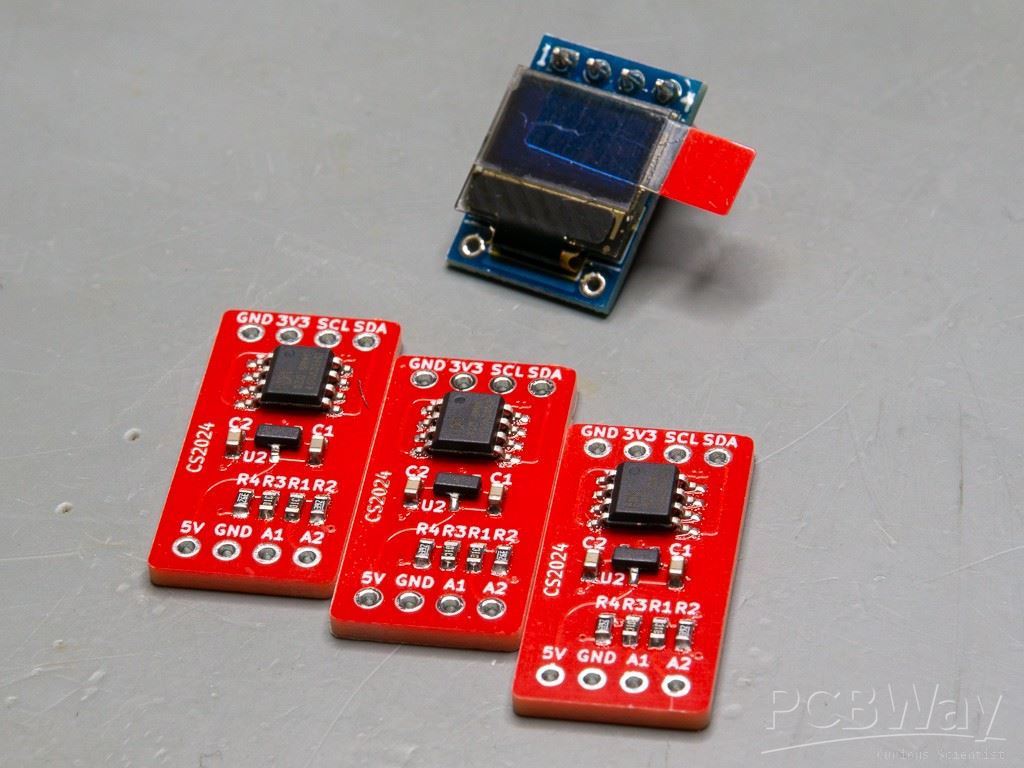

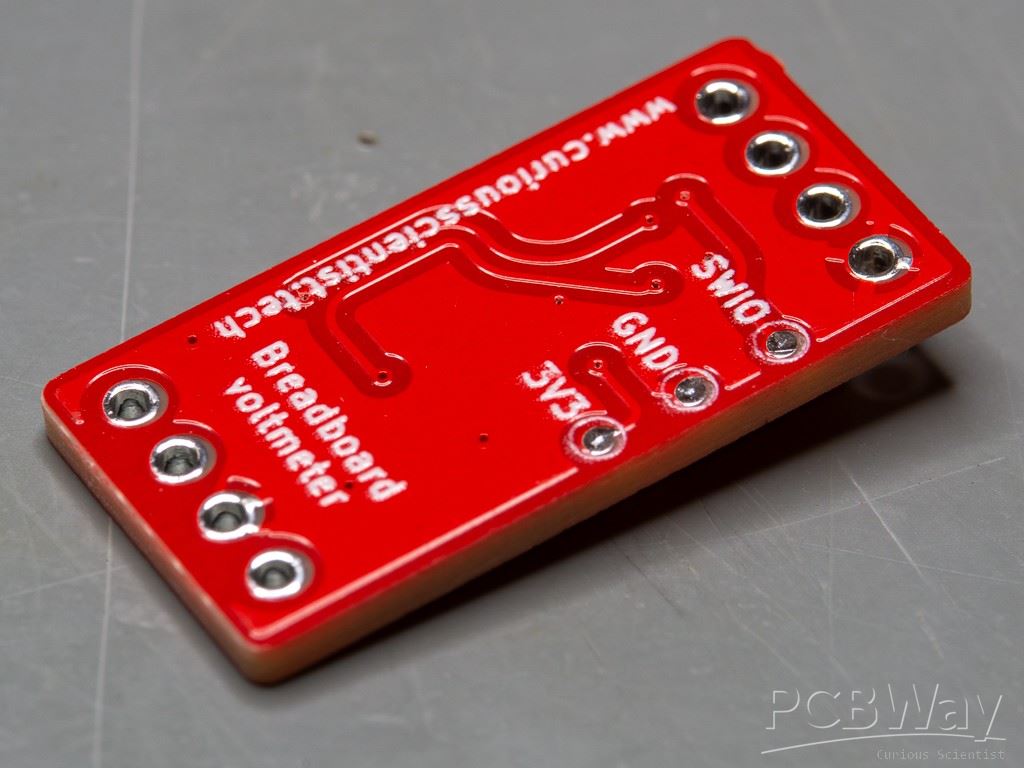

I designed this PCB to build a miniature voltmeter specifically designed for breadboards. The PCB is rather simple, but still, all the criteria were fulfilled. Dimensions are tightly matching the drawings and the board quality is excellent. The small silkscreen text is still readable and has a great contrast with the red solder mask. Thank you.






Jul 08,2025
203 viewsReport item
