MidiWoush Frontplate

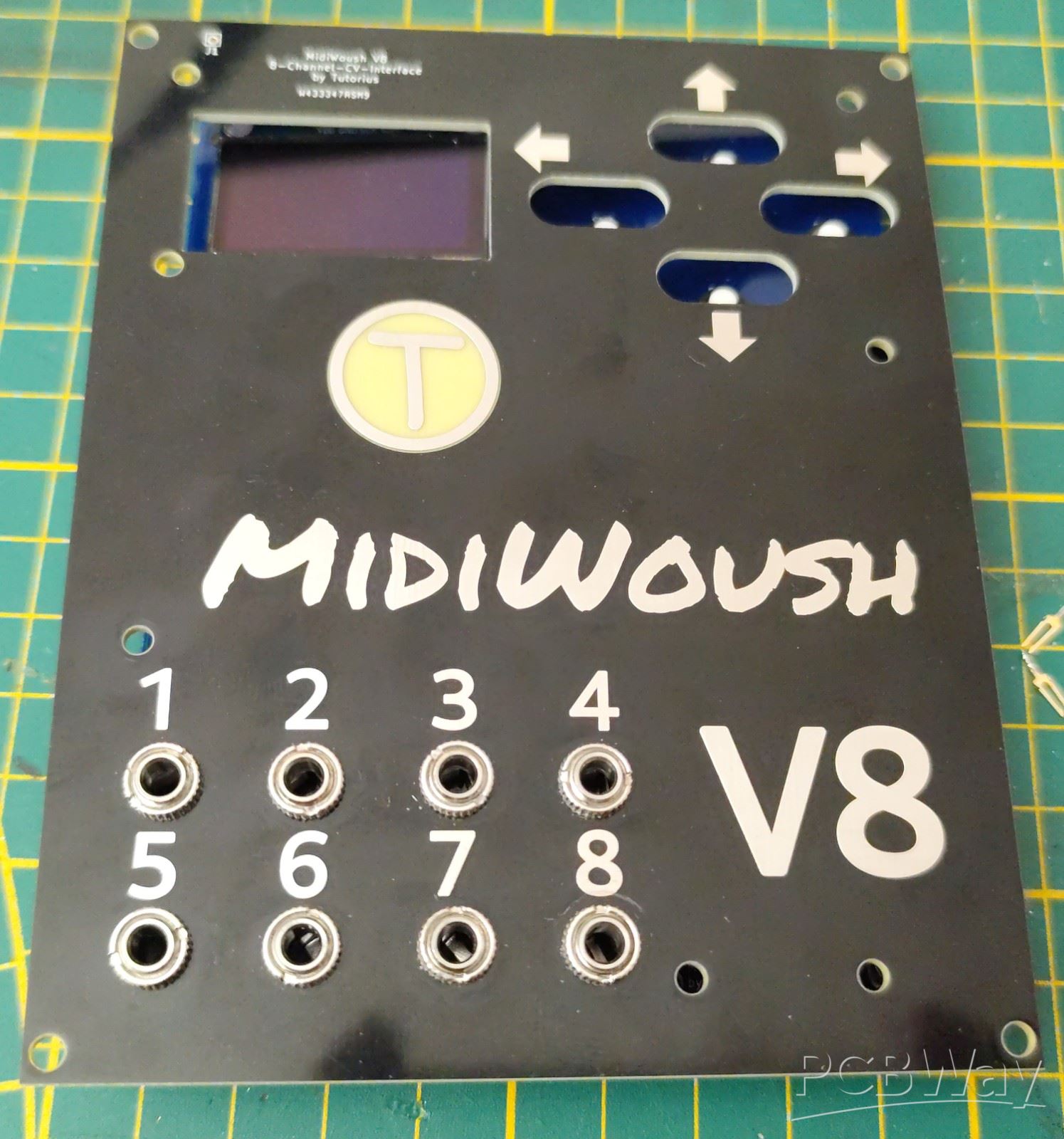

I have created a frontplate for a Moudle for a modular Synthesizer, and it looks really, really perfect... The quality of the letters, created from copper that is tin-covered, no comparison to my 3D-printed version. I don't think any 3D-printed version can match this feel of a PCB-frontplate. The Tutorius-Logo is copper and soldermask-free in some places, so the RGB-led of the ESP32 lights it well. Not long and my project is ready to be part of the Open-Source-part of PCBWay... :)



Aug 02,2025
214 viewsReport item
