Magnetic shunt holder for LLC resonant transformer

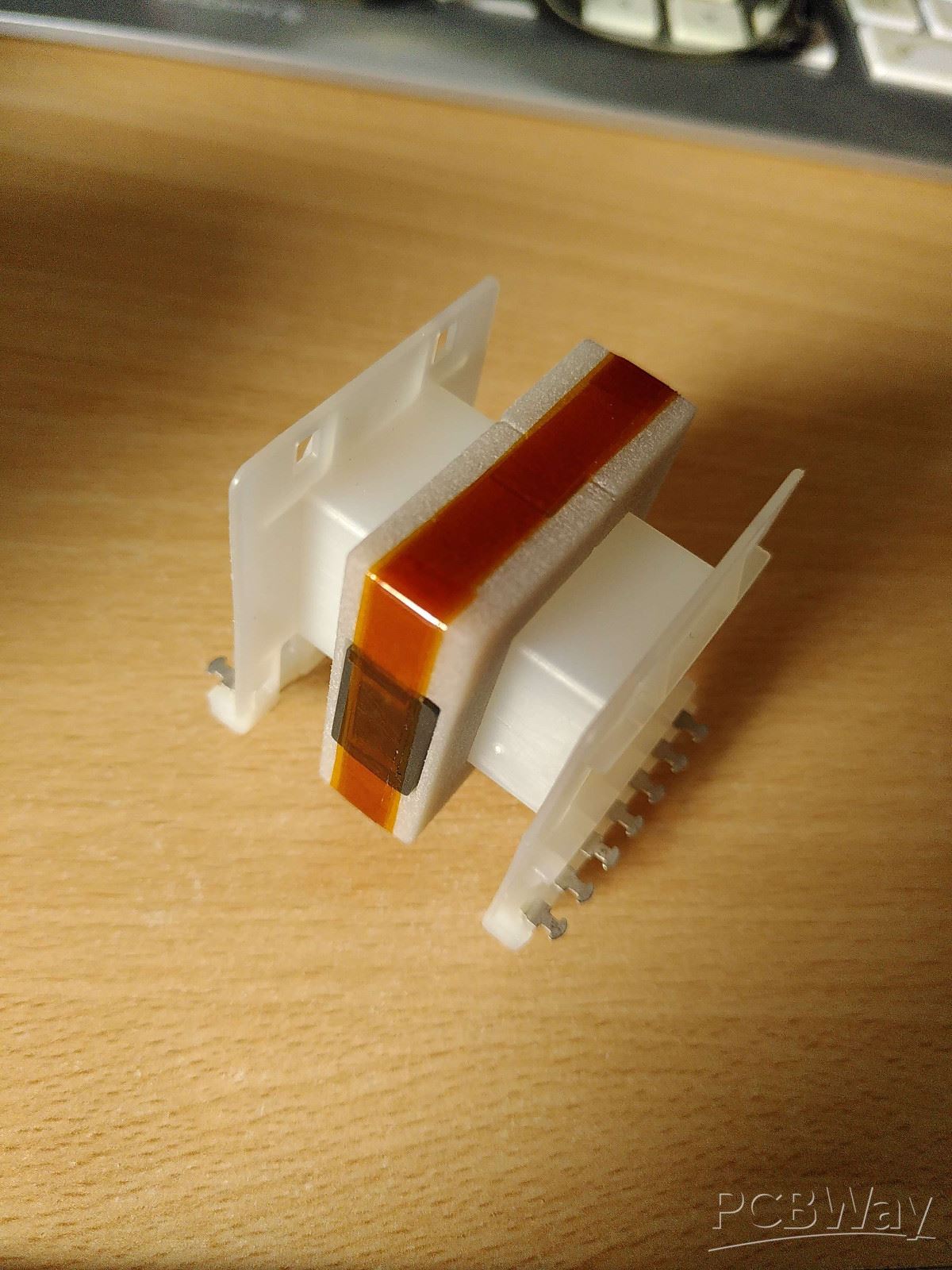

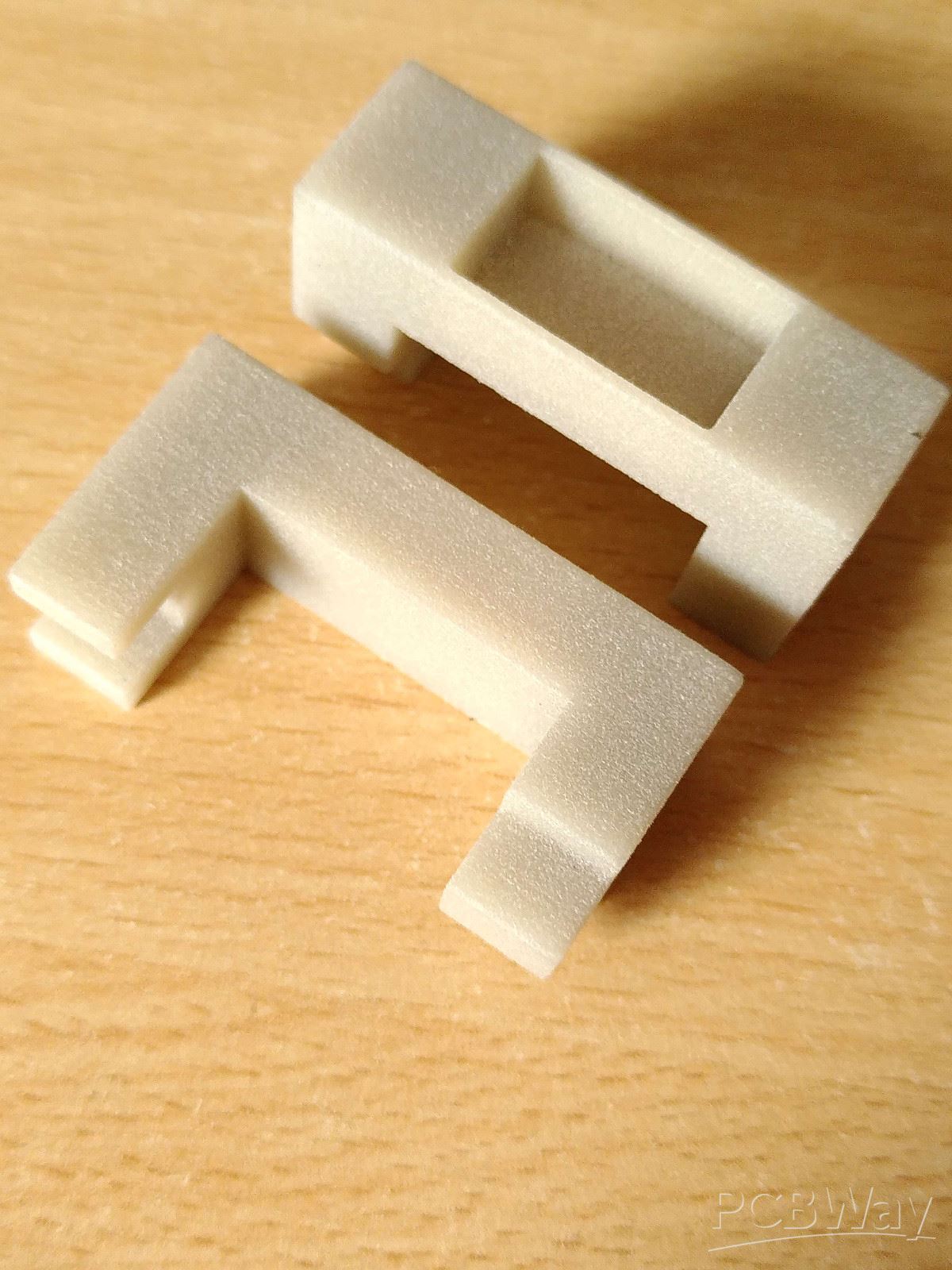

I'm designing a LLC resonant power supply at the moment and needed a custom transformer with a magnetic shunt path in it, so I designed this holder to add some additional pieces of ferrite between the windings on a commercial coil former. The transformer can run quite hot (up to 100°C), which is why I let PCBWay print the parts in PA-GF. I'm really happy with the results! The tolerances are great (<0.1mm) and I got the parts super quickly! :)




Jul 15,2025
