Lucas

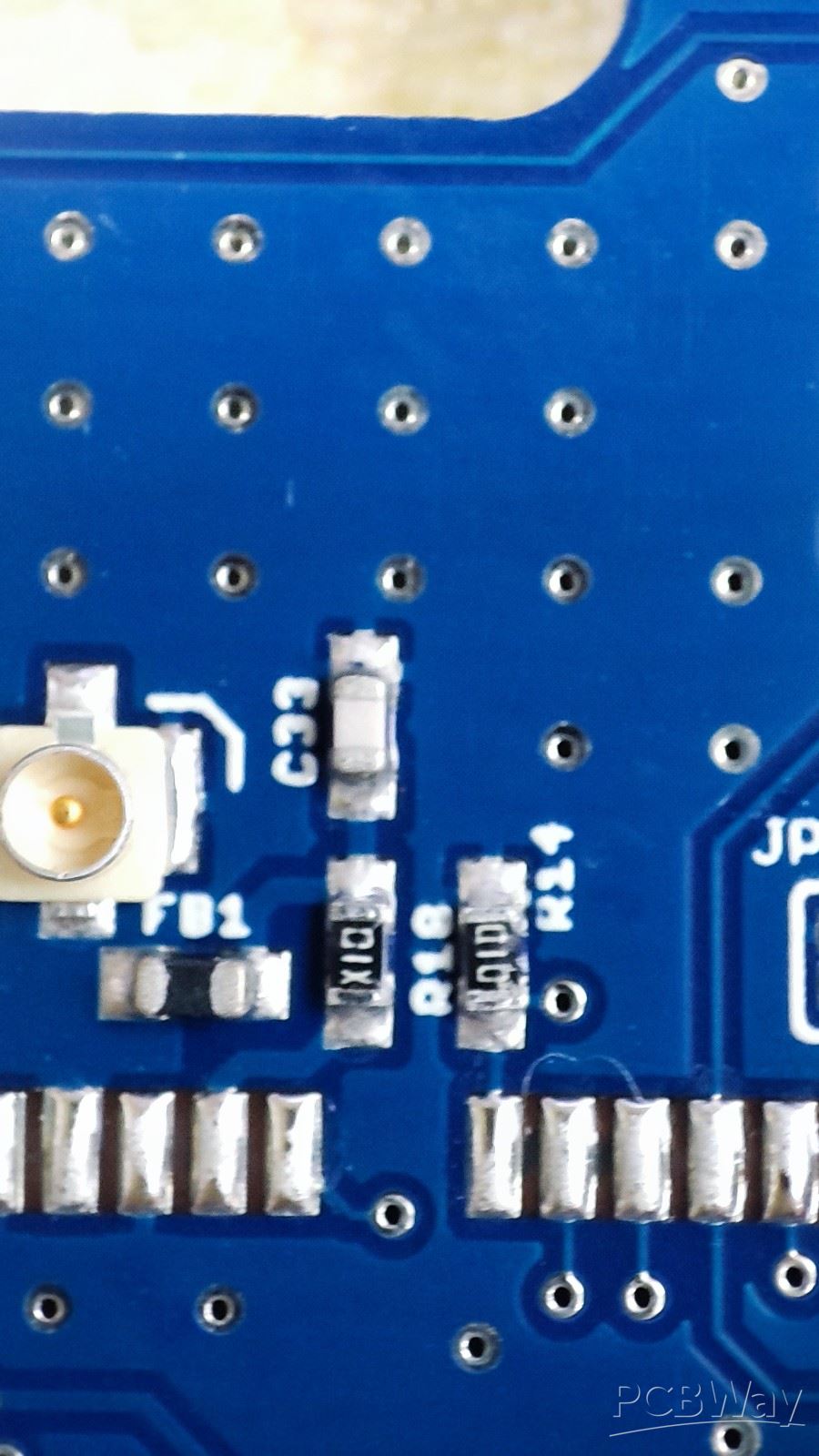

Hello, how are you? Firs ot all, the boards are very nice The quality es very good. But, with me team, we noticed that some resistors, when we test them, show differents values. For example, the resistors R60, R44 and R14 (refer to the bom list) we are not sure if you use a 100KOHM resistir. I've seen the datasshet of 0603WAF1003T5E and I can not read the same code in the resistor that is on the board. Could you help me, please? The resistors values are very important for us in some cases. I attached som pics so please, help me to understand how read the resistor value.



Sep 07,2023
80 viewsReport item
