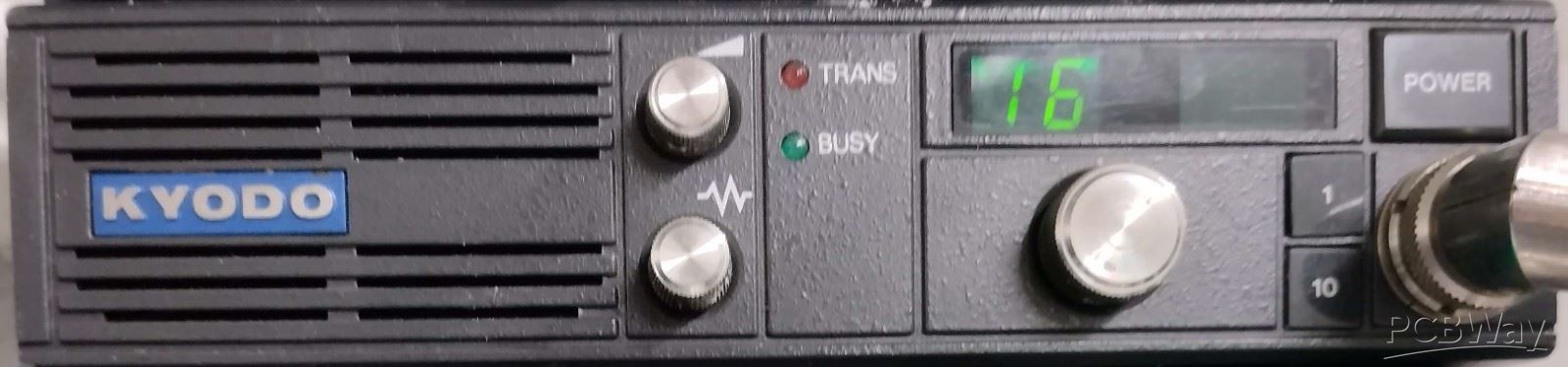

Kyodo PLL-controller

PCB replaces EPROM for 16 channel use to full support ham-radio 145 MHz or 435 MHz. Programmed in oldschool assembly. With: - raster 6,25 12,5 25 kHz - ctcss tones to open repeater - 144 MHz to 146 MHz - repeater shift control - listening on input repeater





Jun 10,2025
