Handheld Button HAT for Raspberry Pi

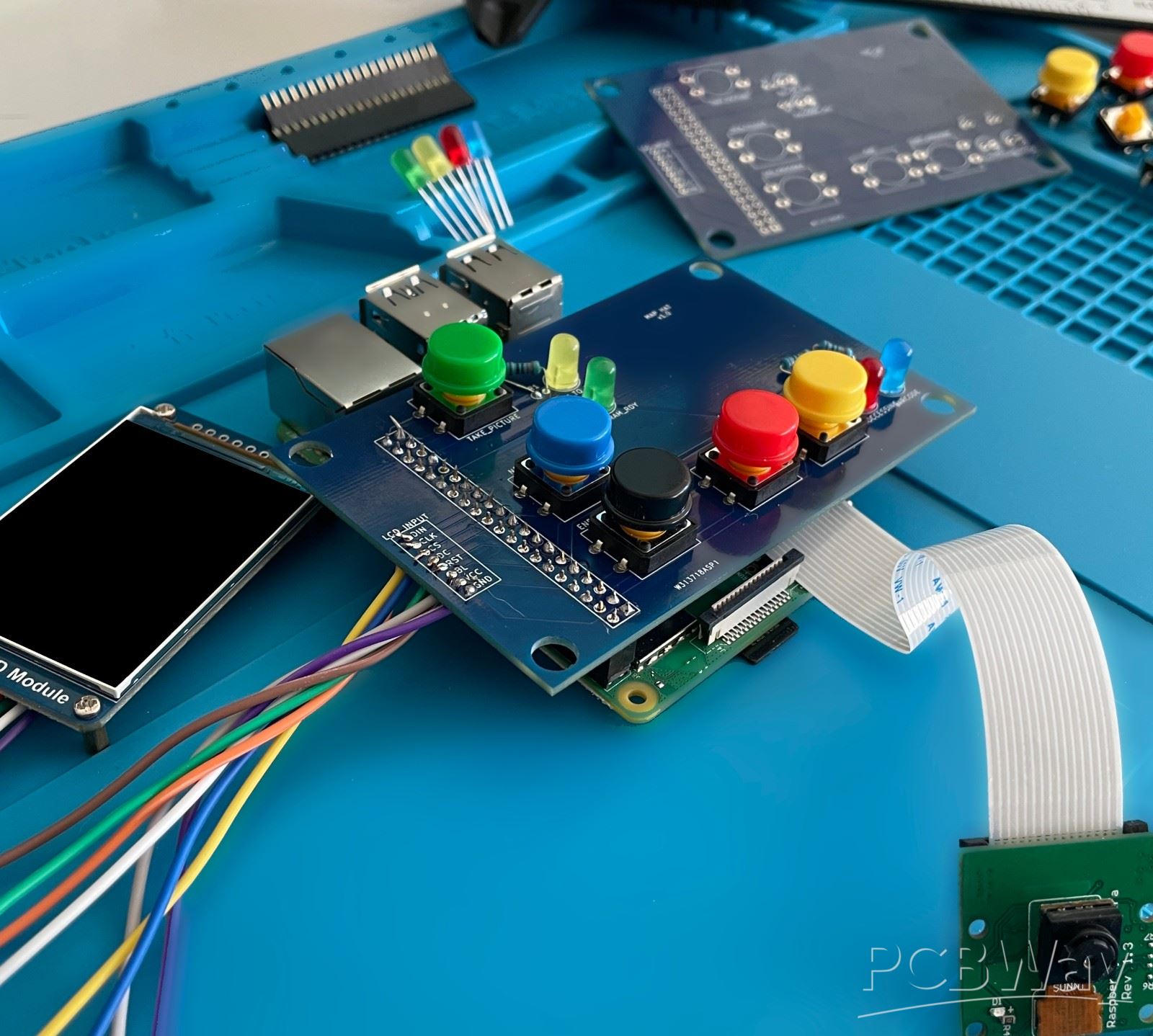

This was my first time designing and ordering my own custom PCB - despite no prior experience in electronics or PCB design. I was completely surprised by how perfect each of the PCBs ended up being (one of them I used as a test bed for trying to solder for the first time ever too). I have attached an image of the end result of the electronics - all buttons and LEDs working on the first try was an awesome experience. Thank you!
