Engine Connector V1.00

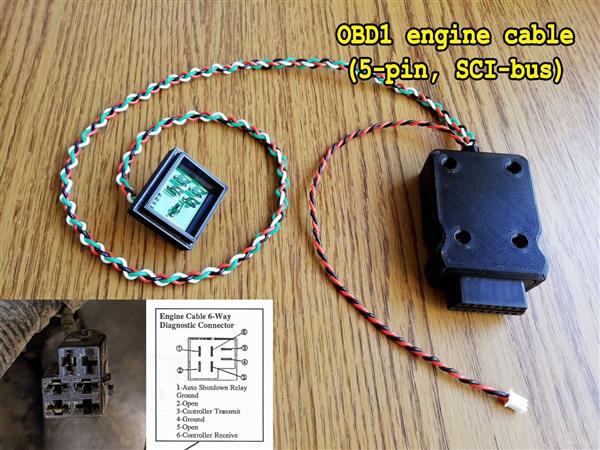

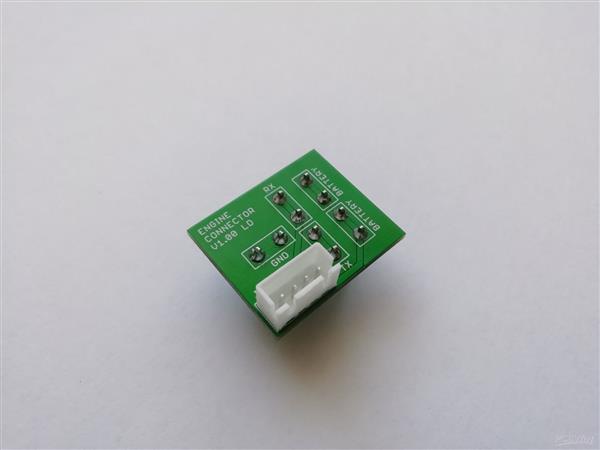

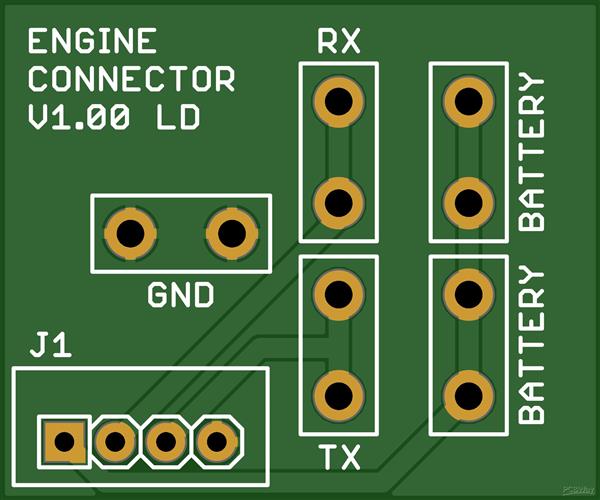

First introduced along with Chrysler CCD/SCI Scanner V1.42 this small PCB allows the user to interface with an OBD1 diagnostic connector (SCI-bus) used in pre-1996 vehicles made by Chrysler/Dodge/Jeep. A new V1.01 version has been designed and will replace this version. It has bigger pads around the drills and the 4-pin connector has different pinout (+12V and GND replaced for better routing).








Nov 21,2019
