ESP8266 IO board (for education)

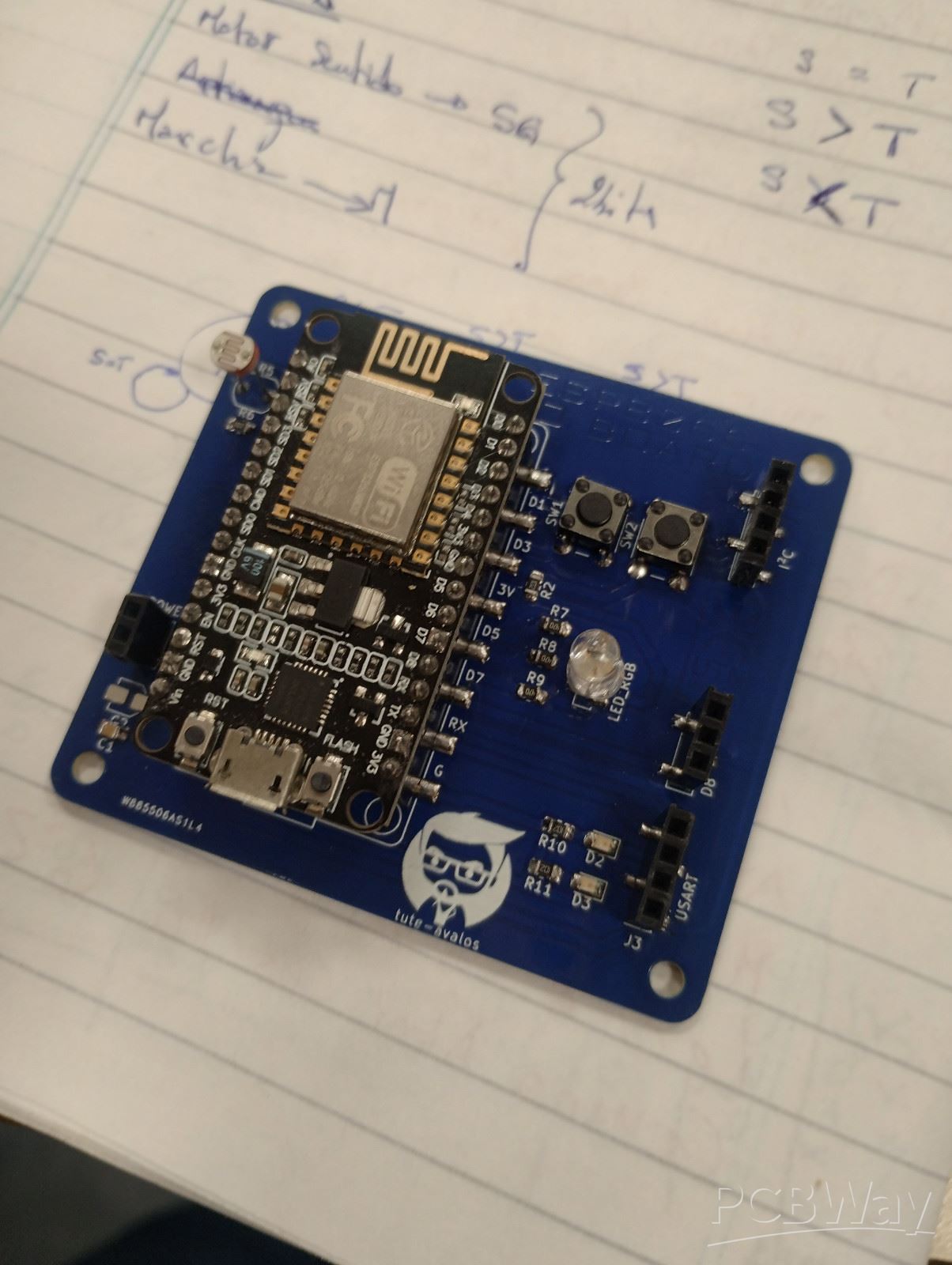

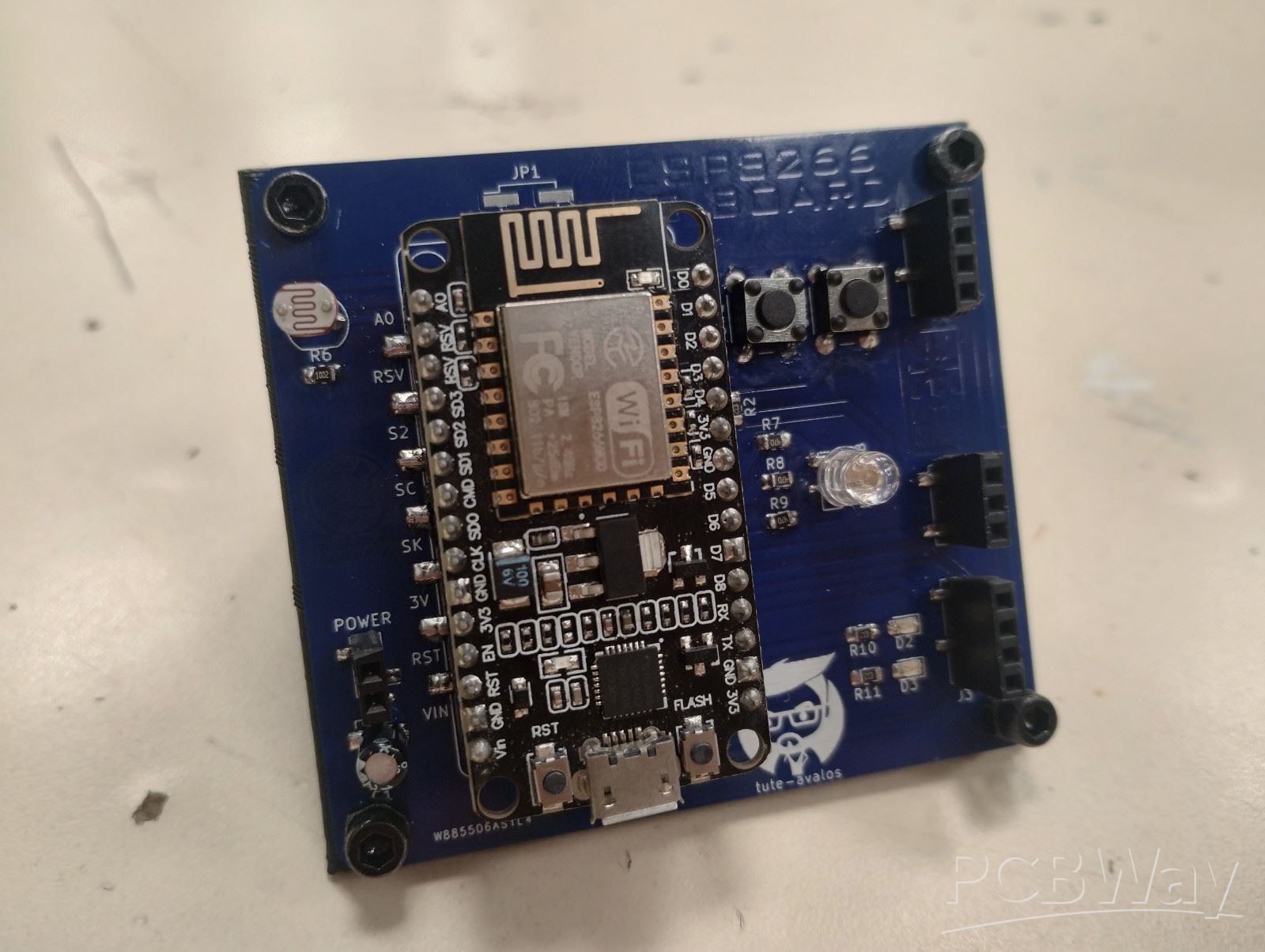

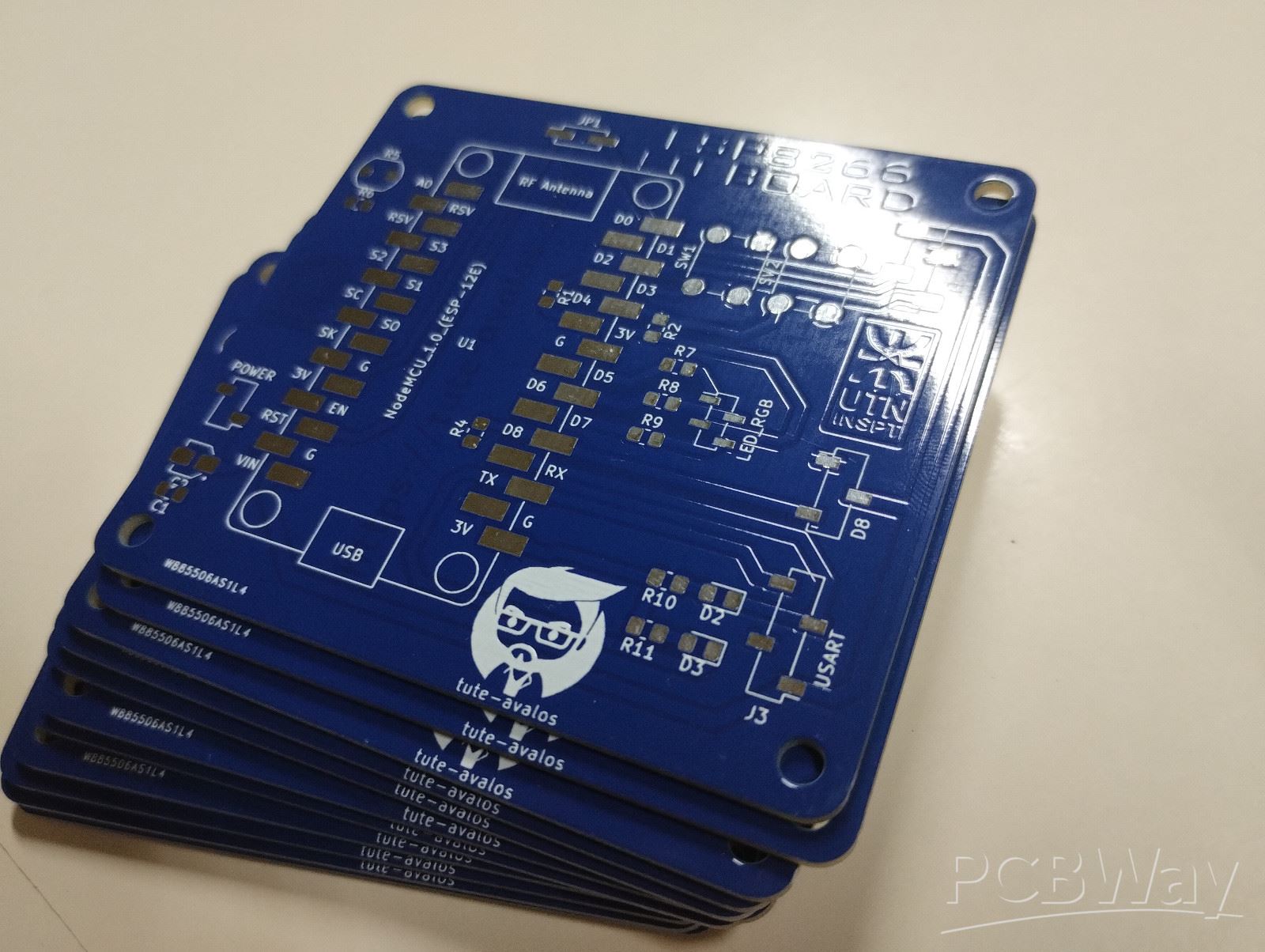

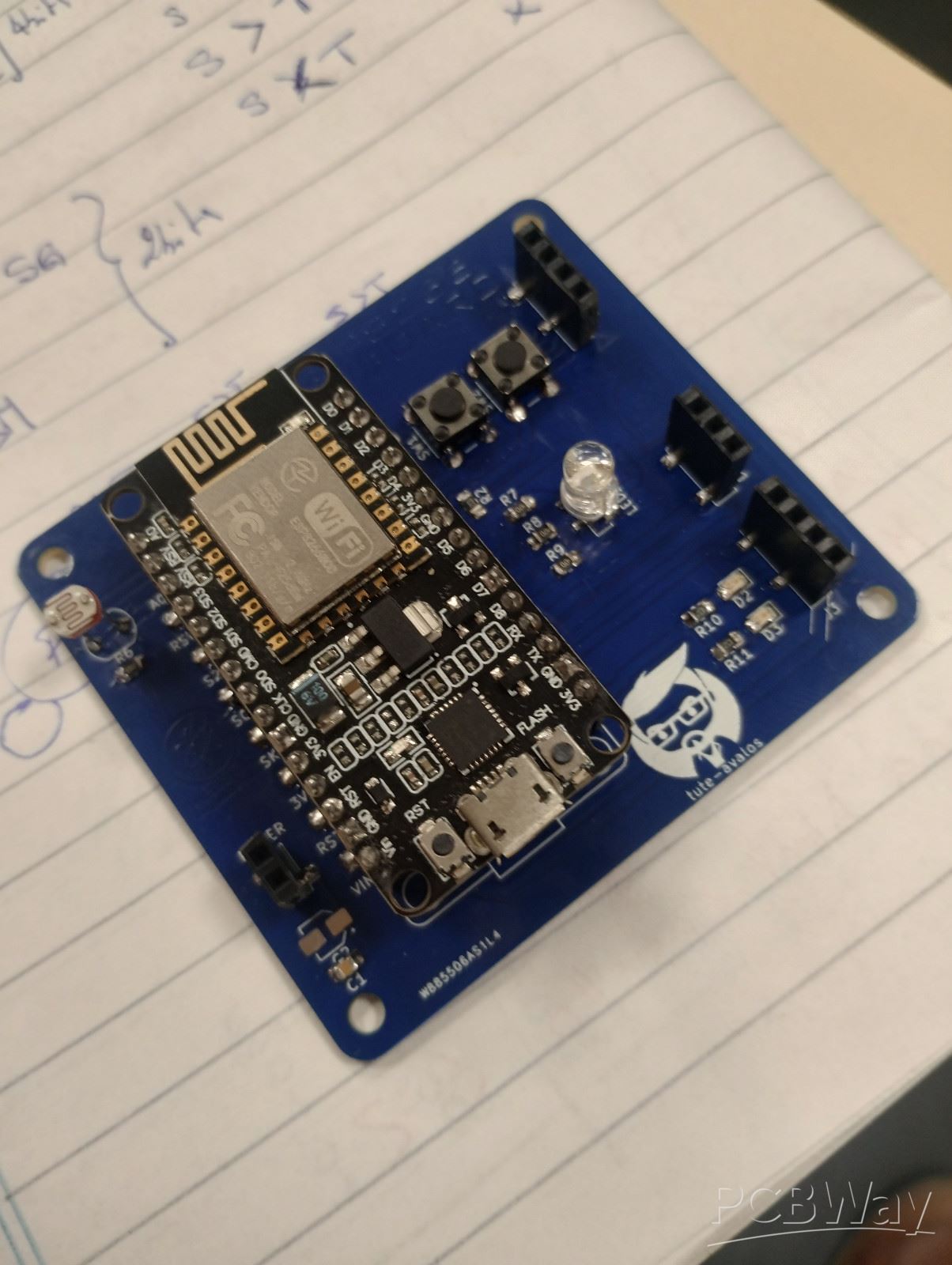

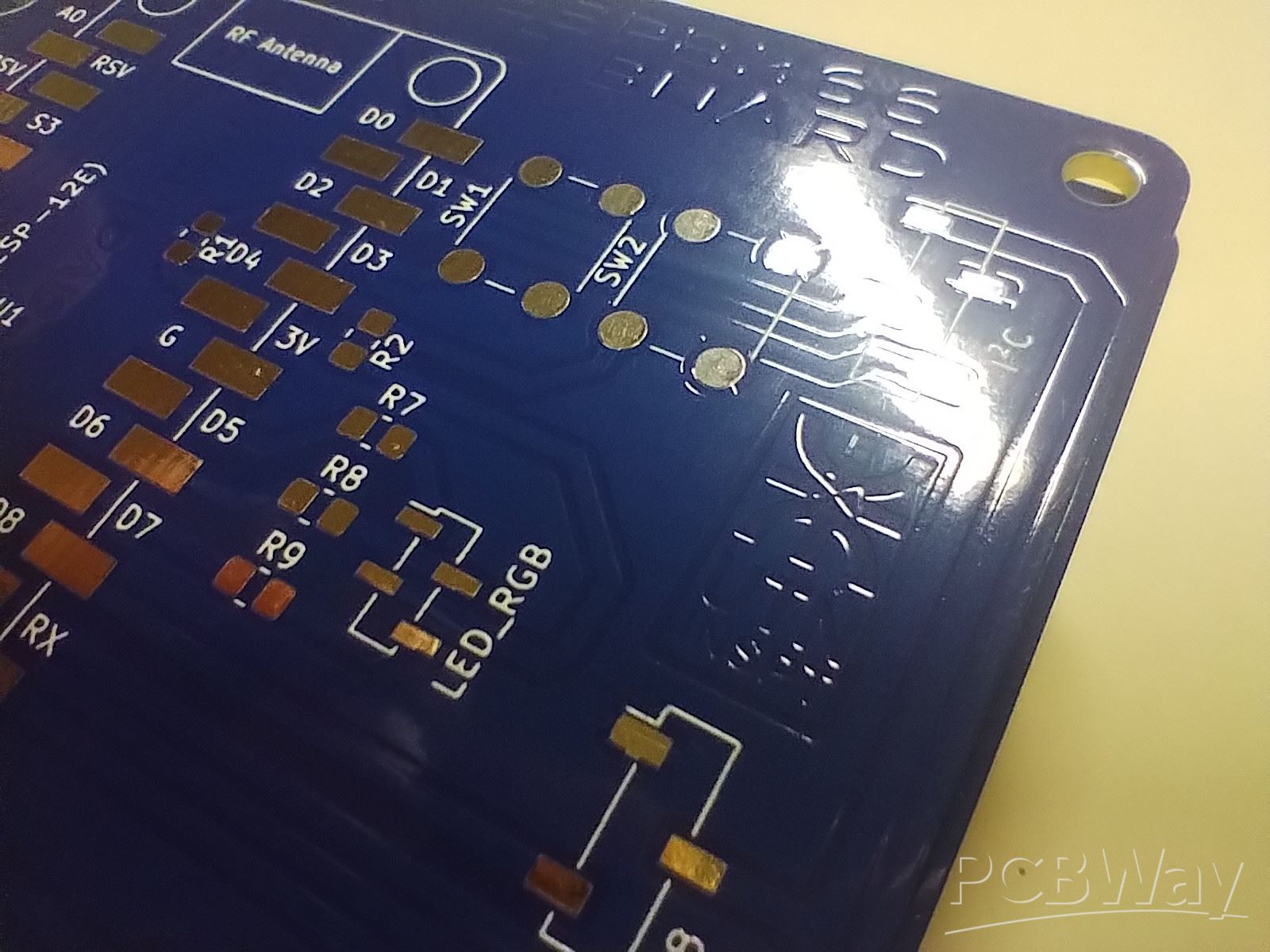

This PCB was designed to be used in educational environments for teaching and learning about embedded systems programming and IoT applications. The board is based on the NodeMCU (ESP-12E) module and includes simple peripherals such as push buttons, LEDs, headers, and a photoresistor, which makes it very useful for students to quickly prototype and test different ideas. I am extremely satisfied with the outcome provided by PCBWay. The boards arrived with excellent finishing quality: the silkscreen is clear, the solder mask is flawless, and the dimensions are precise. The manufacturing time was very fast, and the overall cost is very affordable, which is especially important for educational projects. PCBWay’s service is highly professional and reliable, making it easy to bring designs to reality. I would definitely recommend their service to anyone working on educational projects or personal prototypes.







Sep 18,2025
