EPCOT Ball

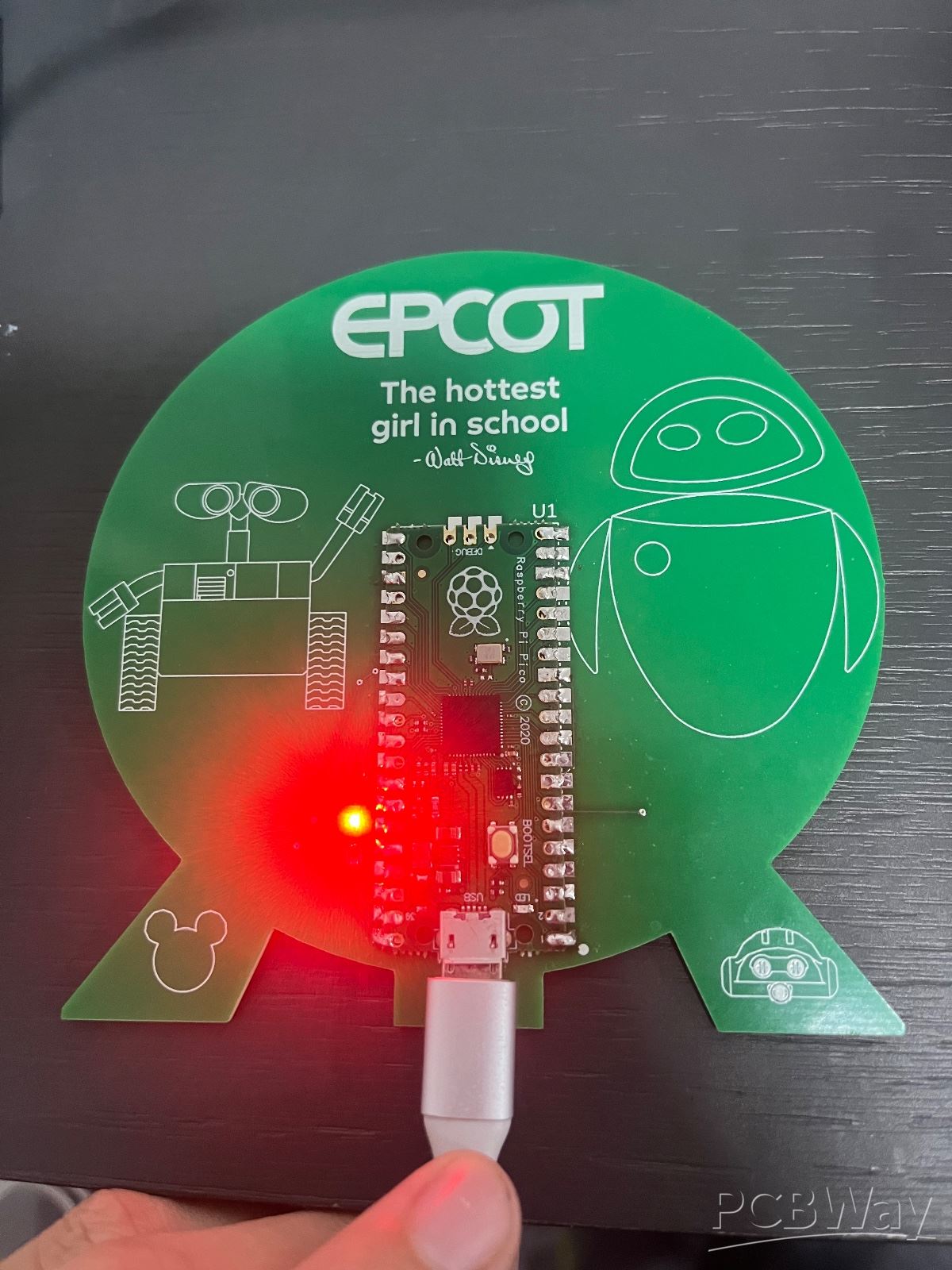

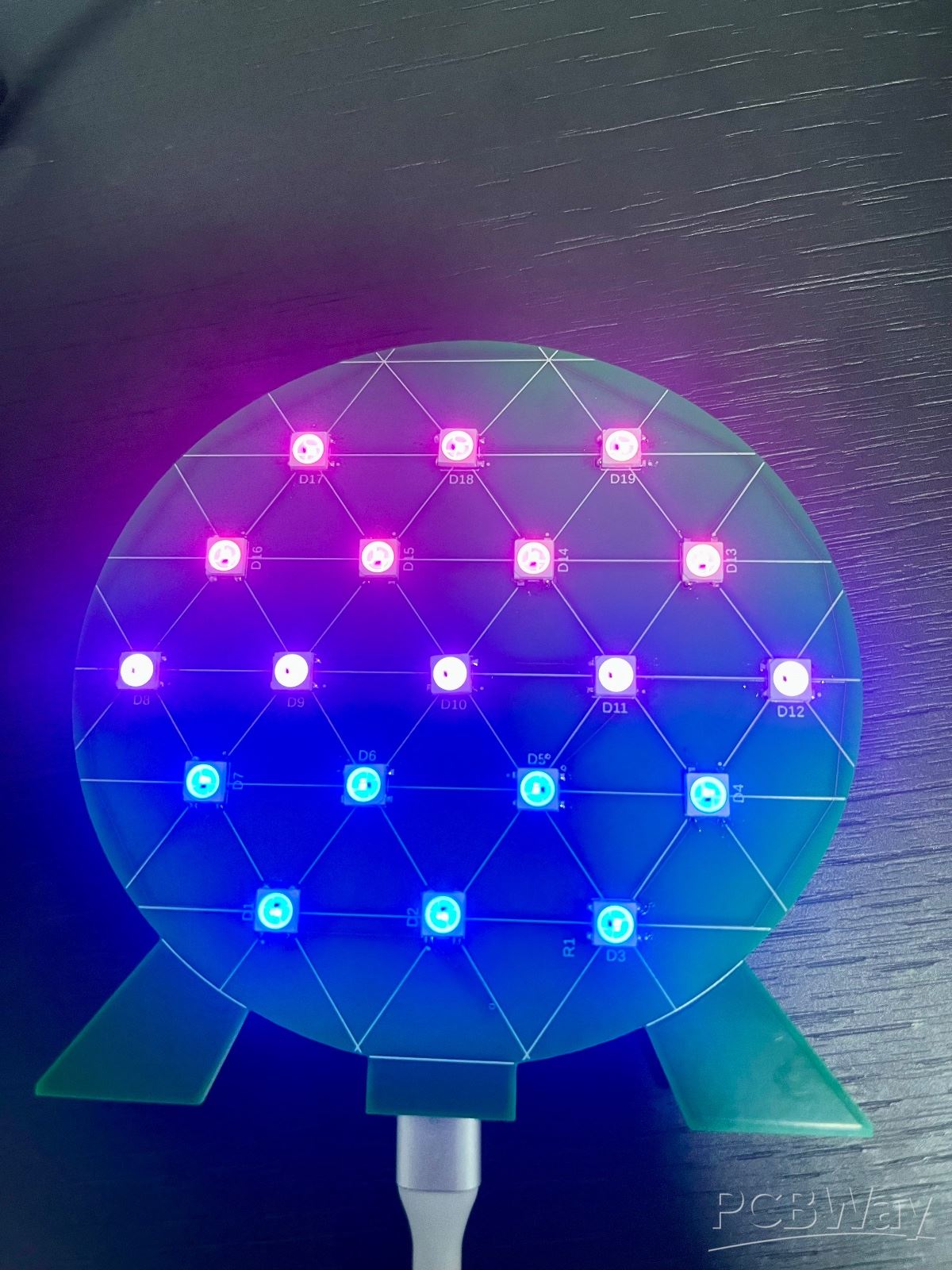

A small circuit designed to look like Space Ship Earth at EPCOT in Florida, recreating its exterior lights that can be changed to any colour. Achieved through using a series of WS2812 LEDs controlled by a raspberry pi pico. The circuit was manufactured to a high quality with the silkscreen being clearly printed and all the circuit pads being well placed.





Oct 11,2025
804 viewsReport item
