Display C

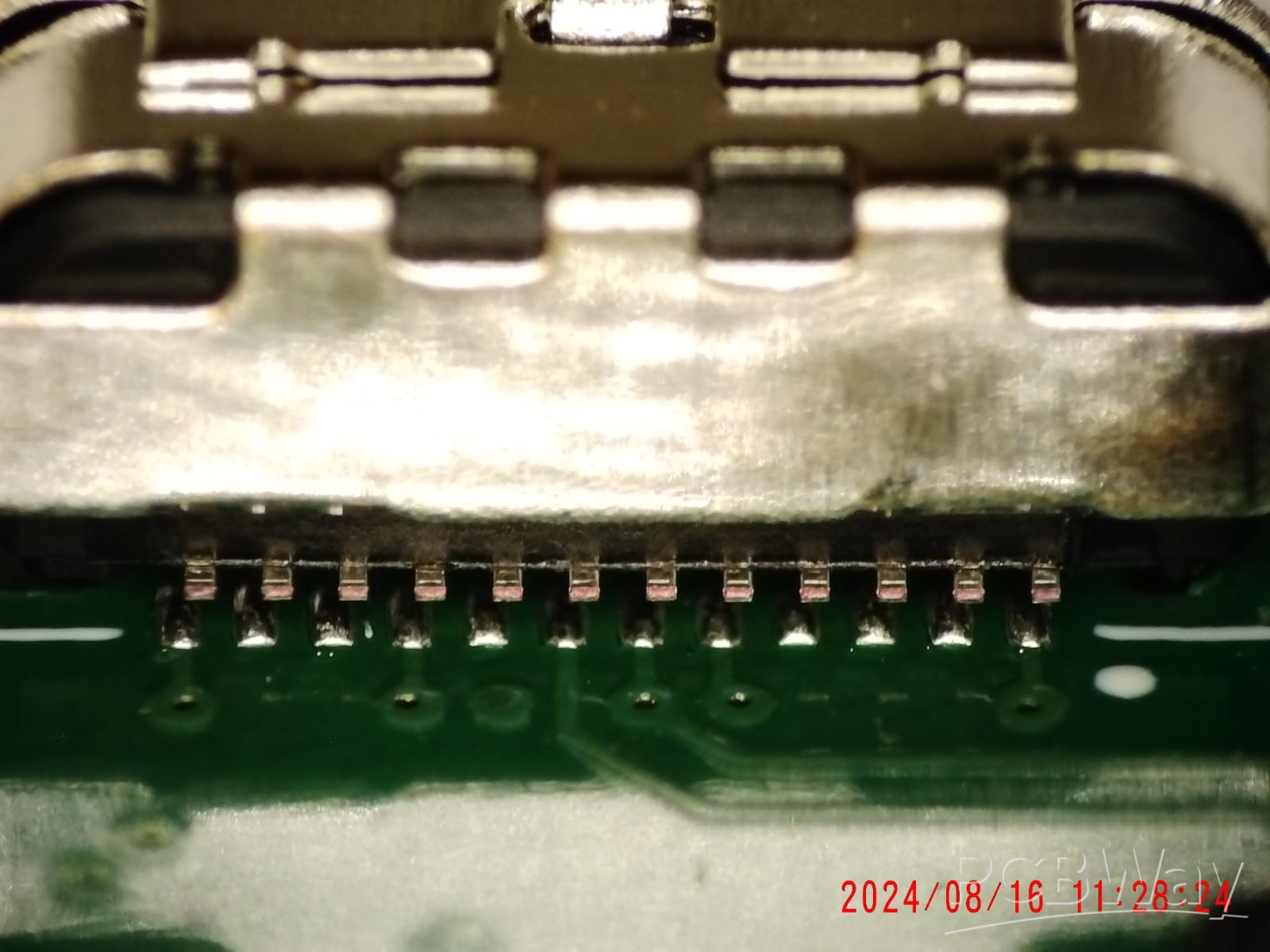

On 2 PCBs the USB connectors are not fully soderd to the PCB. The back row of contacts are "flying" over the PCB. See pictures



Aug 16,2024
85 viewsReport item
