DDR3 bridge (C)

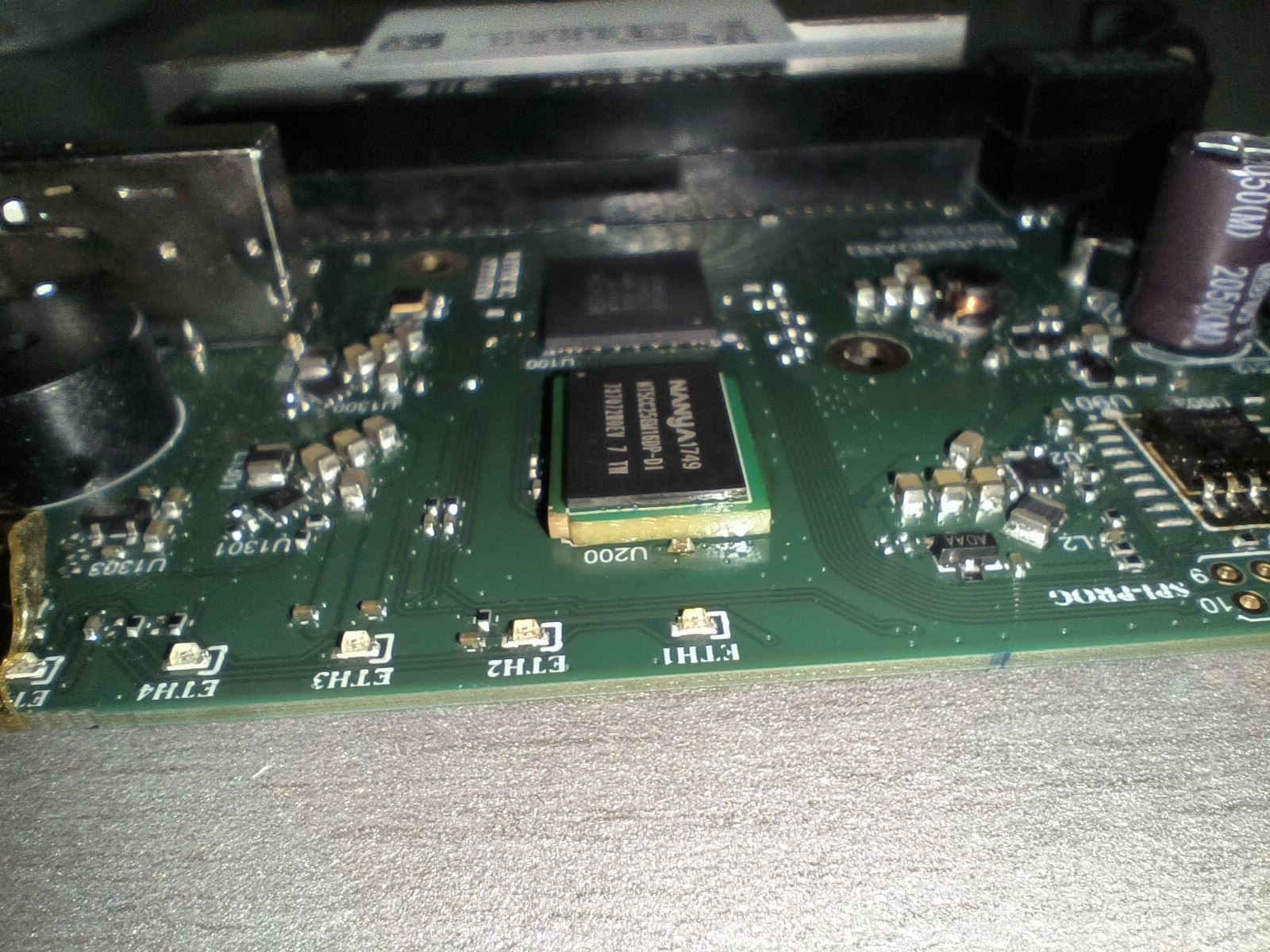

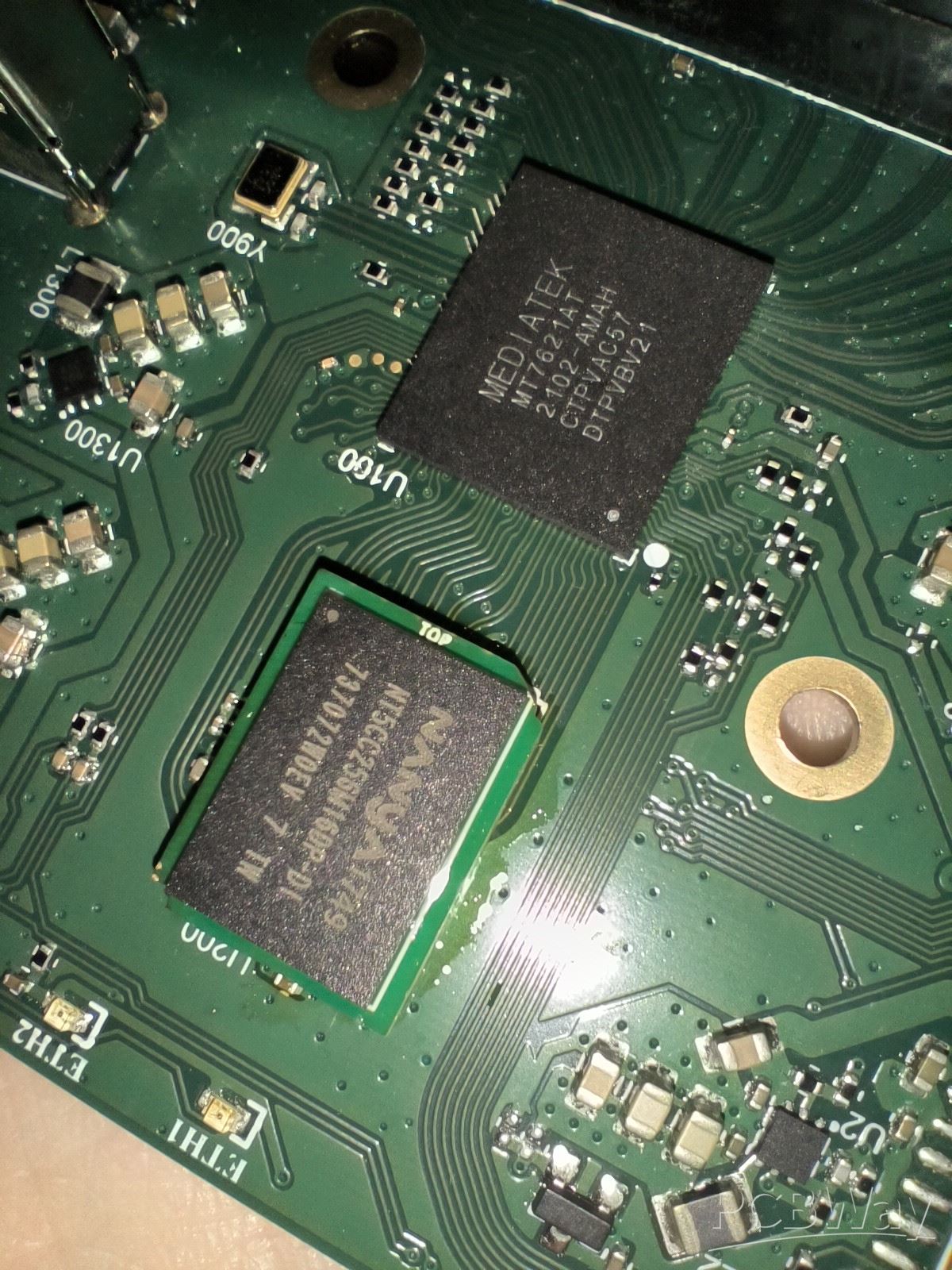

I've ordered a simple 2-layer PCB to lift up a bit DDR3 memory to be able to attach another adapter without collision with another components on the device. Both sides identical with 0.4/0.3mm vias. Everything has been done in professional way, fast and without problems. Also it was very cheap - I've paid only $5 for 50 pieces. Customer support is also very professional and kind. They helped me with my PCB design and configuration. I recommend them to everyone!




Jul 09,2025
