Custom Spur Gear

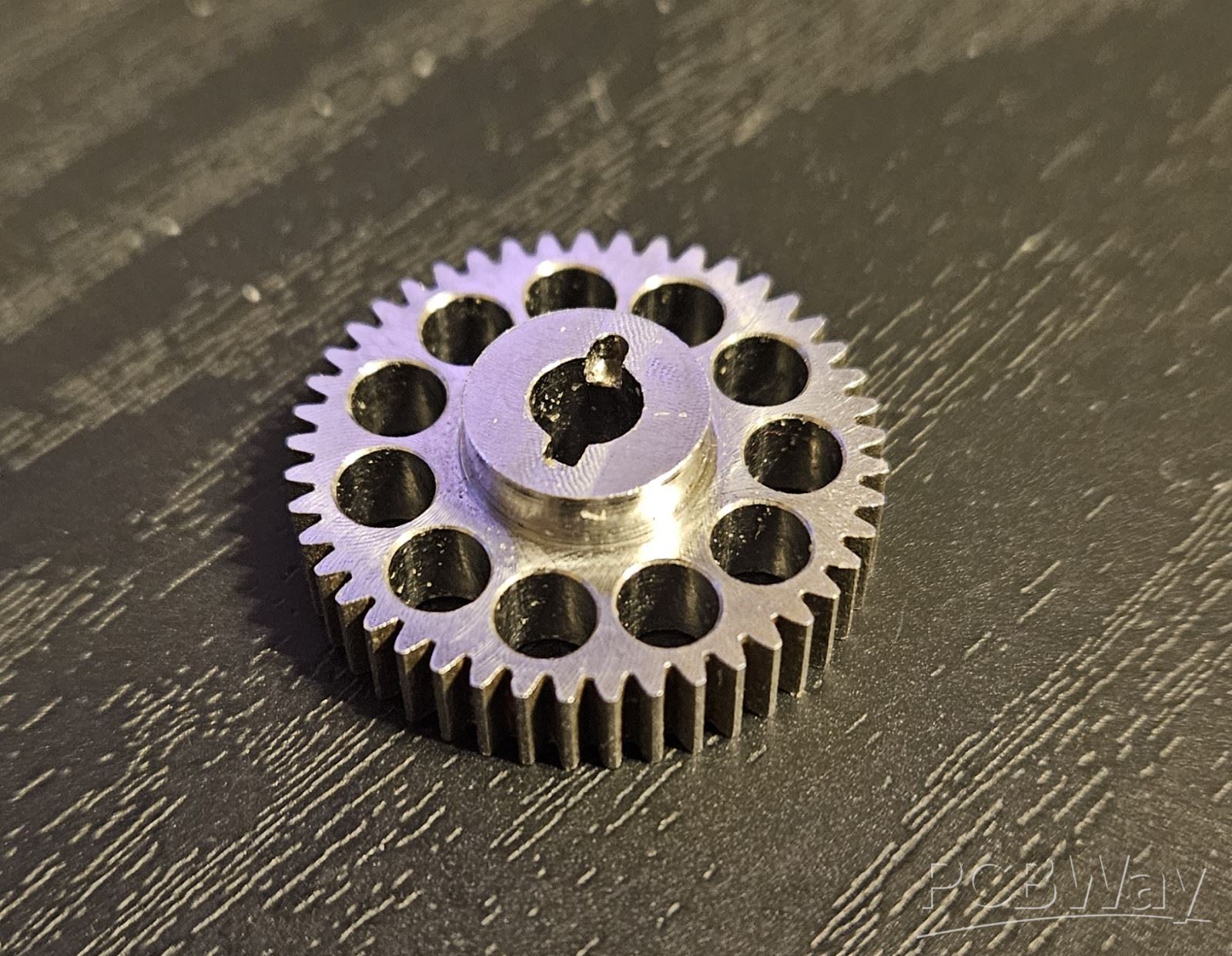

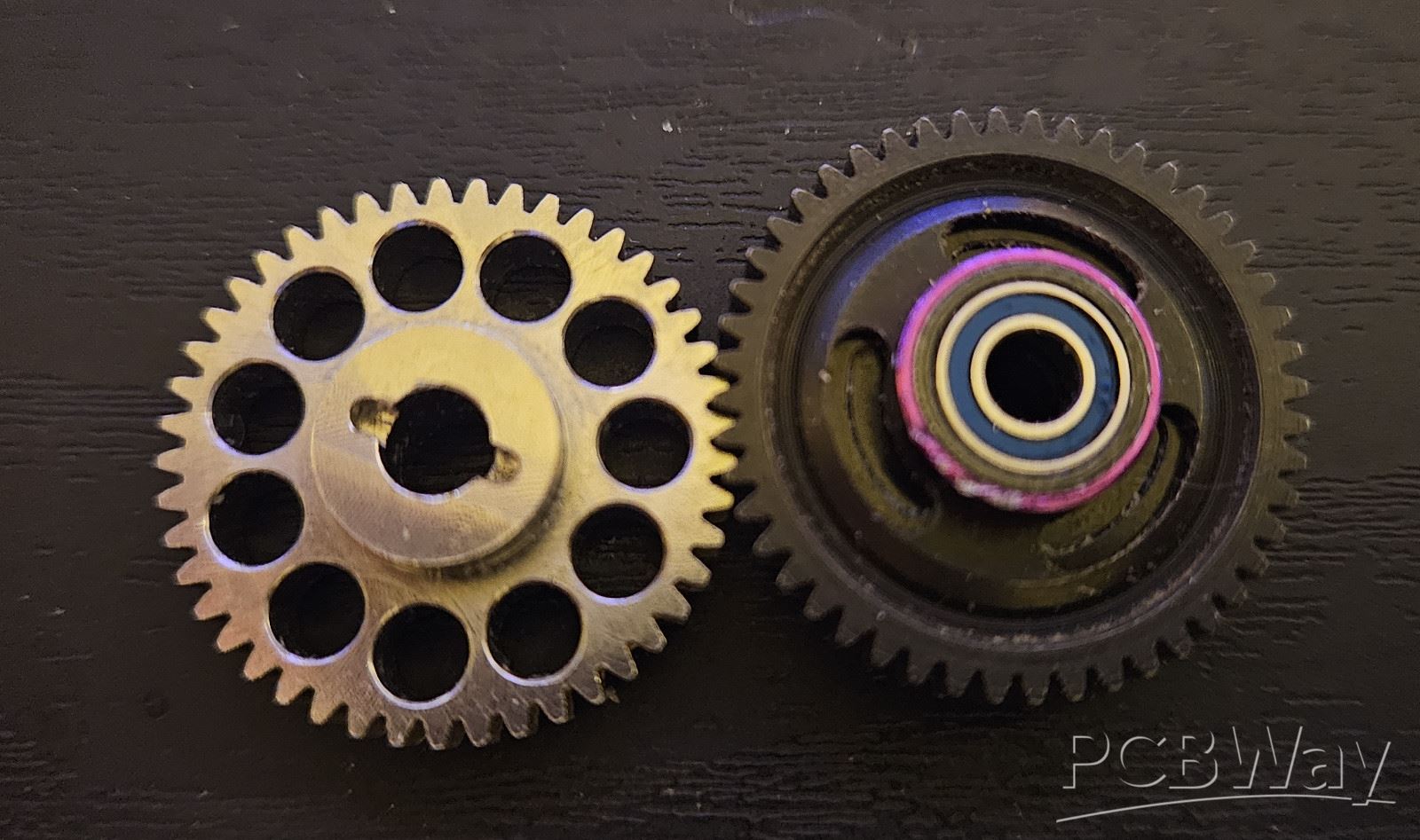

This gear has very small teeth (48 pitch/0.5288 mod). I honestly didn't know if it would work when I ordered. I opted for smooth finishing. It turned out great. Second picture shows it meshing with a commercially produced gear.



May 09,2026
38 viewsReport item
