Commodore Amiga Joystick brakbord DB9

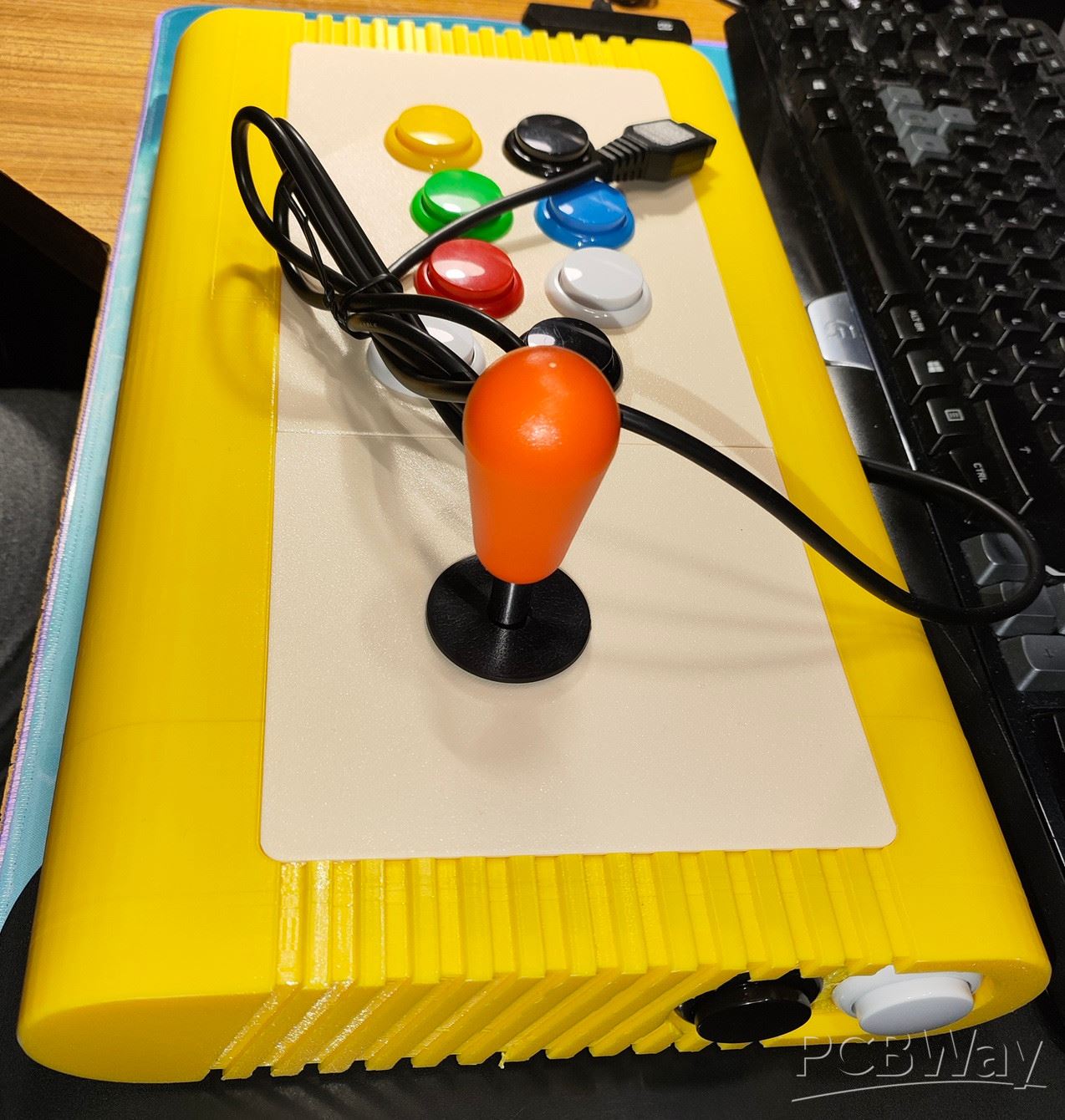

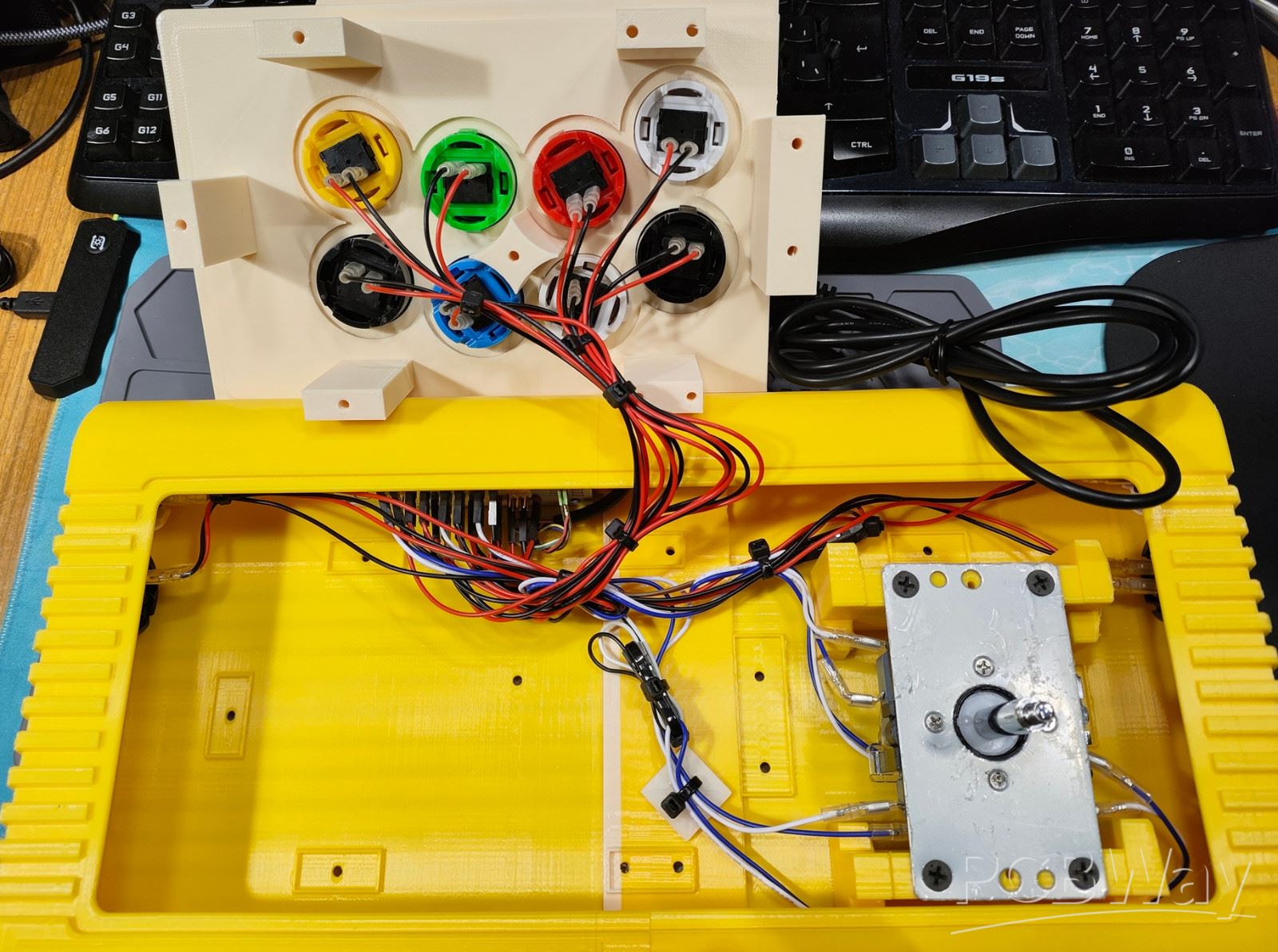

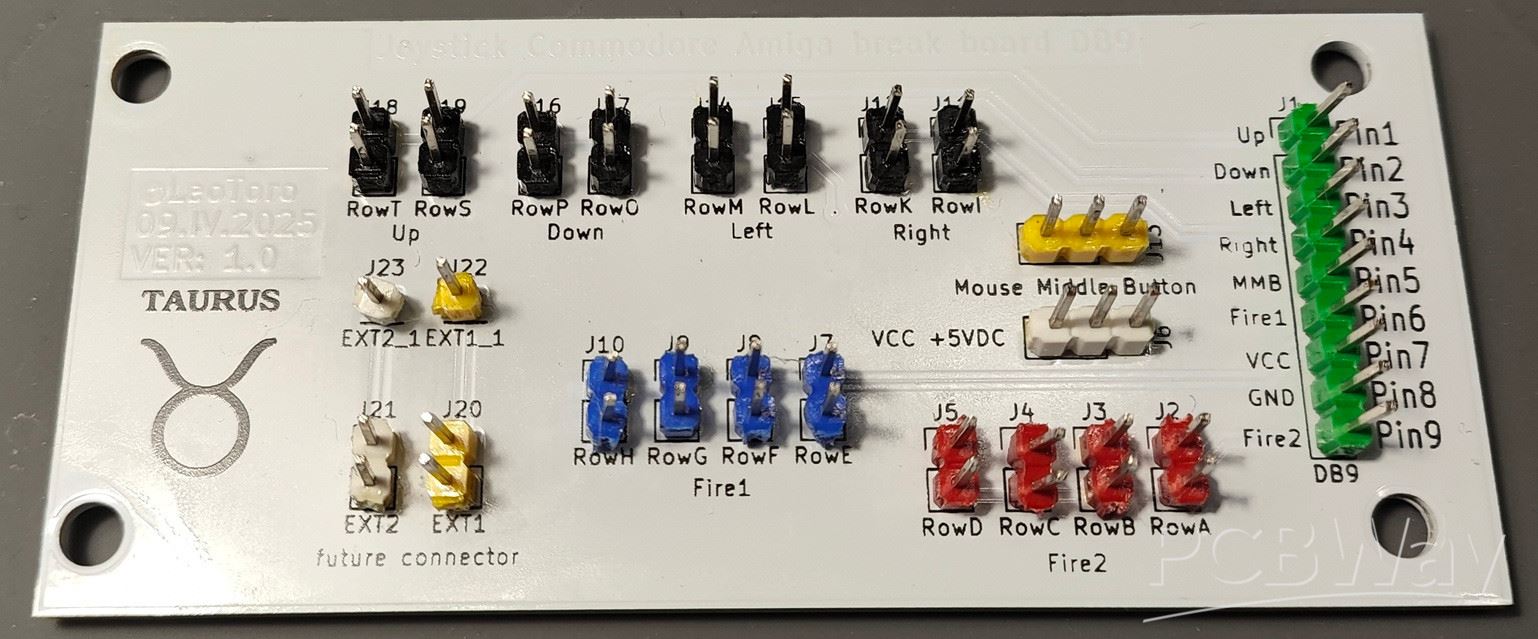

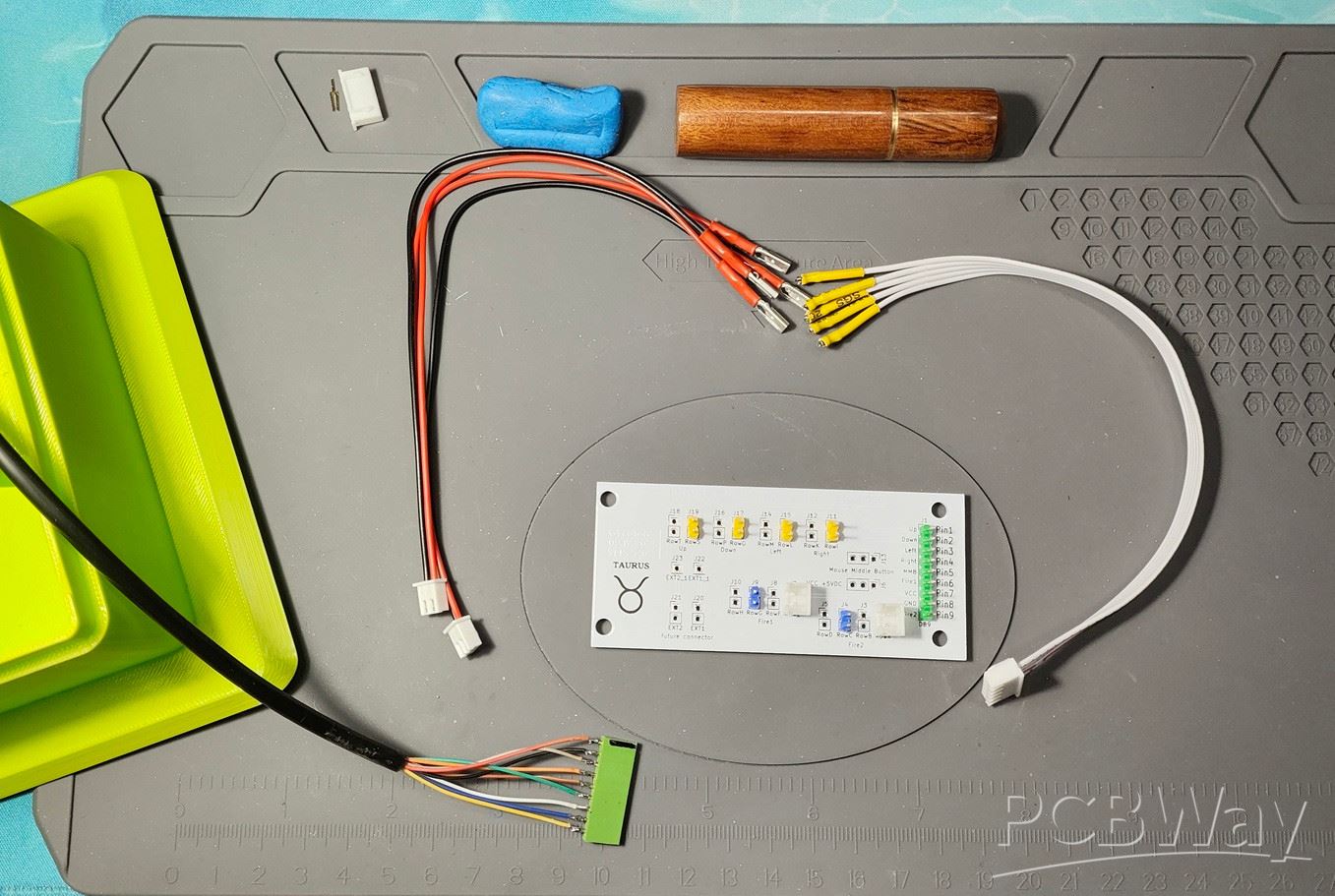

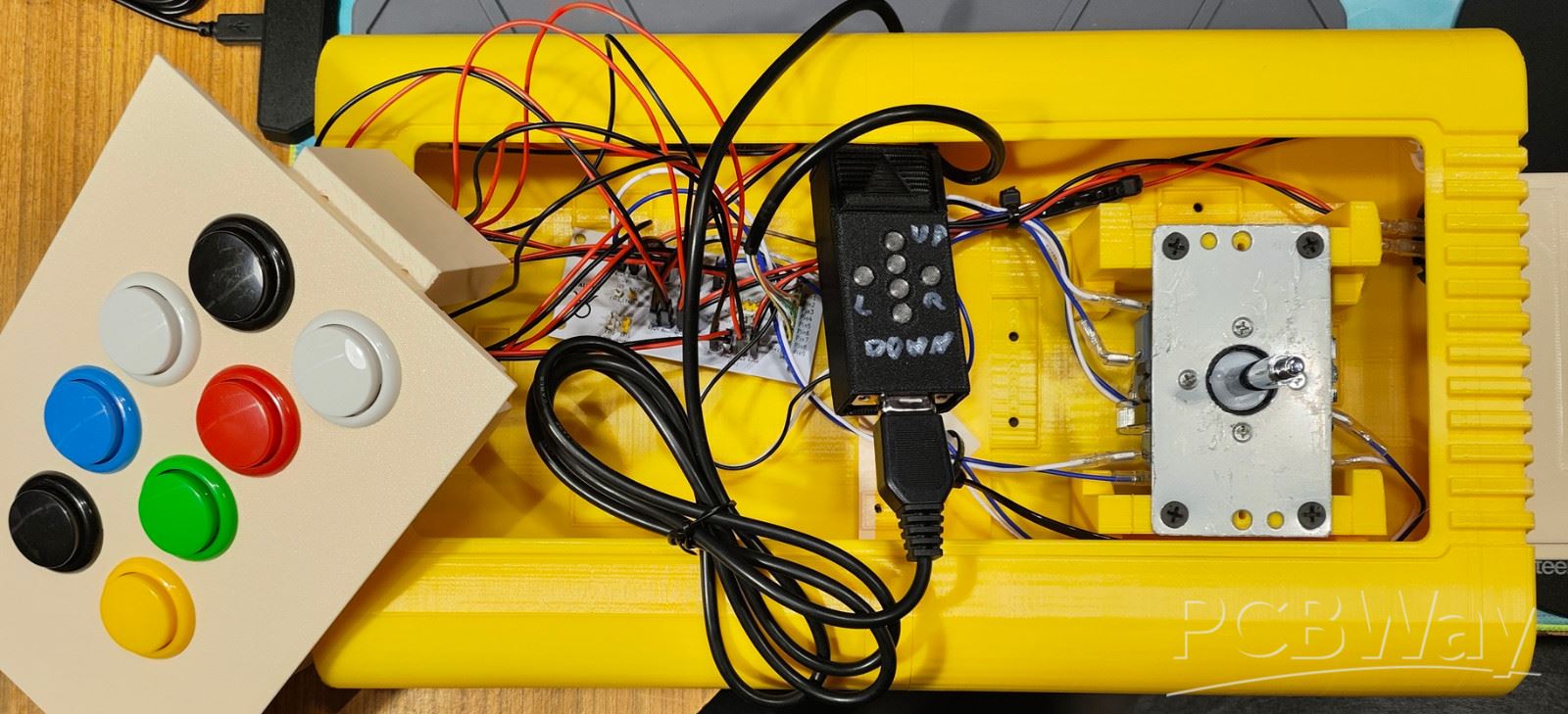

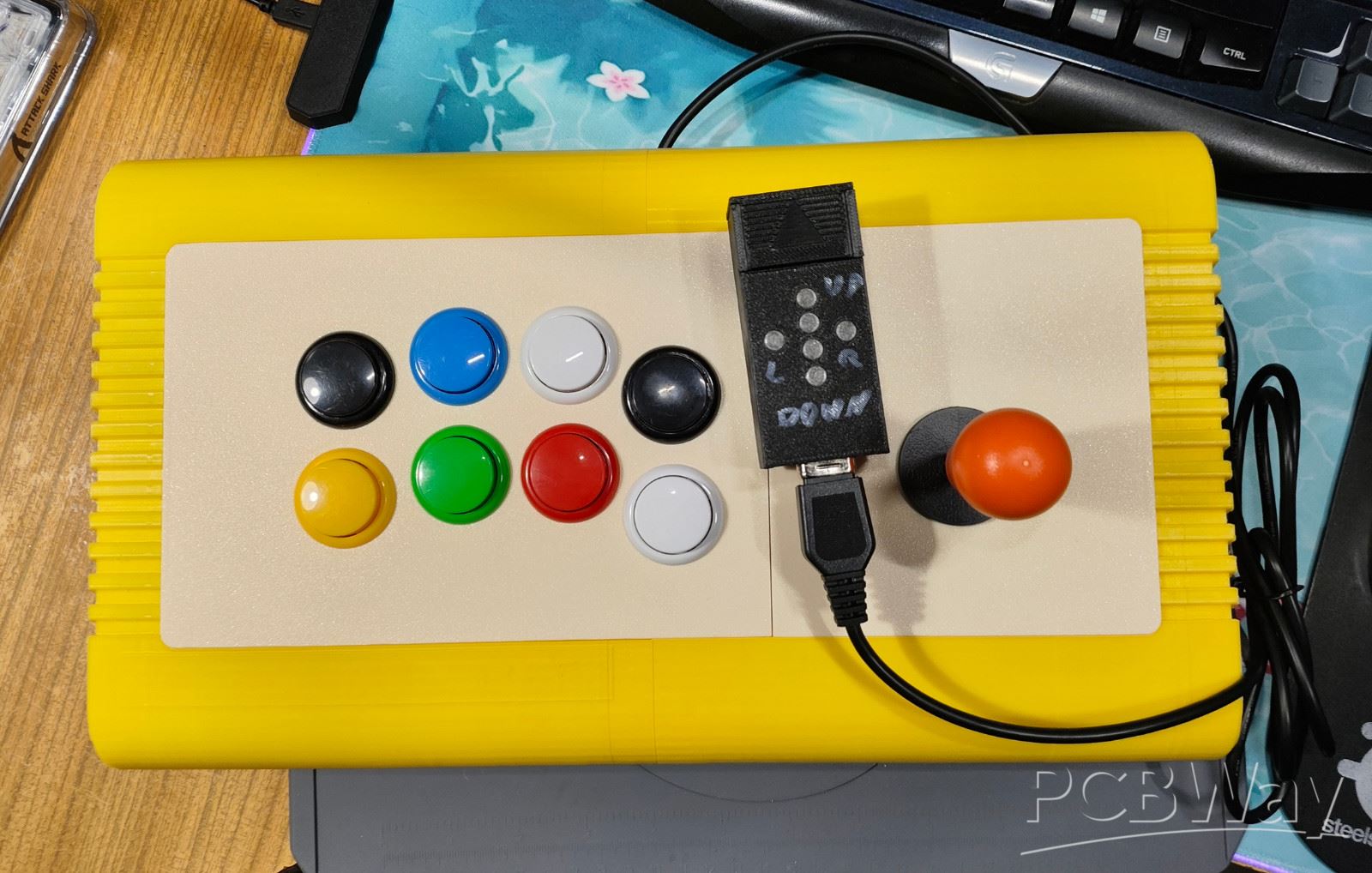

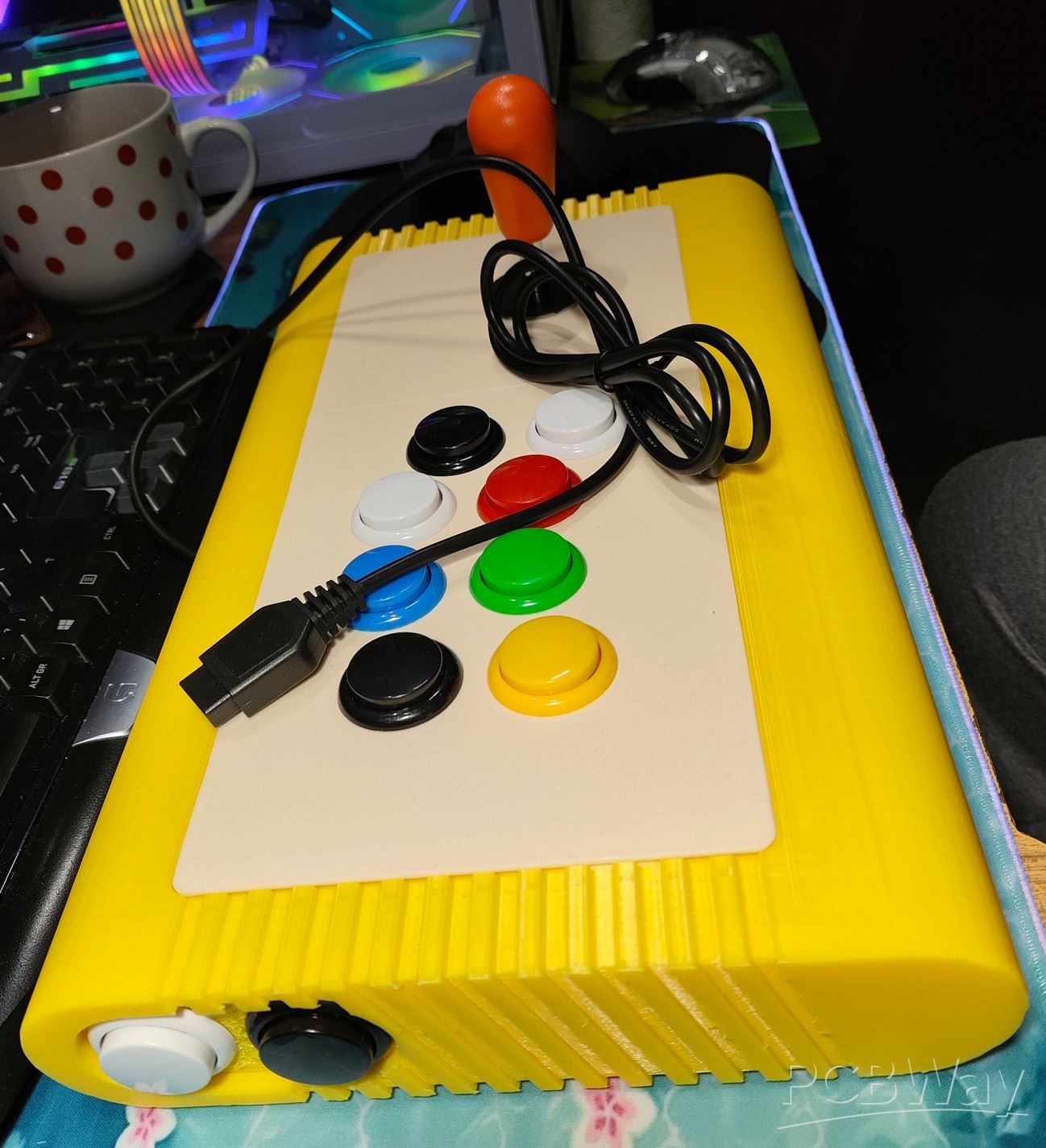

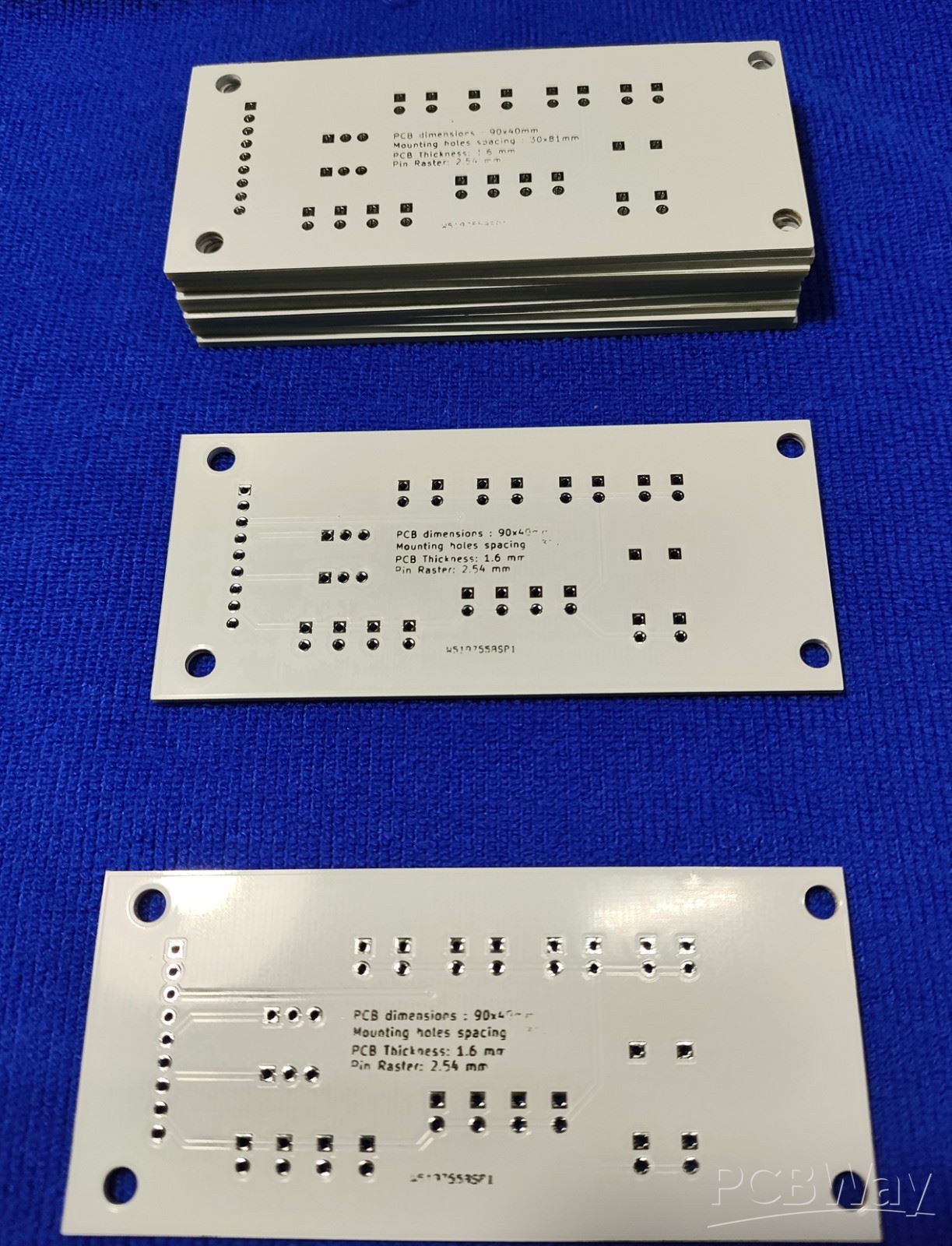

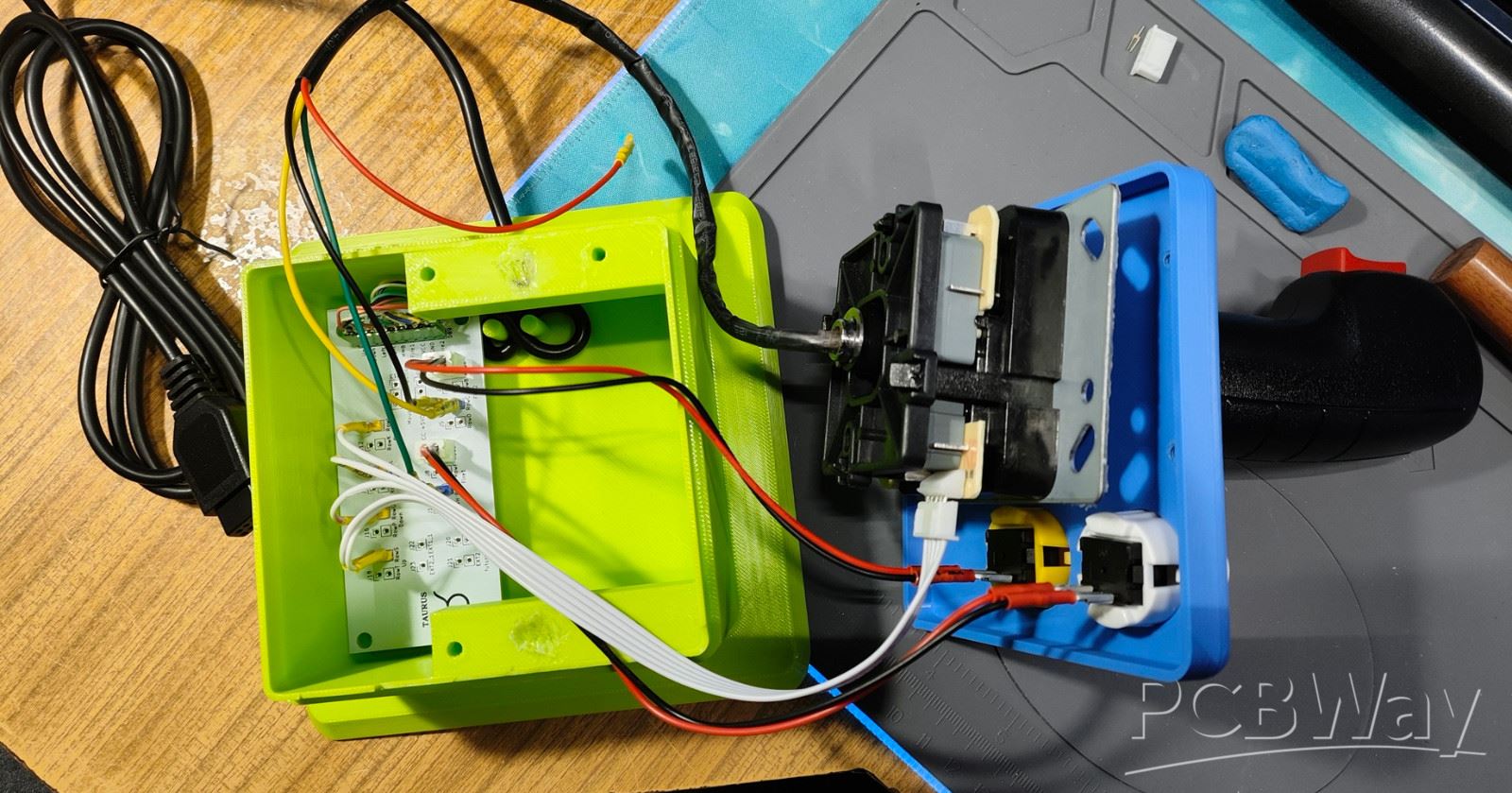

Need PCB board for Commodore Amiga DB9 Joystick, so I design this simple design to just plug and play switches, cables and controller to one nice Circuit Board. Works very well. Excellent PCB quality. No problems. Very well made. Made two types, one in Arcade Style and other more in Flight Stick Type : https://youtube.com/shorts/GnX1kJmaudw?feature=share https://youtube.com/shorts/17jYo-AY2ZU?feature=share











Apr 26,2025
