Atari STE Bad DMA fix

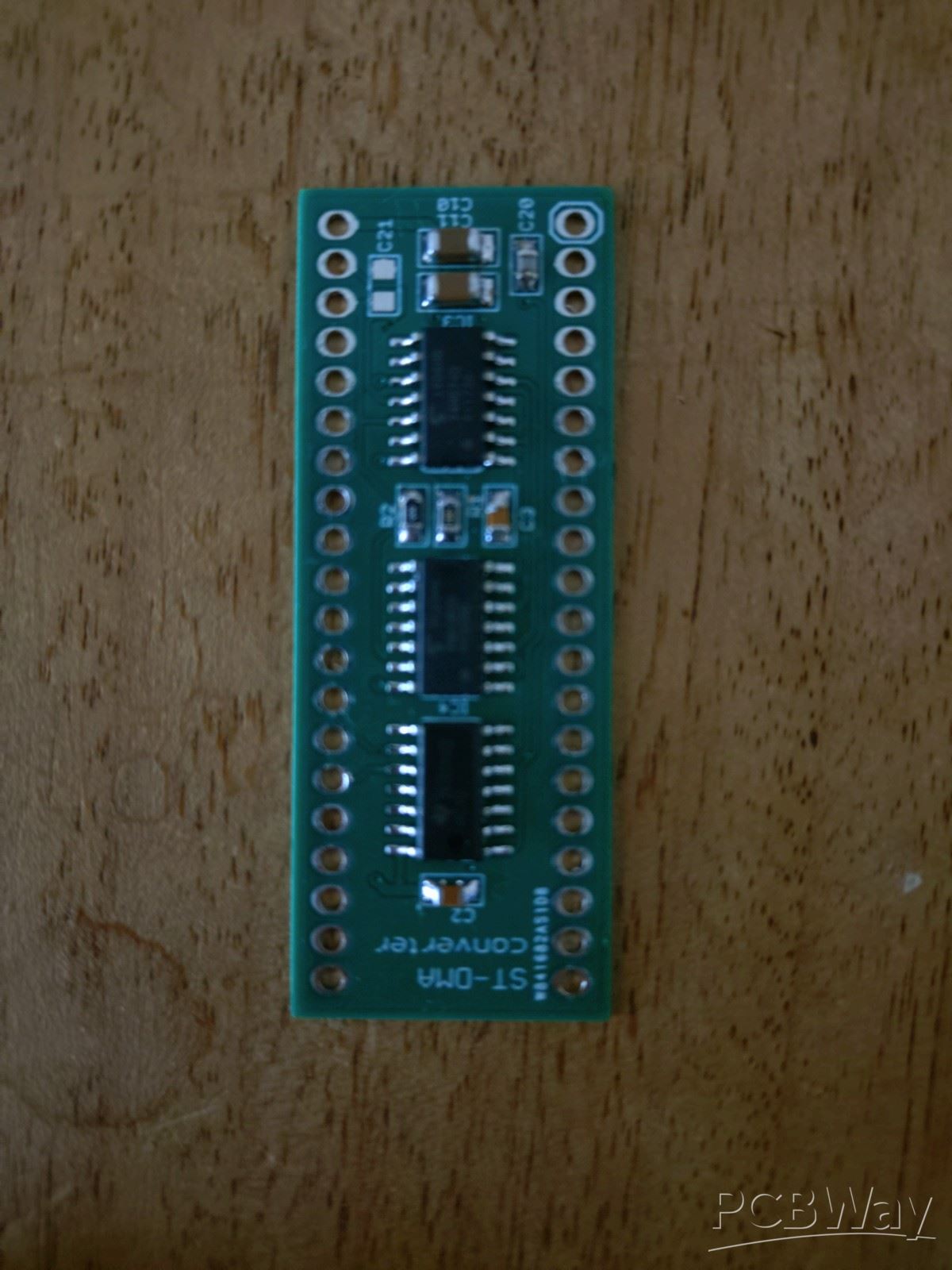

Gerber files found on the site of the author, it should fix DMA timing of C025913-38 on Atari STE. Originally it should be installed on rolled pins between IC and mainboard or on top of IC. I have decided to install it on the bottom side of the mainboard. Unfortunately while testing the DMA IC failed, maybe I shorted something by installing the PCB. I'm waiting for a replacement C025913-38. At least here is a picture of the assembled PCB installed.



Sep 25,2026
