6061 aluminum CNC spindle backplate

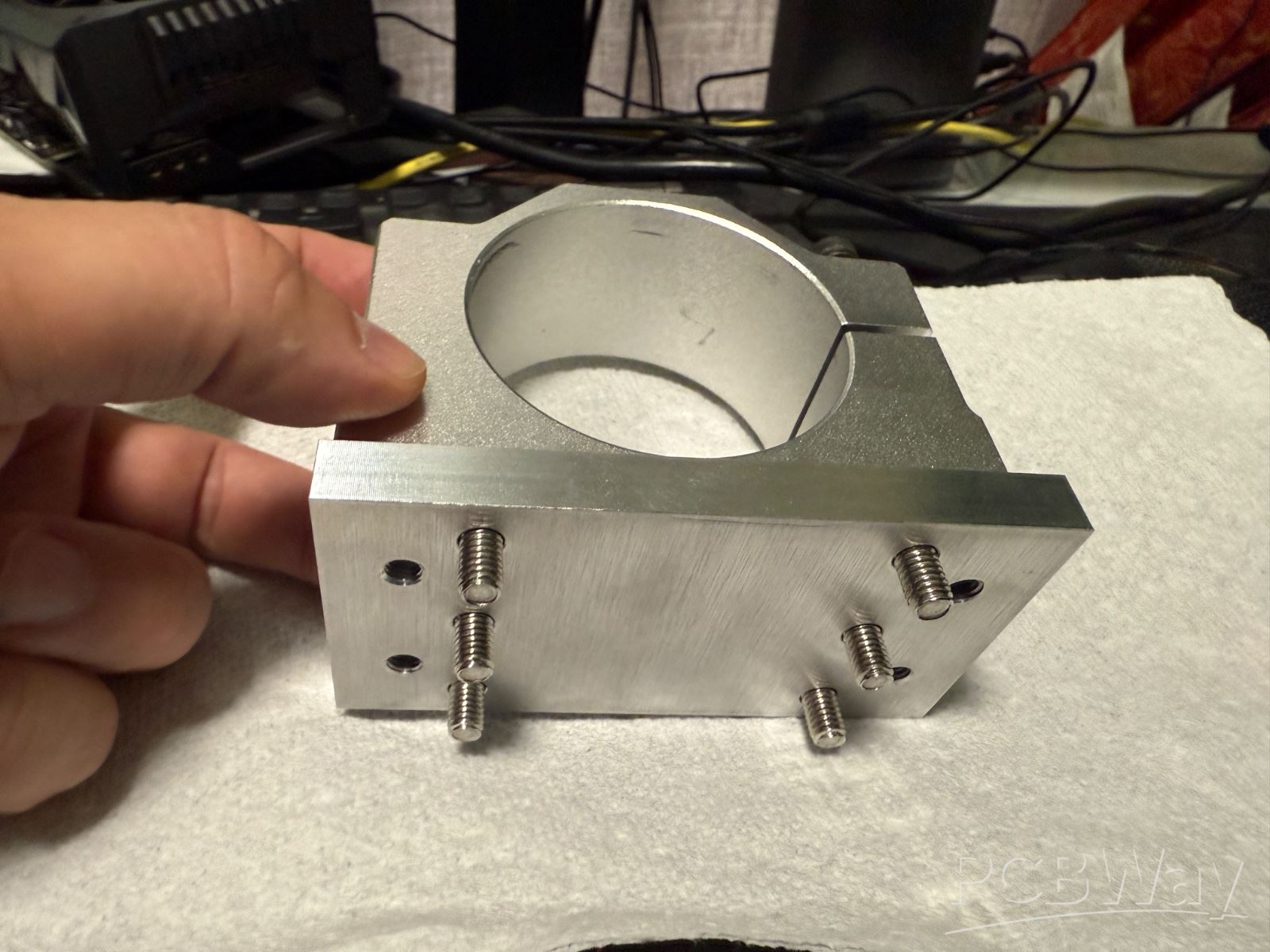

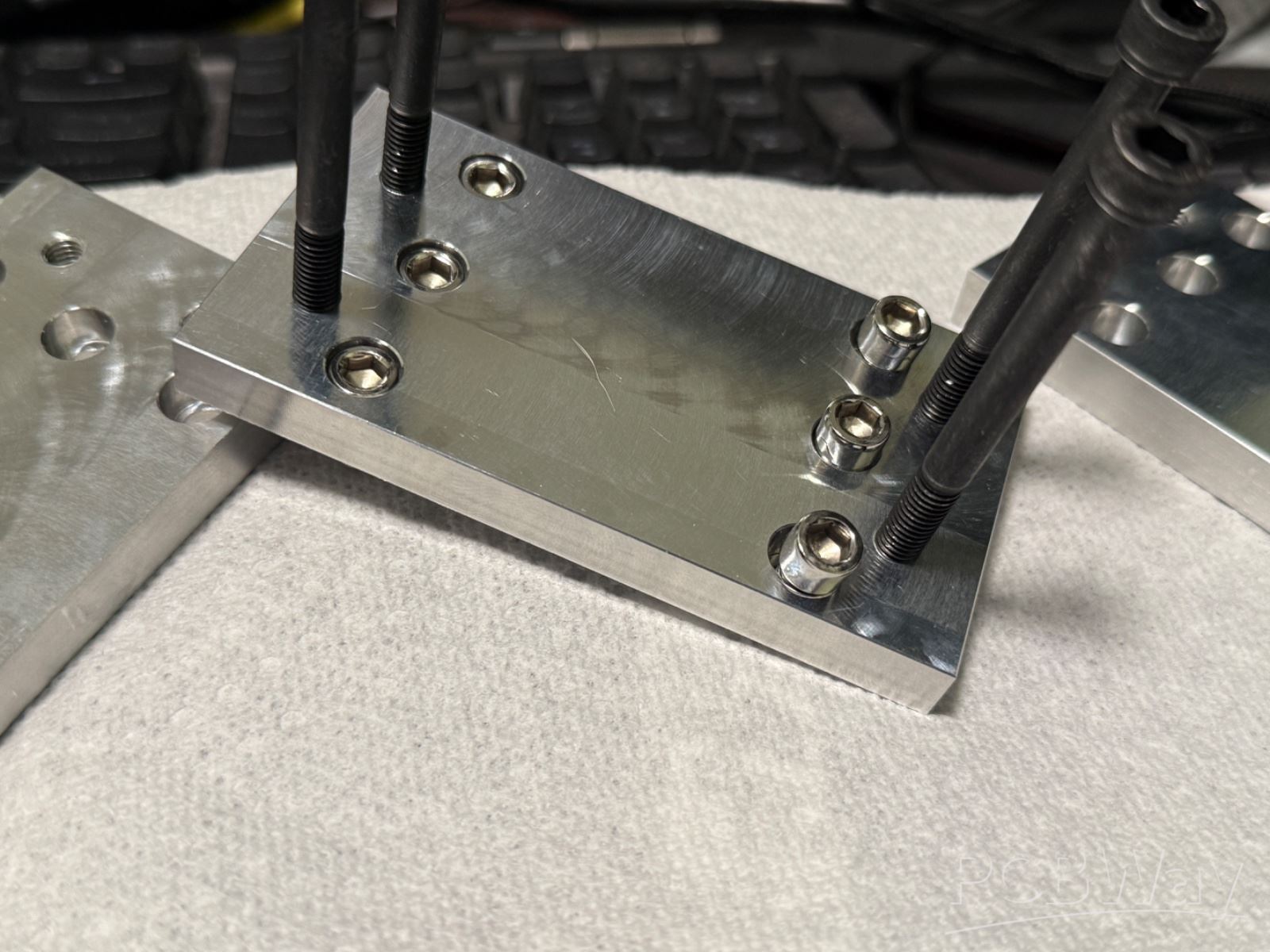

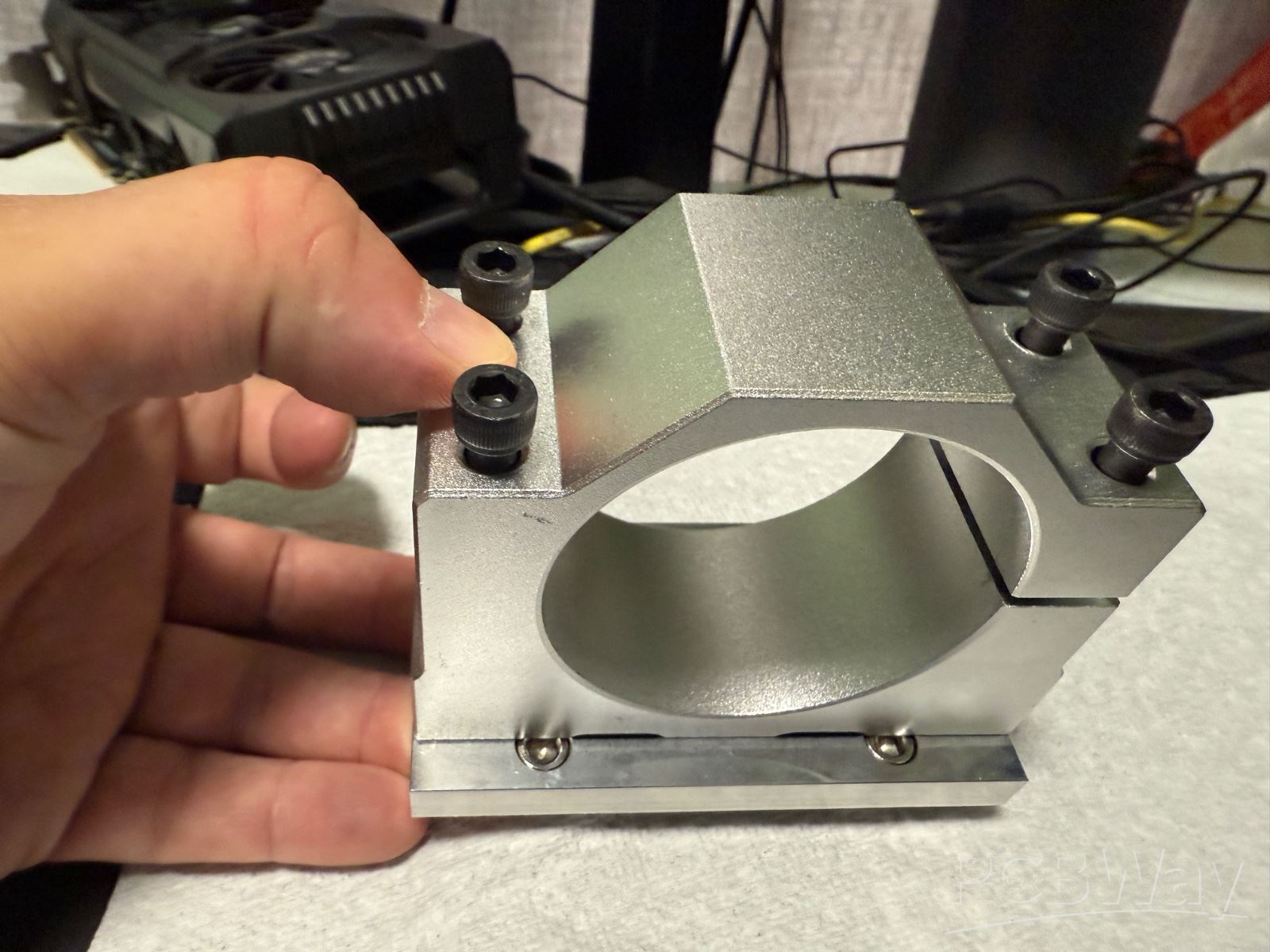

This was an aluminum CNC spindle back plate replacement. The whole alignment for my original layout had changed so I had to have PCB way make a custom back plate for me. they did a wonderful job.
