4 Cell 18650 Charger

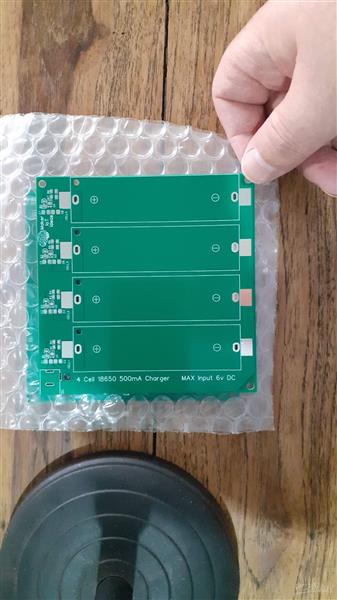

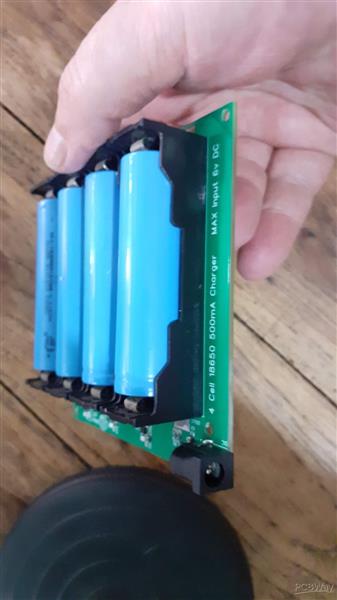

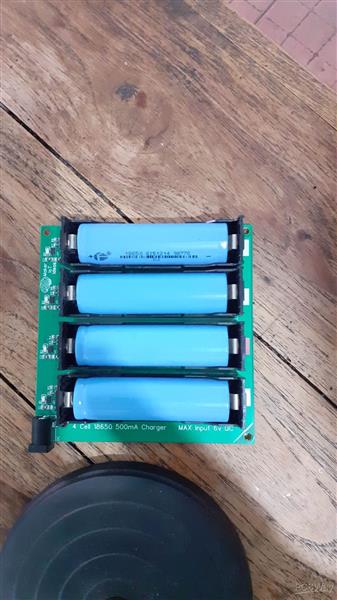

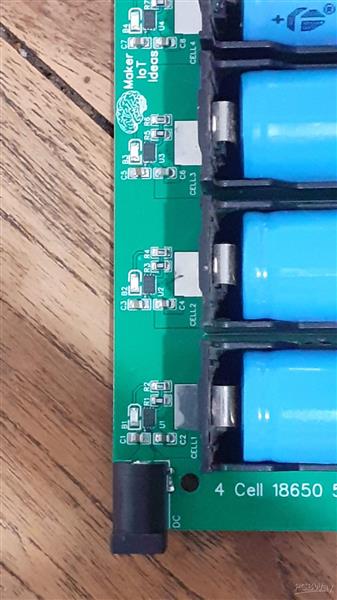

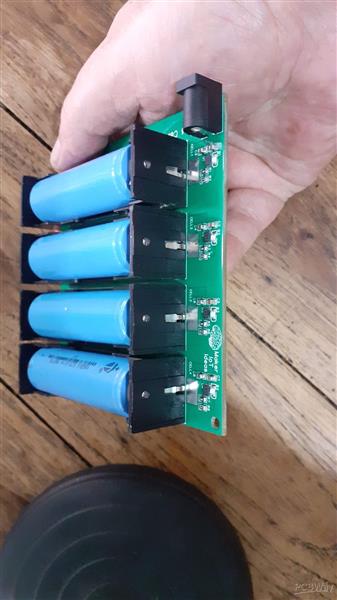

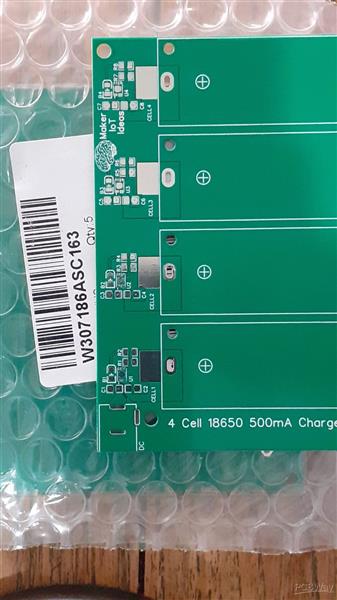

18650 cells are quite common in my lab, but charging them is usually quite a mission. This is an attempt to get proper charging hardware into the lab, and also part of a possible future project, that will aim on keeping them charged, with status etc. I enjoy a challenge, and the DFN8 packages surely are just that. Assembly went extremely well, and the board works as intended at first try. PCBWay did their usual high quality work, which goes a very long way in helping me ensure that things are as I designed them. Thank you











Apr 22,2023
