10th Anniversary Badge

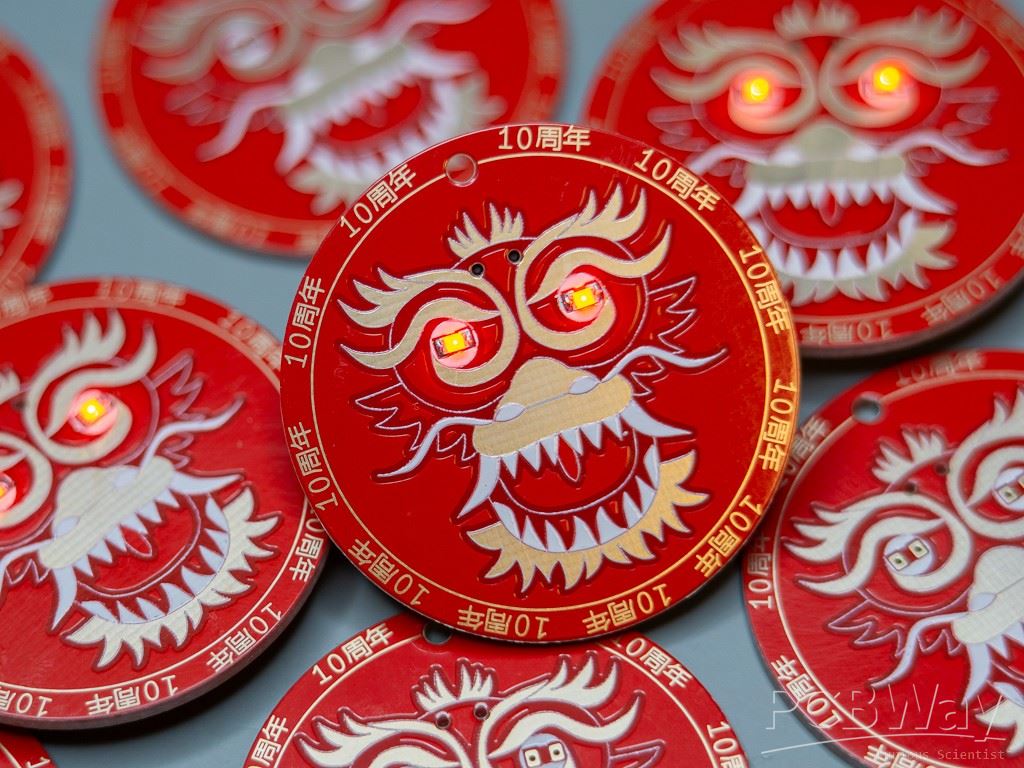

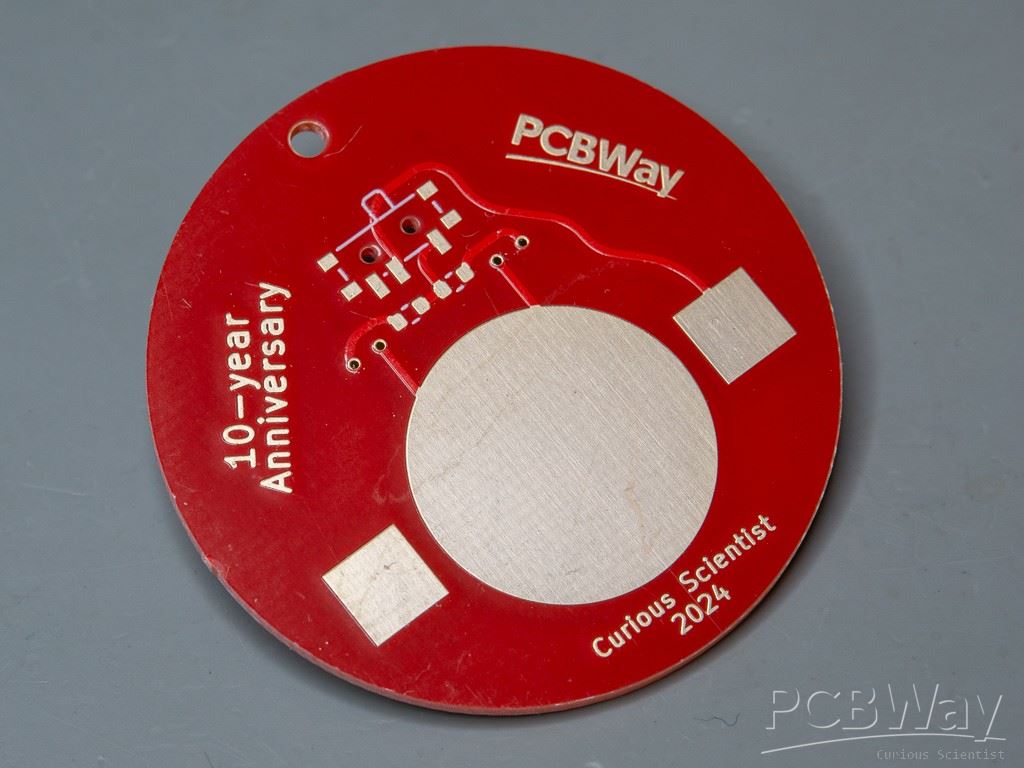

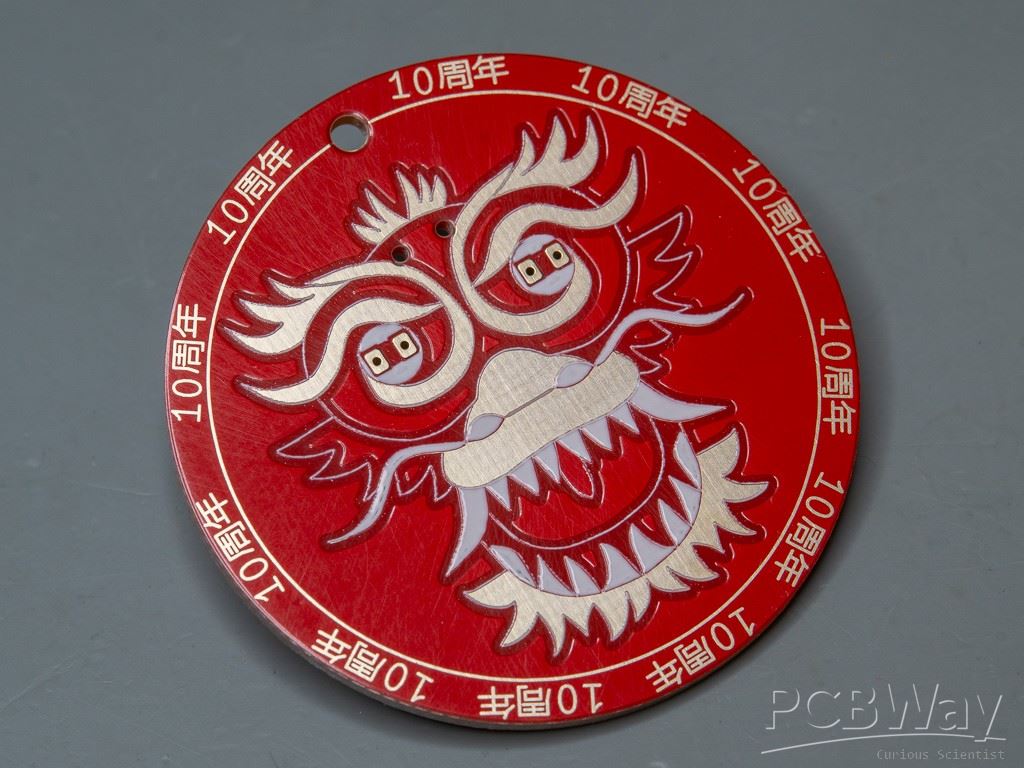

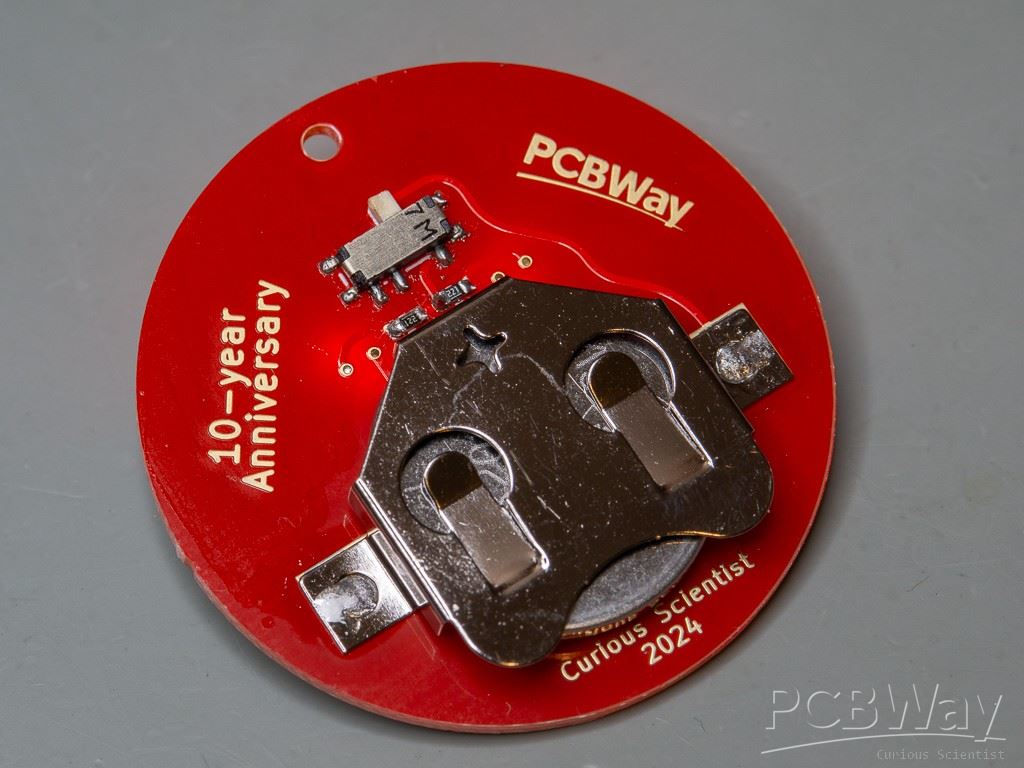

This is a PCB badge I designed for PCBWay's 10th anniversary. I tried to be creative and used the available manufacturing techniques to create a spectacular graphic on the surface of the PCB. I used a red solder mask colour, and I picked an ENIG surface finish, plus I used white silkscreen. All looks great! I even put vias through solder pads and they turned out to be great. Good quality as always, with fast manufacturing and transportation. Thanks!






May 18,2024
141 viewsReport item
