10 MHZ GPSDO project V4.1

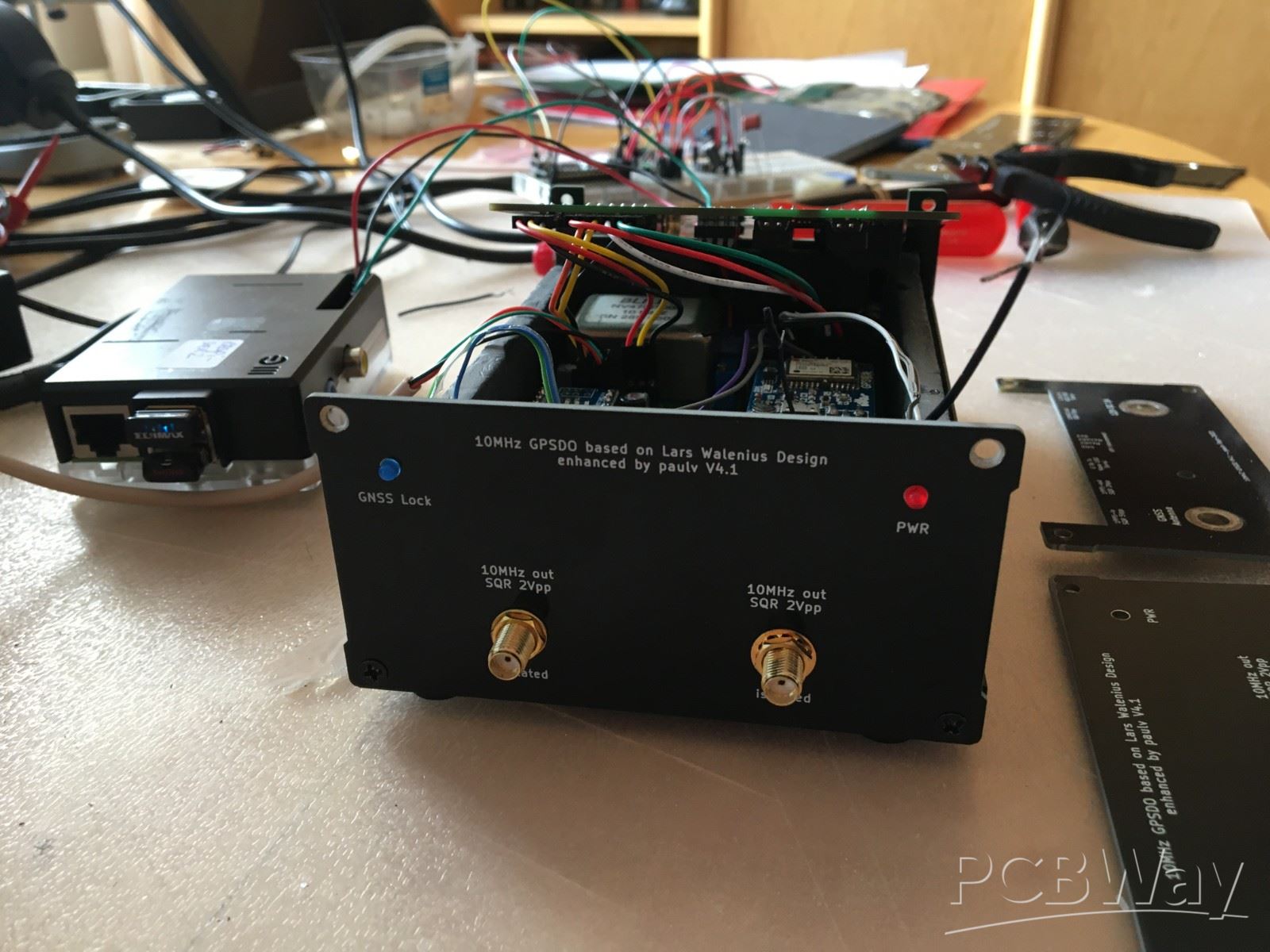

This is the front panel for the GPSDO V4.1 project. The picture also shows the interface board from W391763ASV9 while the cover of the enclosure is unmounted.
