Product Description

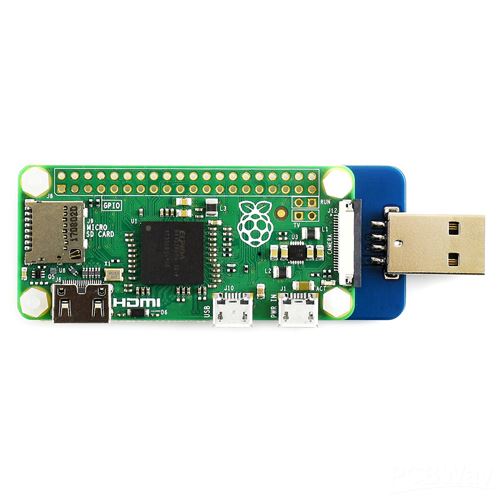

Raspberry Pi Zero/Zero W/Zero WH USB Adapter Board

Introduction:

A USB adapter specially designed for Raspberry Pi Zero.

The micro USB of Raspberry Pi Zero can be converted into Type A interface, which is convenient for direct access to the computer without connecting other wires or power supplies.

  • Direct access to the computer, users can manage raspberry pie through SSH connection.
  • It can be set as VNC server, which is convenient for users to access raspberry pie through VNC client.
  • You can set up a shared network with the computer to facilitate the direct networking of raspberry pi.

Features:

  • Support raspberry pie ZeroV1.3/ZeroW/ZeroWH/Zero2W/Zero2WH
  • Lead out the Type A interface, which can be directly connected to the computer USB interface
  • With both power supply and USB OTG functions

Welding tutorial:

1. Separate the gasket from the motherboard.

2. Take out two circular gaskets.

3. Insert the USB plug into the adapter board.

4. Solder USB plug

5. Solder the remaining pins of USB plug

6. Slightly adjust the position to the welding point, and fix the motherboard on zero with screws.

7. Install the two washers to the remaining two screws, and install the two screws to the holes on the other side.

8. Fix it on the zero board

9. First, weld two power contacts.

10.USB differential signal contacts can be welded together.

11. It is best to check whether there is a short circuit of sticky tin before powering on.

12. Access to computer for use
