Product Description

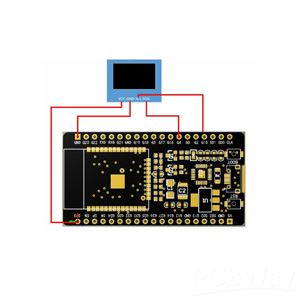

Goouuu-ESP32 Module Development Board WiFi+Bluetooth 2 in 1 Dual Core CPU

Goouuu-ESP32 development board:

1. The onboard CP2102 stable USB to TTL chip ensures the normal communication of the serial port.

2. Support automatic download, no need to manually switch download and running mode.

3. Immersion Gold Craft

4. Support development on Windows system (cygwin and msys32 simulation environment) and Linux system

5. Support ESP32-rduino

ESP-WROOM-32 is a general-purpose WiFi+BT+BLE MCU module with powerful functions and a wide range of uses. It can be used for low-power sensor networks and demanding tasks such as voice encoding, audio streaming, and MP3 decoding ect.

The core of this module is the ESP32-D0WDQ6 chip, which is scalable and adaptive. The two CPU cores can be individually controlled or powered on. The adjustment range of the clock frequency is from 80 MHz to 240MHz. The user can cut off the power of the CPU and use the low-power coprocessor to continuously monitor the status changes of the peripherals or whether certain analog quantities exceed the threshold. ESP32 also integrates a wealth of peripherals, including capacitive touch sensors, Hall sensors, low-noise sensor amplifiers, SD card interface, Ethernet interface, high-speed SDIO/SPI, UART, I2S and I2C.

ESP32-D0WDQ6 contains two low-power Xtensa 32-bit LX6 MCUs.

includes:

  • 448 KB of ROM, used for program startup and kernel function calls.
  • 520 KB on-chip SRAM for data and instruction storage.
  • The 8 KB of SRAM in RTC, can be accessed by the coprocessor in Deep-sleep mode.
  • The 8 KB of SRAM in the RTC, can be used for data storage and accessed by the main CPU when the RTC is started in Deep-sleep mode.
  • 1 kbit eFuse, of which 256 bits are dedicated to the system (MAC address and chip settings); the remaining 768 bits are reserved for user applications. These applications include Flash encryption and chip ID.
  • ESP-WROOM-32 integrates 4MB of SPIFlash
