COMMODORE 64 - EPYX FASTLOAD CARTRIDGE




A lot of experienced Commodore 1541, SD2iEC, Pi1541 users prefer EPYX FASTLOAD, because of its high compatibility with Commodore hardware and software.



Every moment of your life is valuable, money can't buy time. I am sorry that; this is not a Time Travel Machine, but I hope this will help you to save a few valuable seconds of your life :)



While working with Commodore's original Disk Operating System, Commodore Disk drives (1541, 1571...) or disk drive emulators (SD2iEC, Pi1541...) loading is slow. Epyx Fastload Cartridge increases the loading speed remakable rate.



Average Loading Speeds Comparison:


Normal C64 Loading: 500 bytes per second

Epyx Fastload (1541): 2500 bytes per second

Epyx Fastload (SD2iEC): 8000 bytes per second




Here is; 180 blocks (45KB) loading video, from SD2iEC, with using Epyx Fastload:

https://www.youtube.com/watch?v=sfkIw4P4sD0








EPYX FASTLOAD CARTRIDGE also contains disk utilities and a machine code monitor for Commodore 64.



You can find many more information about EPYX FASTLOAD CARTRIDGE from internet.



If you have a suitable eprom programmer, then making your EPYX FASTLOAD CARTRIDGE is very simple now :)




You can download Binary Eprom Image and user manuals from this link.


https://archive.org/download/epyx-fast-load-1984-v-2-roms_202005/Epyx_FastLoad_1984_v2_ROMS.zip





+5v- connection is for optional power source out for "Pi1541 ZERO" or "SD2iEC". (+5V 450mA)


If you need; You can find "C64 Pi1541 ZERO HAT" (Pi Zero size) PCB from this link.

https://www.pcbway.com/project/shareproject/RASPBERRY_Pi1541_ZERO_HAT_COMMODORE_64_DISC_DRIVE_EMULATOR_1.html


If you need; You can find "C64 SD2iEC COMBO" PCB from this link. (while using SD2iEC COMBO unconnected to expansion port, without kernal-cart function but with EPYX FASTLOAD)

https://www.pcbway.com/project/shareproject/COMMODORE_64_SD2iEC___KERNAL_CART_COMBO.html




Have fun


Thank you.

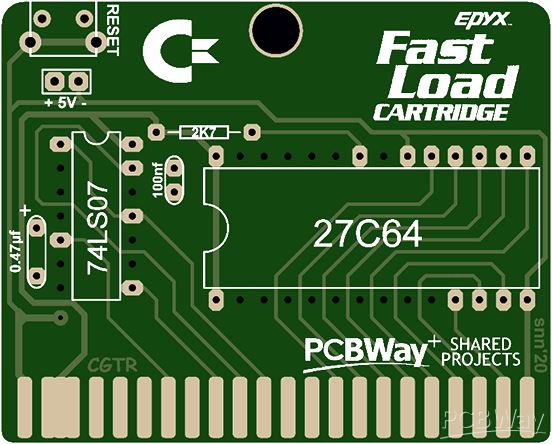

Components:


27c64 or 27c128 or 27c256 or 27c512 (DIP28)

DIP28 wide IC socket

74LS07

DIP14 IC socket

100nf CAPACITOR

0.47 μF CAPACITOR

2.7K 1/4 WATT RESISTANCE

RIGHT ANGLE TACTILE BUTTON (For optional RESET)
