Order G1314601, New Fiscal Memory

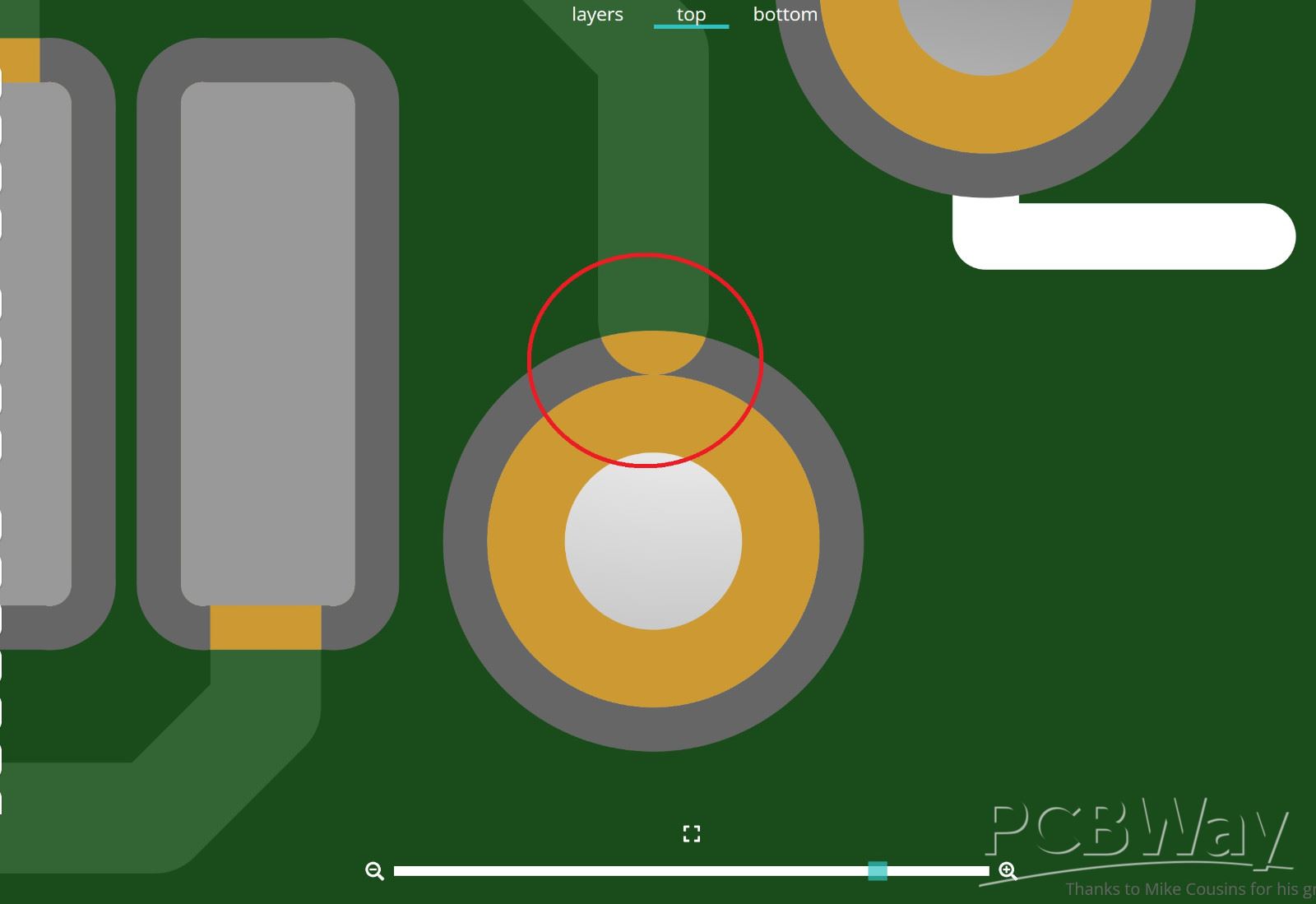

Hello Taylor, I need to check with you one matter. Our PCB designer made a mistake on the layout design, he did not connect properly a trace to the VIAS. Please check attached pictures, this is how the Gerber looks like, We need to know if during the production this mistake has been solved and the connection made. Do you have any production document that can show this? Thanks Ennio



Sep 24,2024
75 viewsReport item
