Control Board

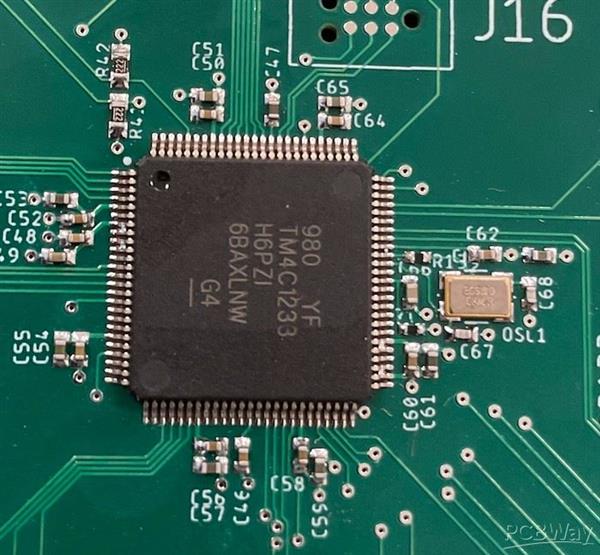

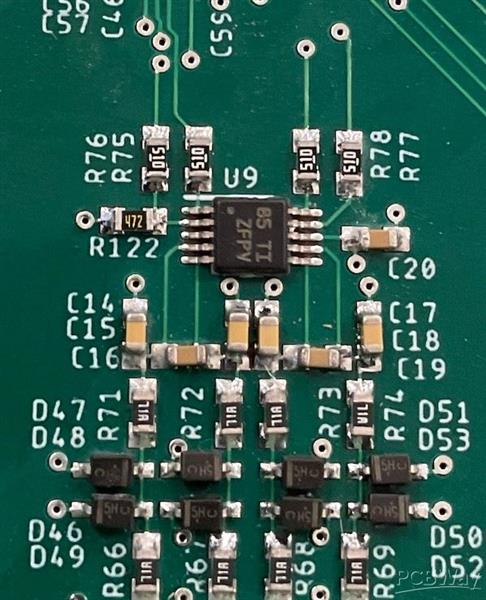

We ordered two boards to be fabricated and populated. One came back perfectly fine. The second had two solder bridges shorting out the oscillator on the microcontroller and the data line on our external ADC. We had to touch up these two spots ourselves. Other than that, the rest of the board was fine



Jun 29,2021
