Components
|
|
3.5mm Mono Audio Jack |
x 7 |
Description

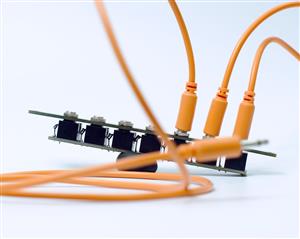

MiniMult - A simple 2HP passive multiples module for Eurorack modular synthesizers (Part 1/2)
This is a basic utility module. Passive multiples are essentially just a bunch of audio jacks connected together at the tips and ground.
The module is split into two separate boards: the front panel and the control panel. The boards are held together by the jacks, so no additional standoffs required.
The schematics and layout was made in KiCAD. Check out my Github page for more info.
More info and demos can be found on my website.
Part 1 is just the front panel. Make sure to print Part 2 as well!
Schematic and Layout
Github
https://github.com/benjiaomodular/MiniMult
Feb 18,2022
372 views
MiniMult - A simple 2HP passive multiples module for Eurorack modular synthesizers (Part 1/2)
372
0
0
Published: Feb 18,2022
Download Gerber file 12
PCBWay Donate 10% cost To Author
*PCBWay community is a shared platform and we are not responsible for any design issues.
Under the
Attribution-MIT
License.
