VOX for JS8Call Ham Radio ore Cb Radio

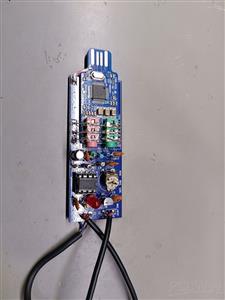

The module allows you to connect and control broadcasting during digital communication in any radio. A CM108 sound card and an LM358 operational amplifier were used. VOX sensitivity is adjusted using a potentiometer.
Mar 03,2024
399 views
VOX for JS8Call Ham Radio ore Cb Radio
2 Layers PCB 27.686 x 71.882 mm FR-4, 1.6 mm, 1, HASL with lead, Blue Solder Mask, White silkscreen
The module allows you to connect and control broadcasting during digital communication in any radio.
