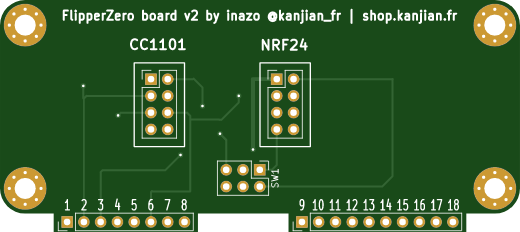

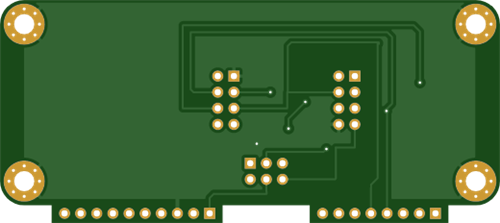

FlipperZero Board for CC1101 and NRF24
A project to create a board for add in the same board an CC1101 and NRF24 antenna for the flipperzero with a switch to switch beetween it.
Si we can in one board carry two interresting antenna. And the design is compatbile with silicon case of the flipper zero.
EDIT: 05/27/2024 => Modify the board to correct an error for the CC1101 track, and adjust size for flipperzero silicone case
May 14,2024
106 views
FlipperZero Board for CC1101 and NRF24
2 Layers PCB 36.2 x 78.7 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
A project to create a board for add in the same board an CC1101 and NRF24 antenna for the flipperzero with a switch to switch beetween it.
106
0
0
Published: May 14,2024
Download Gerber file 3
BOM(Bill of materials)
Purchase
Donation Received ($)
PCBWay Donate 10% cost To Author
File Last Updated: 2024/05/28 (GMT+8)
File update record
2024-05-2802:28:13
Gerber file is updated.
2024-05-1421:27:56
Parts List (BOM) is updated.
