Description

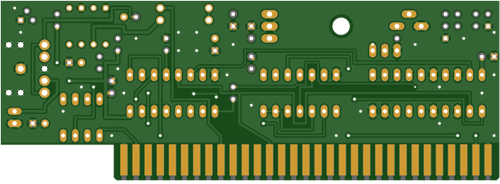

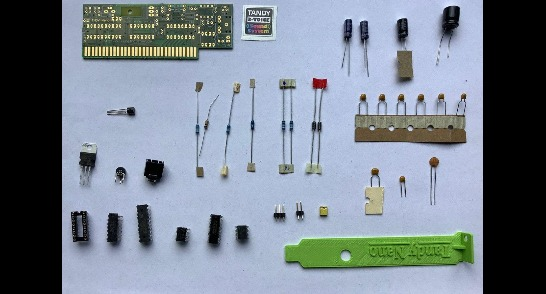

Tandy Nano v1.1 ISA Soundcard
Original Website: https://www.retrokits.de/index.php/tandy-nano-v1-1-isa-soundcard-dht/
GITHUB: https://github.com/matze79/Tandy-Nano
The Tandy Nano soundcard is functionally identical to the SMD version.
The PC-Speaker input was omitted. Also the card was built extra low to fit into a Slimline PC.
Otherwise, the function is so far identical with the SMD version.
Software and drivers are the same.
CAD-Custom parts and enclosures
Jun 06,2023
383 views
Tandy Nano v1.1 ISA Soundcard
The Tandy Nano soundcard is functionally identical to the SMD ver, PC-Speaker input was omitted. Also the card was built extra low profile.
