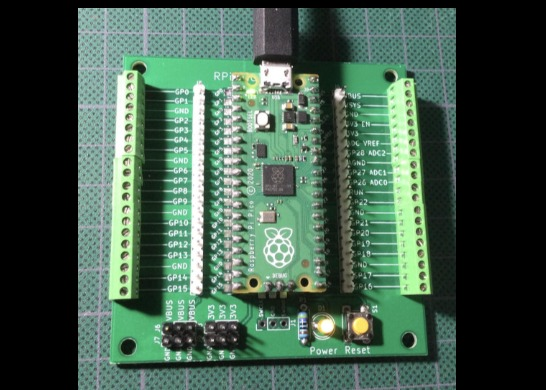

Pi Pico Breakout Board
This breakout board provides labeled RPi headers including extra 3.3V, VBUS and GND pins.
Two rows of headers can be used for male/female 2.54mm headers or 2.54mm pitch screw terminals.
The module can be surface mount soldered to the breakout board, or through hole headers can be used to plug in the Pi Pico.
There is a 3 pin SWD header for optional access to that port.
There is also a power LED and a convenient reset button for the Pi Pico.
