Speaker protection Laikov v7
Author: Александр Лайков
PCB Design: Михаил Царёв aka aitras
Speaker protection circuit for amplifier Laikov V7
For more info please visit Github page:
Code
https://github.com/diyaudioby/sp-laikov-v7
Sep 19,2019
2,329 views

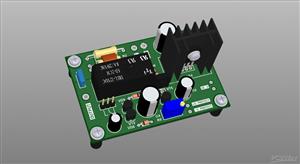

Speaker protection Laikov v7
2 Layers PCB 75 x 50 mm FR-4, 1.6 mm, 1, HASL with lead, Blue Solder Mask, White silkscreen
2329
3
0
Published: Sep 19,2019
Download Gerber file 96
BOM(Bill of materials)
File Last Updated: 2022/12/02 (GMT+8)
File update record
2022-12-0214:24:41
Parts List (BOM) is updated.
