Description
OpenGammaKit Enclosure, Assembly Parts, Assembly Guide

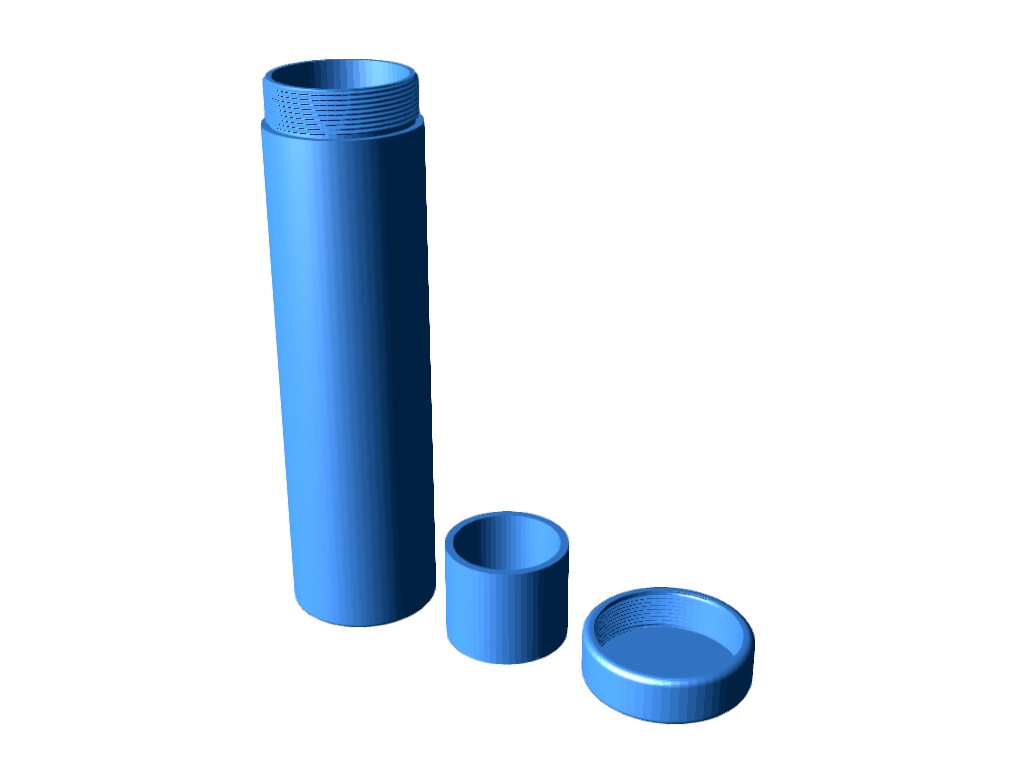

OpenGammaKit 3D models for printing and complete spectrometer assembly. Size: ⌀45mm, 166mm length. Crystal dimension: 30mmX33mm.
Parts to assemble:
- 3D printed Enclosure
- Cable Gland, 2-4.5MM, M8X0.75, link
- Cable Baseus Type-C to Type-C 100W (2m), link
- Conn Plug Micro USB TYPE B, link
- Resistor 5.1kOm, 0.25W
- Black ⌀50 mm Heat Shrink Tube 2:1 Polyolefin Cable Sleeve Insulated Wire Sleeve, link
Repository ==> Blender source file and models
Schematic and Layout
OpenGammaKit Enclosure Models
https://github.com/vikulin/OGK-3D-Models/releases
Assembly Guide
ogk-assembly-guide-v0.1.1.pdf
CAD-Custom parts and enclosures

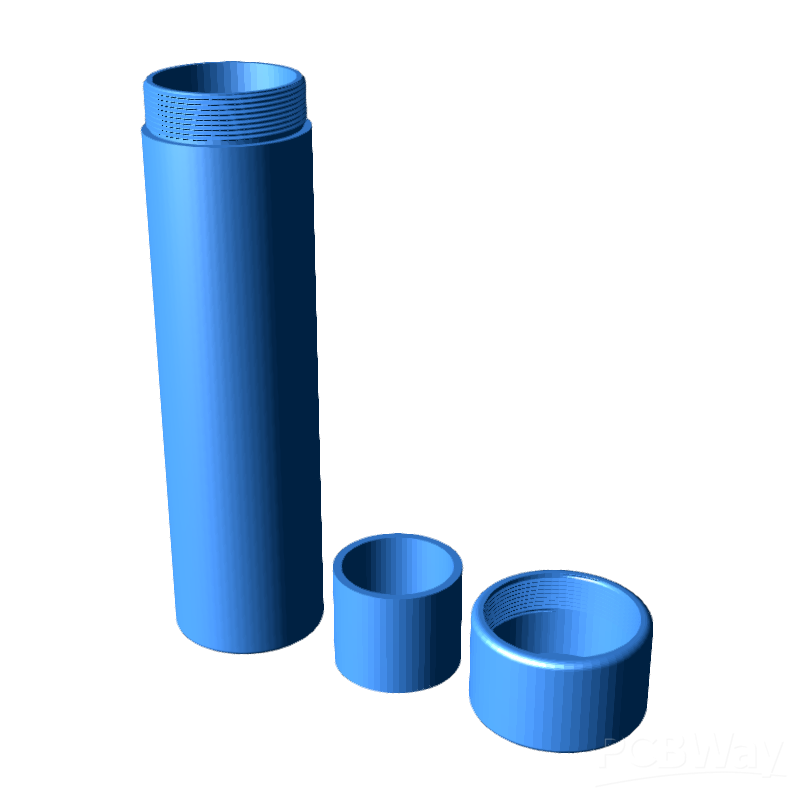

Enclosure 3D Model
ogk-v0.1-166x45x3x8.stl
Nov 01,2025
