Mesa Boogie Dual Rectifier RED CH Emulator (Bogner Ubershall)
MBDR is an op-amp based Mesa Boogie Dual Rectifier Red CH amp emulator developed by TrueVAL on the Guitar-Gear forum. Creates a unique high gain distortion effect. Also on the basis of this board you can build a Bogner Ubershall emulator and the original TrueVAL preamplifier - Modern Rock Machine. It is enough to replace several component ratings according to the chosen scheme, and you will get 3 different simulators ...
UPD 5.07.2023 add schematic in description...

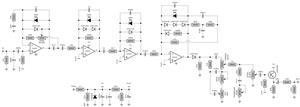

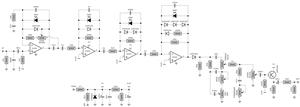

Schematic and Layout
