P-MOST-3a

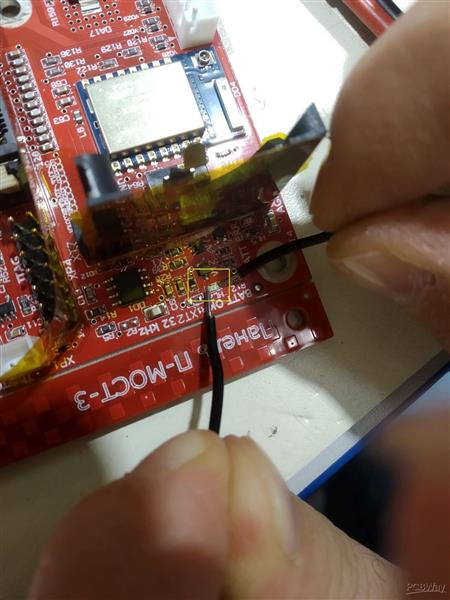

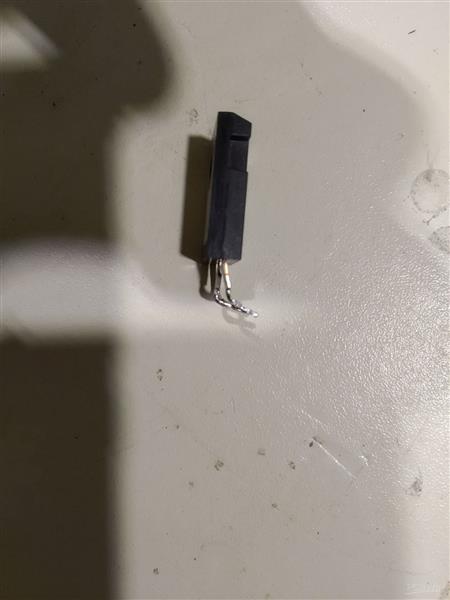

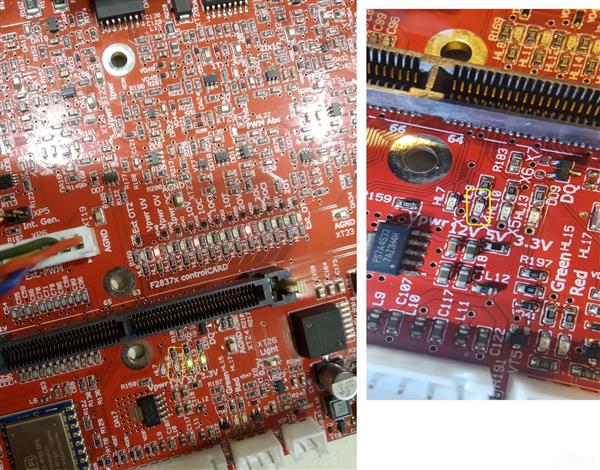

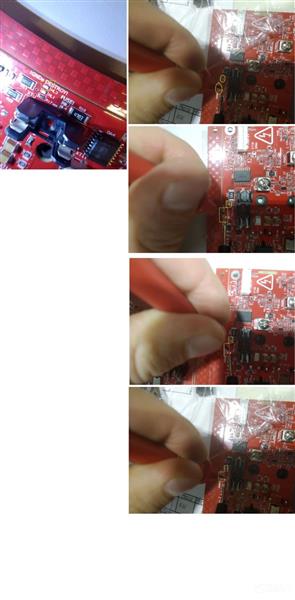

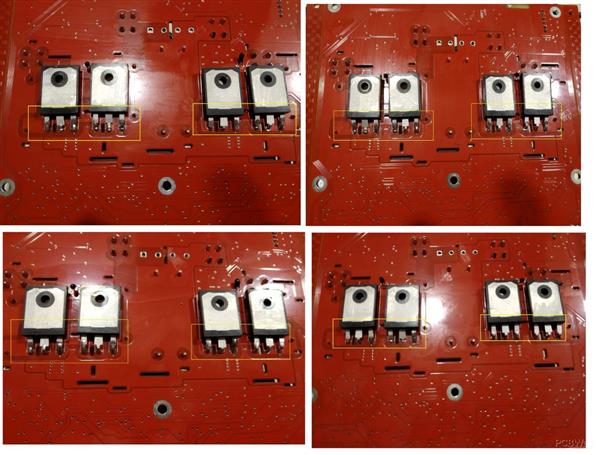

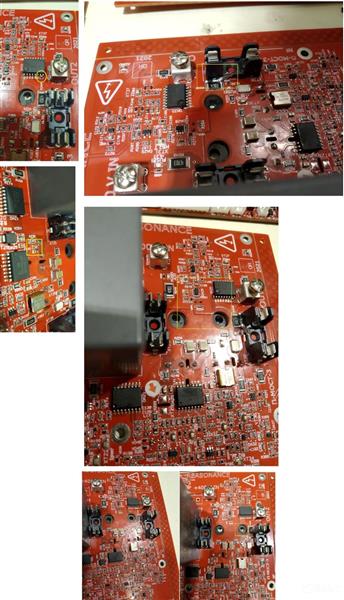

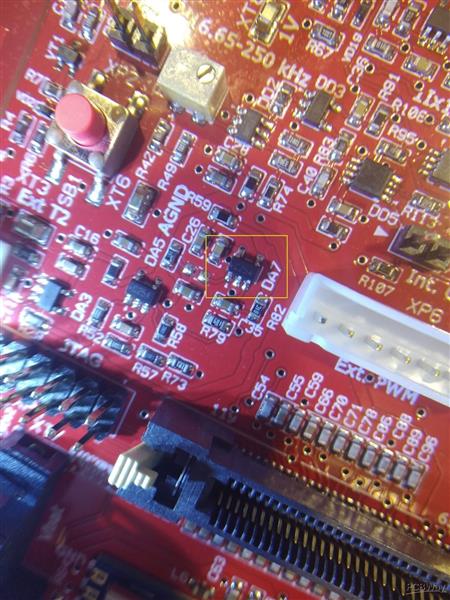

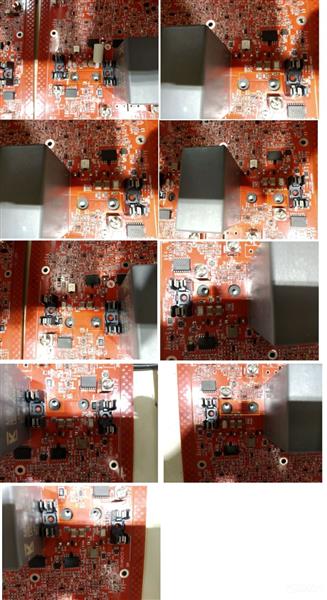

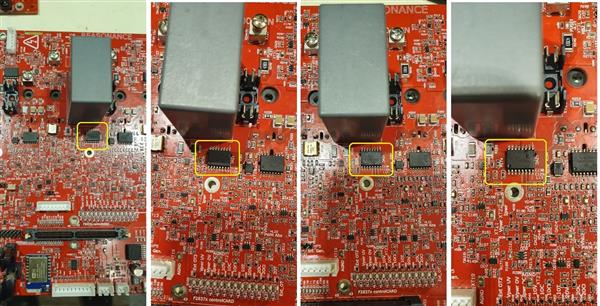

1. Four PCBs have VT13...16 with huge displacement because document "P-MOST-3 THROUGH-HOLE MOUNT" was ignored. 2. Four PCBs have VT13...16 with wrong bended leads because document "P-MOST-3 THROUGH-HOLE MOUNT" was ignored. 3. Two PCB have solder trash. 4. All PCB have pollution from flux. 5. All PCB have DA21 with wrong orientation. 6. All PCB have several LEDs with wrong polarity despite of our request to check it. 7. One PCB has overheated LED.










Sep 15,2021
