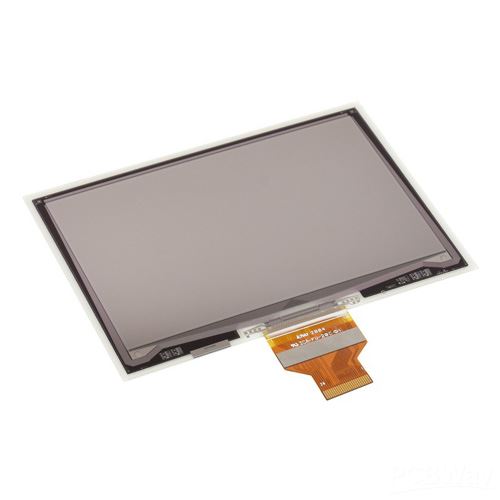

4.01inch ACeP 7-Color E-Paper E-Ink Raw Display
Low Power Consumption, Wide Viewing Angle, Paper-Like Displaying Without Electricity=
Ideal for price tags, shelf labels, industrial instruments...
Features at a Glance
- Advanced Color ePaper (ACeP) technology, supports 7-Color display
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
OPERATING VOLTAGE: 3.3V
DISPLAY COLOR: ACeP 7-Color
INTERFACE: 3-wire SPI, 4-wire SPI
GREY SCALE: 2
OUTLINE DIMENSIONS: 96.80 × 68.70mm
FULL REFRESH TIME: 15s
DISPLAY SIZE: 86.40 × 54.00mm
REFRESH POWER: 50mW (typ.)
DOT PITCH: 0.135 × 0.135mm
STANDBY CURRENT: <0.01uA (almost none)
RESOLUTION: 640×400 pixels
VIEWING ANGLE: >170°
Advantages of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Application Examples
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...
Outline Dimensions
