Sheet Metal Bending DFM Guide to Prevent Warping Tearing and Bending Deformation

In sheet metal bending and forming, warping, localized distortion, and corner tearing are common manufacturing defects. These issues typically stem from insufficient material support in the bend zone, cutouts positioned too close to the bend line, and stress concentration at corners. By optimizing flange length, cutout positioning, and bend relief structures during the design stage, you can eliminate the risk of bending deformation at the source and achieve consistent precision and structural integrity.

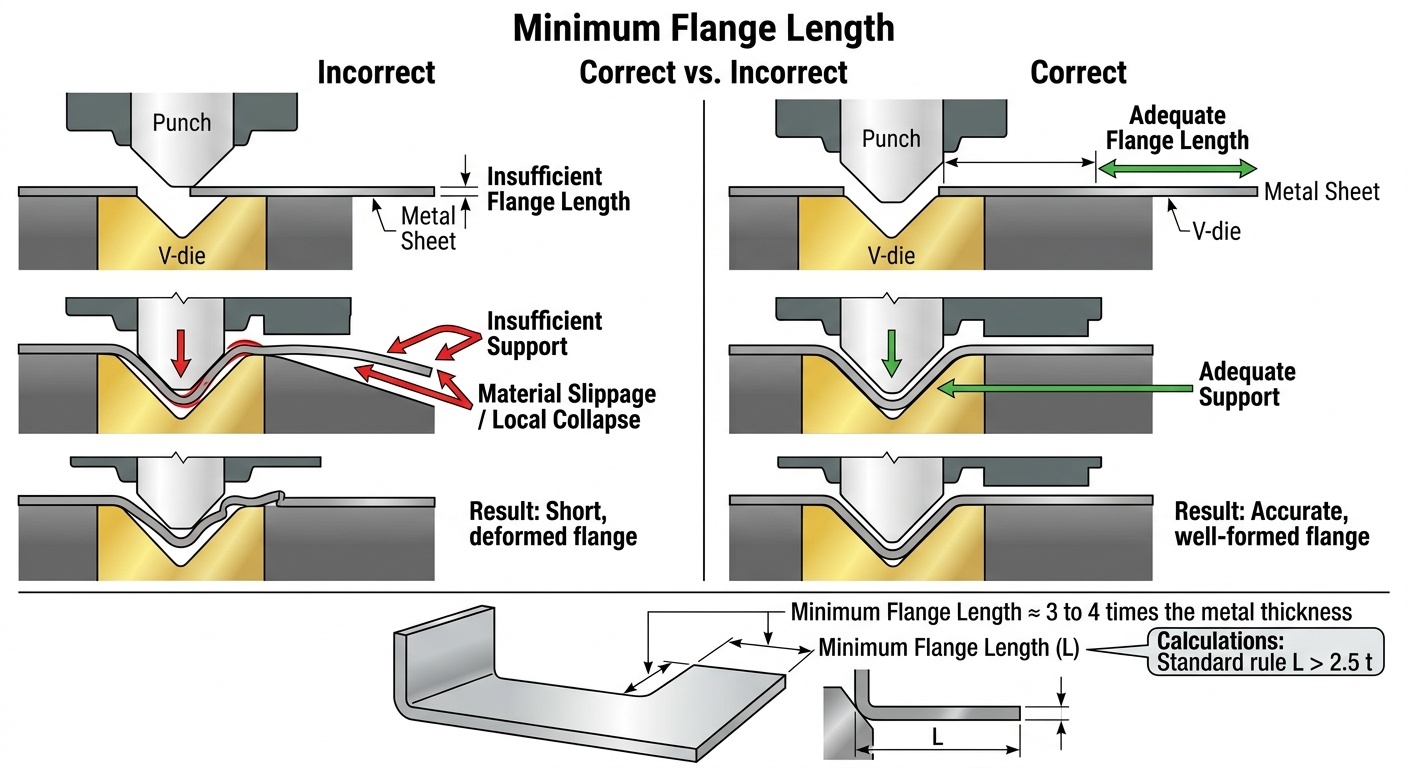

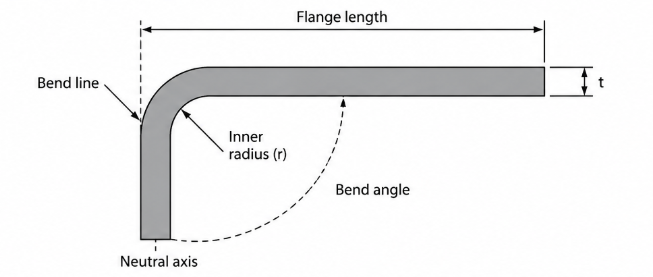

1. Ensure Adequate Support Length for Flanges

Sheet metal bending relies on upper and lower tooling to apply forming forces, which requires flanges on both sides of the bend line to have sufficient length to form a continuous, stable load-bearing surface. Insufficient flange length prevents the sheet metal from receiving adequate die support, leading to material slipping, stretching, or localized collapse during bending.

Different material thicknesses impose distinct requirements on minimum flange length and support coverage across the total bend length:

• Sheet metal ≤ 0.135 in (3.43 mm): At least 50% of the total bend length must meet the minimum flange length requirement on both sides of the bend line.
• Medium-thick plate at 0.187 in (4.75 mm) and 0.250 in (6.35 mm): Both flanges must meet the minimum flange length requirement across 100% of the total bend length.

Thicker materials require higher forming forces, making continuous flange support even more critical. If support length is insufficient, thick plates are prone to material shift, over-stretching, and out-of-tolerance bend angles.

2. Control Cutout Placement and Coverage Ratio in Bend Zones

Placing holes, notches, edge cutouts, or other feature cuts too close to the bend line causes severe feature distortion due to plastic material flow during sheet metal bending. This also weakens structural strength within the bend zone, further magnifying bending deformation risks.

For standard air bending processes, cutouts should generally maintain a safety distance of at least 1/2 of the lower V-die opening width from the bend line to keep features outside the primary tooling engagement zone. Specific clearance requirements should be verified based on material type, sheet thickness, and actual tooling parameters. Designers can use manufacturing simulation software to flag high-risk deformation zones and validate feature placement.

In addition to safety distance, you must limit the total percentage of cutouts within the bend warning zone to maintain adequate material support:

• Materials ≤ 0.135 in (3.43 mm): Cutout coverage within the bend zone should not exceed 50%.
• Materials ≥ 0.187 in (4.75 mm): A minimum of 85% solid, unbroken material must be retained across the bend length.

3. Implement Proper Bend Relief and Clearance Features

When a bend meets a part corner or when adjacent bends are spaced too closely, the material at the corner experiences multi-axial stress concentration. This frequently results in severe wrinkling, material bulging, or corner tearing.

Standard DFM for sheet metal provides two effective solutions for these scenarios:

• Relocate the bend line: Move the bend line away from nearby cutouts or adjacent bends whenever structural constraints allow. This expands the solid material area within the forming zone and redistributes forming stresses.
• Add dedicated bend relief features: Incorporate relief cuts or corner reliefs at bend ends and intersecting corners. This relieves stress concentration, provides necessary clearance for material flow, prevents corner bulging and adjacent flange interference, and minimizes tearing risks.

4. Adapt Design Guidelines to Material Characteristics

Formability varies significantly across material grades; standard design parameters cannot be universally applied without adjustments.

• Non-metallic sheets (e.g., PMMA): Follow specialized rules for bend radii, flange lengths, and relief structures. Polycarbonate is particularly prone to cracking along bend lines and must not be designed using standard metallic DFM for sheet metal rules.
• Heavy-gauge metal plates: Higher tonnage requirements demand stricter flange support. Avoid placing large, asymmetrical, or square cutouts within the active tooling engagement area to mitigate risks of stretching, tearing, and warping.

5. Sheet Metal Bending DFM Checklist

Review these essential checklist items prior to submitting your design for manufacturing:

• Does the flange length meet the minimum requirement for the specified material and thickness?
• Are holes, slots, notches, and cutouts kept at a safe clearance distance from the bend line?
• Is the cutout coverage ratio within the bend warning zone compliant with thickness limits?
• Are proper bend relief cuts provided at bend terminations and corner intersections?
• Are large, square, or asymmetrical cutouts avoided within the tooling zone on thick plates?
• Are adjacent bends evaluated for structural interference and stress accumulation risks?
• Do non-metallic parts (such as polycarbonate) follow material-specific bending guidelines?
• Have you verified your model against the manufacturing platform's automated DFM and design rules?

Conclusion

Preventing bending deformation fundamentally relies on matching part design to the physical forces of the sheet metal bending process. Following robust DFM for sheet metal principles guarantees continuous material support and structural strength throughout the forming zone. Compliant designs prevent cosmetic and structural defects, improve dimensional consistency, and significantly cut prototyping rework costs.
