  2. What Causes PCB Leakage Current and How to Reduce Electrical Leakage in Circuits

What Causes PCB Leakage Current and How to Reduce Electrical Leakage in Circuits

by: Jul 03,2026 274 Views 0 Comments Posted in PCB Design & Layout

leakage current electric current leakage electrical leakage pcb leakage current

In high-voltage electronics, medical devices, industrial control systems, and precision measurement circuits, PCB leakage current can significantly affect system stability and measurement accuracy, even at nanoampere levels. Improper layout or insulation design may lead to signal drift, increased power loss, or long-term reliability issues.

PCB leakage current is the unintended current flowing between conductors through insulating materials or PCB surface paths. It is mainly influenced by layout design, material properties, contamination, and environmental conditions such as humidity.

During the early design stage, PCBWay Design Service provides DFM support and high-voltage PCB layout optimization suggestions to help engineers reduce leakage risk and improve design reliability.



What Is PCB Leakage Current?

In high-voltage power systems, medical electronics, industrial control, and precision measurement circuits, PCB leakage current is a critical reliability factor affecting long-term stability and accuracy.

Even nanoampere (nA) or microampere (μA) levels of electrical leakage can cause signal drift, measurement errors, increased power consumption, and insulation degradation in high-impedance circuits.

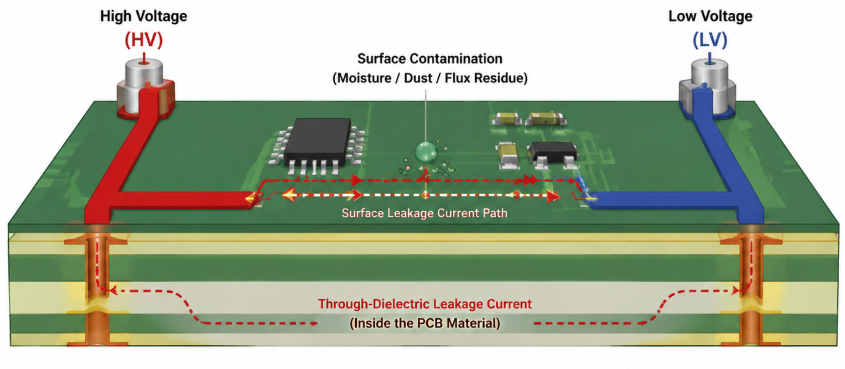

PCB leakage current refers to unintended current flowing between conductors of different potentials through PCB insulating materials or surface contamination paths. It is influenced by material properties, voltage level, humidity, and contamination conditions.



What Causes PCB Leakage Current?

Environmental Contamination and Moisture

Moisture is one of the primary drivers of electrical leakage in PCB systems.

Fiberglass substrates and solder masks naturally contain micro-pores that absorb water over time. Since water is a polar conductive medium, increased humidity significantly reduces surface and volume resistance, increasing leakage current.

Dust, oil, and salt mist form conductive contamination layers, especially in coastal or industrial environments, accelerating PCB leakage current paths.

Flux residues and ionic contamination further increase conductivity by forming moisture-sensitive conductive films on the PCB surface.


PCB Material Insulation Degradation

Material properties directly impact leakage current performance.

Low-cost FR-4 materials typically exhibit higher moisture absorption and faster dielectric degradation under thermal cycling. Aging solder mask layers may lose insulation protection, exposing copper traces and increasing electrical leakage risk.

Internal delamination and microcracks can trap moisture, creating hidden leakage pathways across PCB layers.


Improper PCB Layout Design

Poor layout design is a major contributor to leakage current in high-voltage PCBs.

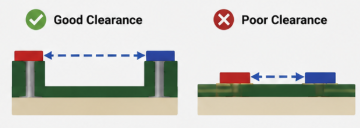

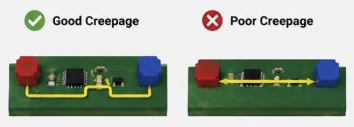

If creepage distance and clearance do not follow IPC-2221B standards, leakage current and insulation breakdown risk increase significantly.

Sharp trace corners, large high-voltage copper areas, and insufficient separation between high-voltage and low-level signals can intensify electric field concentration, leading to surface leakage.

In high-impedance circuits, improper layout can directly impact measurement accuracy due to leakage current coupling.


Manufacturing and Aging Effects

Soldering defects such as solder bridges, solder balls, and micro-cracks can create unintended leakage current circuits.

Over time, oxidation, contamination, and thermal aging degrade insulation performance. Repeated high-voltage stress may also lead to carbonization, forming conductive carbon paths that permanently increase electrical leakage.



How to Reduce PCB Leakage Current?

Material Selection for Low Leakage Design

Use low-moisture-absorption FR-4 materials with high volume resistivity for high-voltage applications.

Select low-ionic-residue solder mask materials to minimize contamination-driven leakage current.


PCB Layout Optimization

Follow IPC-2221B standards for creepage distance and clearance design.

  • Increase spacing in high-voltage regions
  • Avoid sharp corners in traces
  • Minimize large copper areas in high electric field zones

For high-impedance analog circuits, use guard ring design to block surface leakage current and improve measurement stability.


Cleaning and Assembly Control

After soldering, perform thorough cleaning to remove flux residues:

  • Isopropyl alcohol cleaning
  • Deionized water rinse
  • High-temperature baking to remove moisture

Strict ionic contamination control is essential in medical and industrial systems to prevent electrical leakage paths.


Conformal Coating Protection

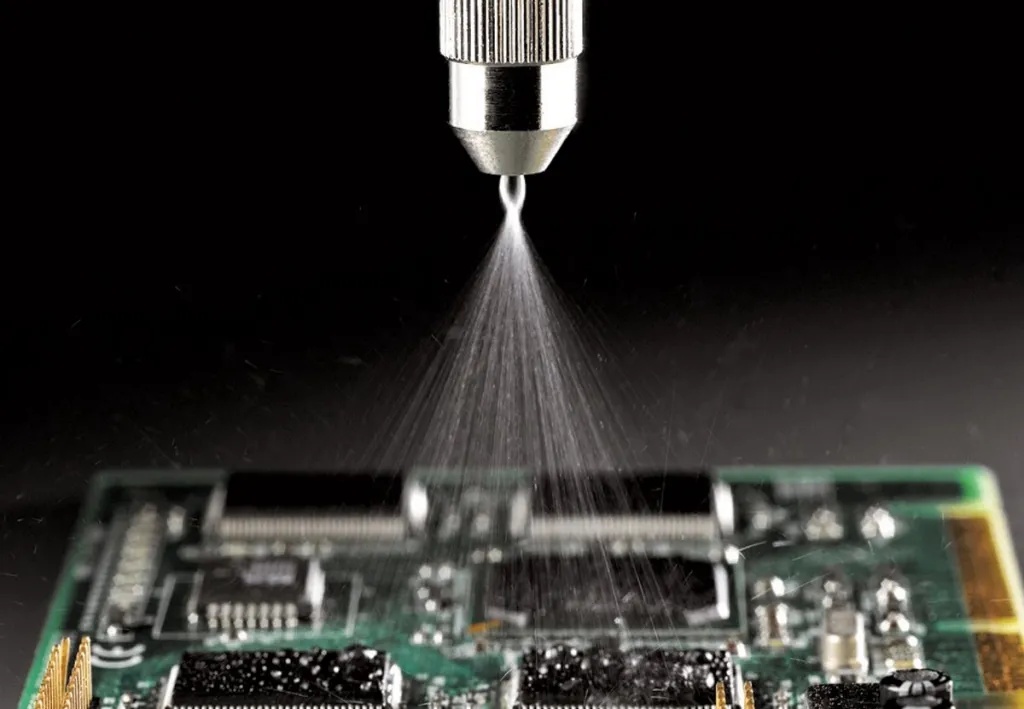

Apply conformal coating in high-humidity and high-contamination environments to prevent leakage current formation.

Common coatings include acrylic, silicone, and polyurethane. Polyurethane provides higher insulation strength for high-voltage applications.

Ensure complete coating coverage without bubbles, voids, or exposed copper areas.


System-Level Protection Design

Use sealed enclosures with controlled ventilation to reduce condensation.

Optimize thermal management to reduce long-term material aging, which helps slow down leakage current growth over time.



Conclusion

PCB leakage current is not caused by a single factor but results from the combined effects of materials, layout design, manufacturing quality, and environmental conditions.

While small leakage current may only cause measurement drift or power loss, uncontrolled electrical leakage can eventually lead to insulation breakdown, arcing, and system failure in a leakage current circuit.

By optimizing design, selecting proper materials, improving manufacturing cleanliness, and applying environmental protection strategies, engineers can effectively control leakage current and improve long-term reliability of high-voltage and precision electronic systems.

For high-voltage and precision applications, PCBWay Design Service offers professional PCB design review and DFM optimization to help ensure safer and more reliable products.
