Many hardware failures that appear random—such as USB communication errors, MCU resets, touch-screen malfunction, or unexplained field failures—can often be traced back to Electrostatic Discharge (ESD).
Although an ESD event may last only a few nanoseconds, the resulting voltage can exceed several kilovolts and permanently damage semiconductor devices.
Electrostatic Discharge (ESD) is a short-duration high-voltage pulse generated when a charged object comes into contact with or approaches an electronic component. It is one of the leading causes of reliability issues in consumer electronics, industrial control systems, and communication equipment.
Static charges can accumulate through friction, human handling, automated machinery, and material transportation. In extreme cases, ESD voltages may exceed 20kV, with rise times of only 1–10ns and peak currents reaching 10A. These fast transient pulses can easily damage semiconductor gate oxides and PN junction structures, resulting in performance degradation or permanent device failure.
Depending on the severity of damage, ESD-related failures are generally classified into three categories:
ESD threats can occur at both the device level and the system level. Device-level ESD typically occurs during wafer fabrication, packaging, and PCB assembly processes, while system-level ESD enters through external interfaces, buttons, and metal enclosures in finished products. The latter is a critical consideration for EMC compliance and certification testing, including CE and FCC requirements.
Because ESD pulses are extremely fast and capable of generating large peak currents, an effective ESD protection circuit design must provide a low-impedance discharge path that can respond within nanoseconds and safely divert transient energy to ground.
Transient Voltage Suppression (TVS) diodes are the most widely used ESD protection devices for low-voltage interfaces and communication ports.

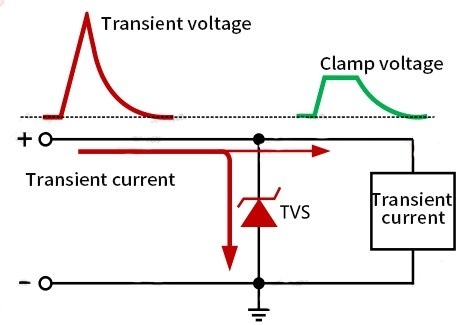

Under normal operating conditions, a TVS diode remains in a high-impedance state. During an ESD event, it enters avalanche breakdown within nanoseconds and provides a low-resistance path to ground.

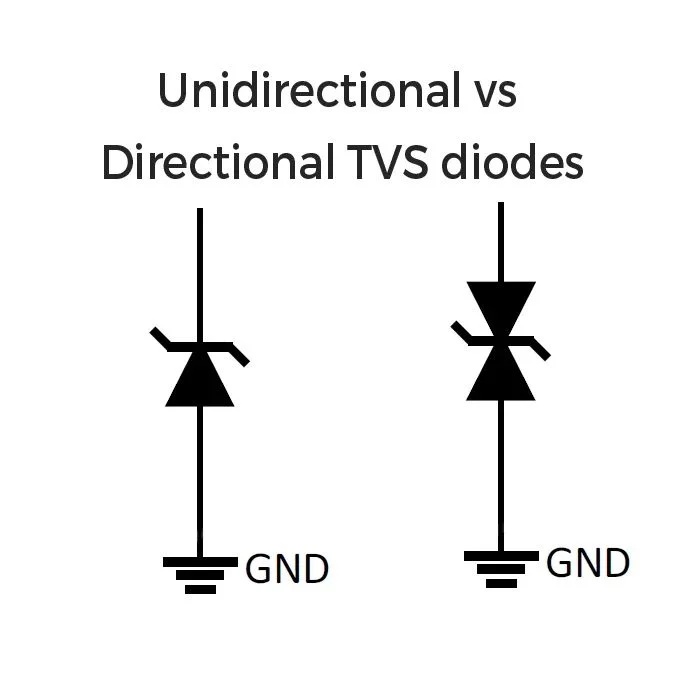

TVS diodes are available in two primary types:
A typical differential interface protection scheme places bidirectional TVS diodes between each signal line and ground. For high-speed interfaces, small series resistors may be added to improve signal integrity and reduce transient ringing.
Basic clamp circuits can be implemented using conventional diodes connected between the signal line, power rail, and ground.
When the signal voltage exceeds the supply voltage, the upper diode conducts. When the voltage falls below ground potential, the lower diode conducts, limiting the signal voltage to a safe range.
This solution offers low cost and simple implementation but generally provides weaker protection than dedicated TVS devices. Schottky diodes are often preferred because of their lower forward voltage drop and faster switching characteristics.
Metal Oxide Varistors (MOVs) offer fast response times and are widely used in cost-sensitive consumer products. However, their relatively large capacitance makes them unsuitable for high-speed signal lines.
Gas Discharge Tubes (GDTs) can withstand extremely large surge currents generated by lightning strikes or power-line transients. Since GDTs respond more slowly than TVS diodes, they are commonly used in multi-stage protection architectures.
A typical protection structure includes:
This approach is widely used in industrial communication systems and outdoor power interfaces.
Modern CMOS devices typically include built-in ESD protection structures at I/O pads. Common implementations include GGNMOS and SCR structures.
GGNMOS devices discharge ESD current through parasitic bipolar transistor action, while SCR structures provide even higher current-handling capability and lower on-resistance.
Although these integrated structures provide basic protection, their size and energy-handling capability are limited. Therefore, external board-level protection remains essential for interfaces such as USB, Ethernet, RS485, CAN, and USB Type-C.
Additional passive components are frequently incorporated into an ESD protection circuit:
The ESD robustness of semiconductor devices and electronic products is evaluated using standardized test models.
HBM simulates electrostatic discharge from a human body and uses a 100pF capacitor in series with a 1.5kΩ resistor.
Standard: JESD22-A114.
MM simulates discharge from automated handling equipment. Since there is no series resistance, discharge currents are significantly higher than HBM.
Standard: JESD22-A115.
CDM simulates a charged device discharging directly to ground. It is especially critical for modern high-density semiconductor devices with thin gate oxides.
FIM evaluates ESD events caused by external electric field induction and is commonly used in automotive and industrial applications.
A standard step-stress test gradually increases the ESD voltage level while monitoring leakage current, impedance, and functional performance until failure occurs.
An effective ESD protection circuit design depends not only on component selection but also on PCB layout quality. Poor routing can significantly reduce the effectiveness of TVS diodes and clamp circuits.
TVS diodes and clamp devices should be located as close as possible to connectors, switches, and other ESD entry points.
The discharge path from the protection device to ground should be short and wide, with multiple grounding vias to minimize inductance.
A solid ground plane provides a low-impedance path for ESD current dissipation while improving EMC performance.
Avoid fragmented ground regions, as they can increase local ground potential and reduce protection effectiveness.
Keep MCUs, analog circuits, and high-speed differential signals away from external interfaces and high-voltage power circuits.
Ground shielding can be added around sensitive signal paths to reduce ESD coupling.
For products with metal enclosures, connector shields and metal buttons should be connected to a low-impedance grounding structure.
Industrial equipment often benefits from single-point grounding to minimize ground-loop interference.
Long traces increase parasitic inductance and amplify transient voltage spikes.
High-speed interfaces such as USB and Ethernet should be routed as short as possible, with impedance control and proper termination where required.

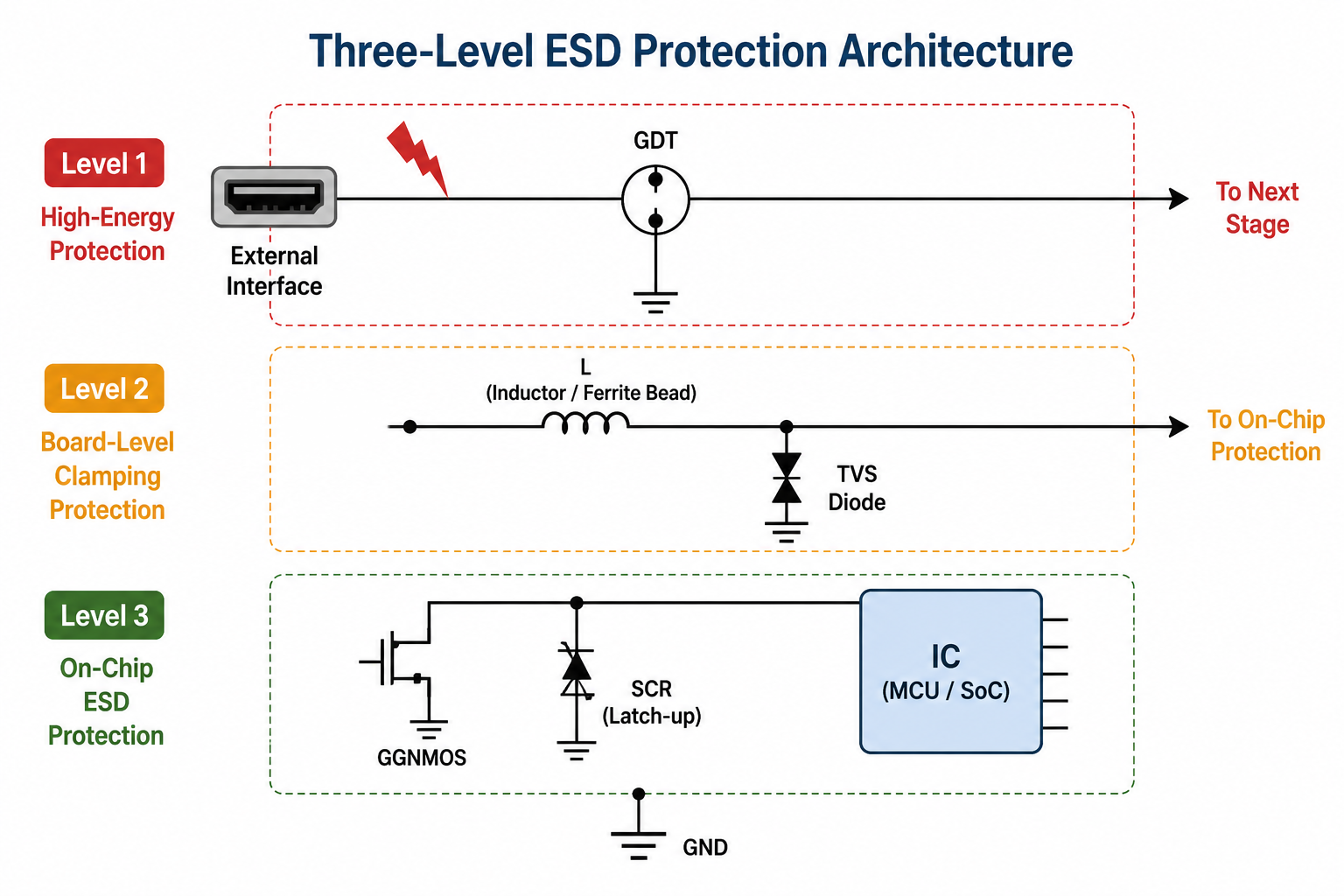

A robust ESD protection circuit typically follows a three-level protection strategy:
GDTs and high-power MOVs absorb lightning surges and large transient overvoltages before they reach sensitive electronics.
TVS diodes and clamp circuits provide nanosecond-level protection by limiting transient voltages to safe levels.
Integrated GGNMOS and SCR structures provide the final layer of protection against residual transient energy.
Even when ICs include built-in ESD protection, external TVS devices are still strongly recommended. Board-level protection components handle most of the transient energy, reducing stress on the semiconductor device and improving long-term reliability.
ESD protection is not achieved through a single component. It is a system-level engineering discipline involving semiconductor technology, schematic design, PCB layout, grounding strategy, enclosure design, and EMC compliance.
A successful ESD protection circuit design begins with understanding the target application and required test standards, followed by proper selection of TVS diodes, MOVs, GDTs, and filtering components. Equally important are PCB layout practices that minimize inductance and provide low-impedance discharge paths.
Through PCBWay Design Service, our engineering team helps customers optimize ESD protection circuits, select suitable protection devices, improve PCB layouts, and evaluate EMC/ESD risks early in the development process. This reduces certification challenges, improves product reliability, and helps ensure stable long-term operation in real-world environments.
