In the eyes of many hardware engineers, the USB interface may seem like a relatively simple peripheral — just two differential signal lines, a connector, and a few protection components. However, engineers who have experienced real-world product development know that USB is actually one of the most failure-prone interfaces in a hardware design.
Intermittent device recognition, unstable high-speed data transmission, system crashes caused by ESD strikes, or USB 3.0 interfaces that fail to reach their rated bandwidth — in many cases, these issues are not caused by the IC itself, but by hidden PCB design problems.
Especially with USB 3.0 and above, as well as USB Type-C interfaces, signal frequencies have already entered the high-speed digital domain. Designing them with the same mindset used for low-speed GPIO signals will inevitably lead to signal integrity issues.
This article provides a comprehensive analysis of USB interface design, starting from connector pin functions and extending to practical PCB layout guidelines, helping engineers establish a systematic approach to reliable USB hardware design.
A common mistake among beginners is confusing USB versions with connector types. These two concepts must be clearly distinguished.
USB version refers to the communication protocol standard and determines the maximum data transfer rate: USB 2.0: up to 480 Mbps ; USB 3.0 / USB 3.1 Gen 1: up to 5 Gbps ; USB 3.1 Gen 2: up to 10 Gbps.
Connector type refers to the physical interface, such as Type-A, Micro-B, and Type-C. The connector itself is only the physical carrier of the USB protocol.
The most commonly misunderstood example is USB Type-C.
USB Type-C is a connector specification, not a USB speed standard. A Type-C connector may support only USB 2.0, or it may support USB 3.1 Gen 2, Thunderbolt, or other advanced protocols.
The main advantages of Type-C include reversible plug orientation, compact mechanical design , flexible pin multiplexing capability and support for higher power delivery and higher data rates
However, these advantages also make Type-C significantly more complex to design compared with traditional USB interfaces.

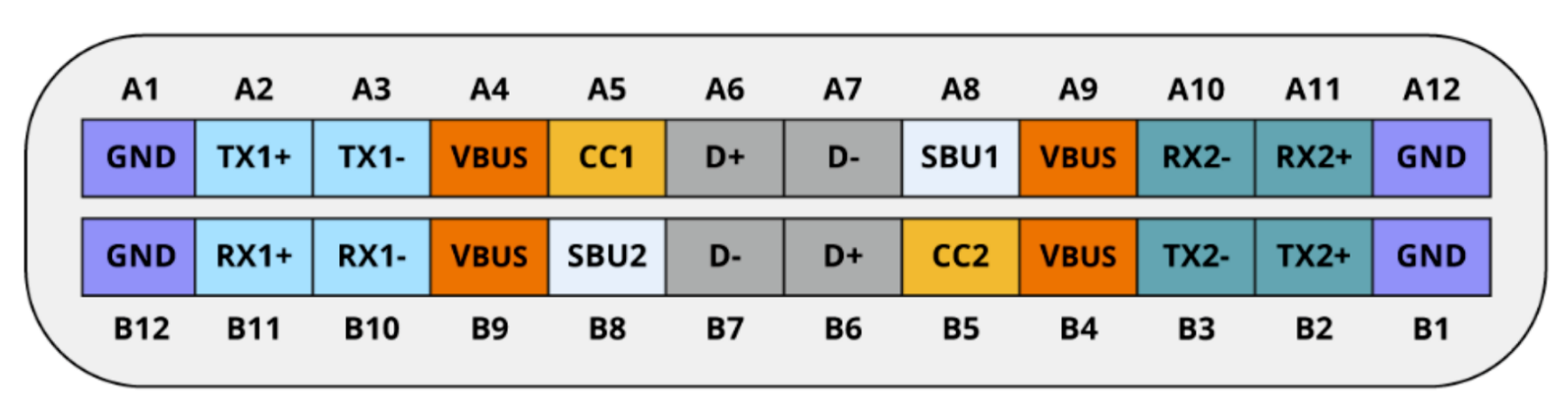

The USB Type-C connector adopts a symmetrical 24-pin design, which provides the physical foundation for reversible insertion. The figure below shows the pin arrangement of a standard Type-C receptacle.
The following sections explain the functions of each pin group in detail.
The Type-C connector contains two symmetrical sets of D+ / D- pins. However, these pins are internally connected together, meaning that only one USB 2.0 differential channel is actually used.
This redundant design exists entirely to support the reversible insertion feature. Regardless of the plug orientation, one set of differential pairs will always be correctly connected.
VBUS and GND are the main paths for power delivery and signal return.
By default, VBUS provides a 5V supply voltage, which is the basic power standard for USB devices.
With support from the USB Power Delivery (PD) protocol, VBUS voltage can be negotiated up to 20V, with a maximum current of 5A, providing up to 100W of power. This is sufficient to power high-power devices such as laptops.
The multiple parallel VBUS and GND pins serve two purposes: Reduce contact resistance under high-current conditions and provide a more complete shielding and return path for high-speed signals.
The connector contains two sets of RX differential pairs and two sets of TX differential pairs. In USB 3.0 / 3.1 mode, only one RX pair and one TX pair are actually used. The active pair depends on the plug insertion orientation.
Therefore, the circuit side requires a multiplexer (MUX) to switch the signal path, ensuring that data always travels through the correct channel.
It is worth noting that these high-speed differential pairs are not limited to USB protocols. When the interface operates in Alternate Mode, these pins can carry third-party video protocols such as DisplayPort and HDMI. In some applications, all high-speed lanes can even be allocated for extended functions.
This capability is the hardware foundation behind the “one port for multiple applications” feature of USB Type-C.
The CC pins are the “intelligent control center” of the USB Type-C interface and are responsible for multiple key functions, including cable insertion detection, plug orientation detection, source current capability identification, as well as USB PD protocol and Alternate Mode communication.

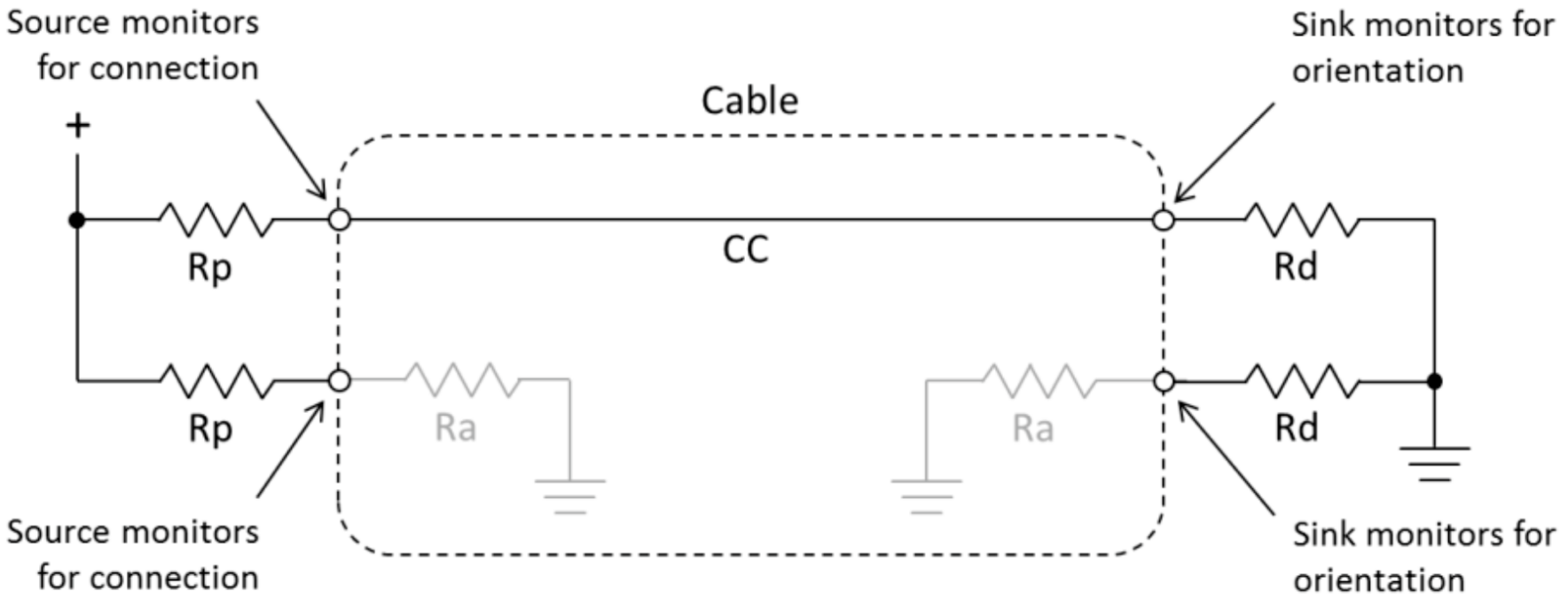

Their operating principle is based on the resistor detection mechanism:
When no cable is connected, the CC pin on the host side remains at a high voltage level. After the cable is inserted, only one CC pin forms a complete resistor divider circuit, while the other CC pin remains floating. By detecting the voltage difference between the two CC pins, the host can determine whether a cable is connected and identify the plug insertion orientation.
At the same time, the steady-state voltage level on the CC line also carries current capability information:
The device can determine the maximum available current from the power source by detecting this voltage level.
For high-speed or high-power E-Marker active cables, the cable contains an electronic marker chip and signal conditioning circuits, which require external power to operate.
The VCONN pin is designed specifically for this purpose. It provides a 5V supply with a maximum power capability of 1W to power the electronic components inside the cable.
After the system identifies an active cable through the Ra resistor detection mechanism, the CC pin connected to the cable side is switched into VCONN power supply mode, providing power to the internal cable electronics.
These two low-speed signal pins are auxiliary channels.
Under normal USB operation, they remain unused and only become active when Alternate Mode is enabled. They are mainly used for transmitting auxiliary channel signals.
The schematic is only the first step of the design process. The real factor determining USB reliability is the PCB layout and routing.
USB signals are typical high-speed differential signals. Any impedance discontinuity, broken return path, or excessive crosstalk can directly result in communication failures.

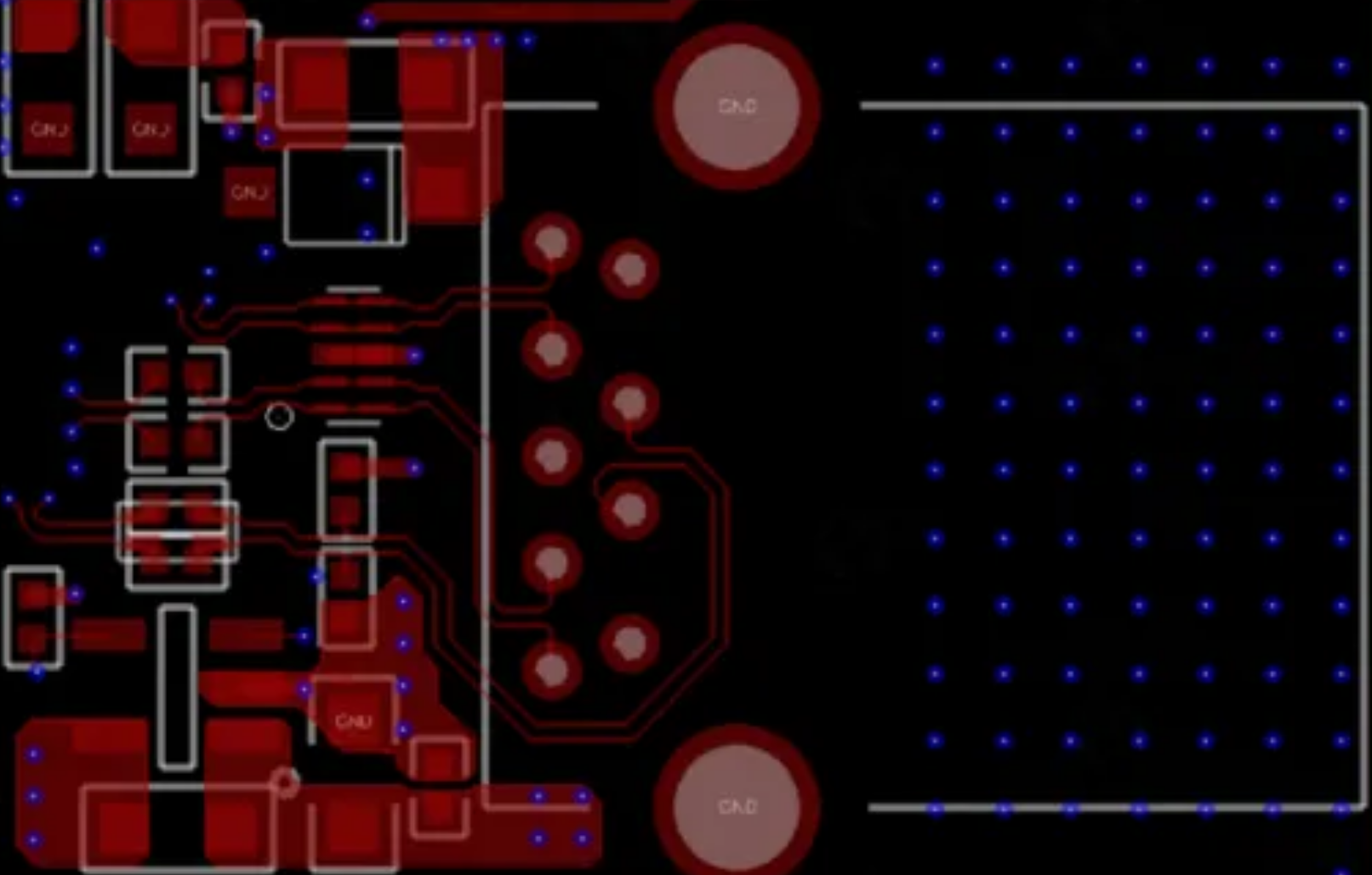

Before routing begins, component placement should be carefully planned. The location of key components directly determines the upper limit of signal quality.
First, Place the Connector Close to the Board Edge
The USB connector should be placed close to the PCB edge or mechanical opening.
This is not only required for mechanical assembly but also helps minimize differential trace length.
Shorter traces make impedance control easier and reduce signal reflection and attenuation.
Second, Place ESD Protection and Common-Mode Choke Close to the Connector
USB is a hot-plug interface, making ESD one of the biggest threats.
ESD protection components must be placed as the first protection stage after the connector.
The recommended protection sequence is:Connector → ESD Protection Device → Common-Mode Choke → RC Filtering → Main Controller
This sequence should not be reversed.
If the ESD protection device is placed too far away, the transient voltage caused by electrostatic discharge may enter the main circuit before being suppressed.
Third, Reserve Appropriate Manufacturing Clearance
Components should not simply be placed as close as possible to the connector.
Sufficient spacing must be reserved for stencil printing, manual soldering, rework and maintenance.
Otherwise, manufacturing yield and serviceability may be affected.
Fourth, Plan High-Speed Differential Signal Paths in Advance
For USB 3.0 RX/TX signals especially, the shortest and cleanest routing path should be reserved during the placement stage.
This prevents situations where components block the ideal routing path later, forcing unnecessary detours.
For both USB 2.0 and USB 3.0, the differential impedance must be controlled within 90Ω ±10%.
Impedance mismatch can cause signal reflection, eye diagram degradation, and eventually lead to data errors or even communication failure.
Several fundamental rules must be followed for impedance control:
This significantly increases the signal loop area, causing impedance degradation and increased electromagnetic radiation.
Differential signals rely on the voltage difference between two traces to transmit data. If the D+ trace is significantly longer than the D- trace, the arrival time of the two signals at the receiver will become inconsistent, causing timing skew.
This skew converts differential signals into common-mode noise, reducing signal margin and increasing EMI problems.
In conventional designs, the length mismatch within a USB 2.0 differential pair is recommended to be controlled within 5 mil, while the length mismatch of high-speed Type-C differential pairs is recommended to be controlled within 6 mil.
However, it is important to remember that length matching is always a secondary consideration. The correct approach is to first make the main signal path short, straight, and with minimal vias while maintaining impedance continuity. Only then should small-scale length compensation be applied locally.
Forcing serpentine traces or adding unnecessary vias just to achieve length matching is a typical case of focusing on the wrong priority.
This is one of the most easily overlooked issues, but it can have a significant impact on system reliability.

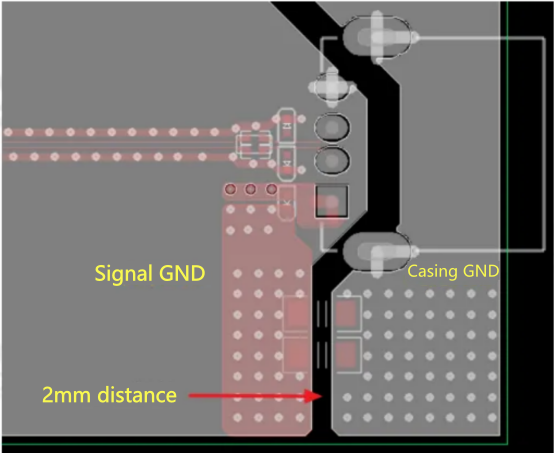

The metal shell of the USB connector should not simply be connected directly to the system ground.
When an ESD strike enters through the connector, directly connecting the shell to the system ground allows the transient current to flow into the internal ground plane and couple into sensitive signals, potentially causing system crashes or damage.
The correct approach is: “Discharge first, connect later.”
For designs requiring a single-point connection, a high-voltage capacitor or a small resistor can be used to connect the protective ground and system ground at an appropriate location, balancing ESD discharge performance and DC potential consistency.
USB Type-C has more pins and more complex functions. In addition to the general design rules mentioned above, there are several specific design considerations that need special attention.
A complete USB Type-C interface includes two TX differential pairs, two RX differential pairs, and one USB 2.0 D+/D- differential pair.
Do not assume that USB 2.0 signals can be routed casually just because their data rate is relatively low. Also, unused high-speed pins should not be ignored.
All differential pairs should be routed according to high-speed design principles, including:
Sufficient spacing should be maintained between differential pairs and between differential pairs and other signal traces. A spacing of at least 3 times the trace width is recommended to reduce crosstalk risk.
USB 3.0 high-speed signals typically require series AC coupling capacitors.
For the TX path, the coupling capacitors should be placed as close as possible to the connector side.
For the RX path, the coupling capacitors are usually placed closer to the main controller side.
The placement is not arbitrary. It directly affects impedance continuity and the impact of signal reflection. Incorrect placement can degrade high-speed signal eye diagrams.
The CC pins are responsible for critical protocol communication and should not be treated as ordinary GPIO signals.
During routing, sufficient trace width should be maintained, the routing path should be kept as short as possible, and the traces should be kept away from high-frequency interference sources.
The pull-up / pull-down resistors on the CC pins and the VCONN switch components should be placed as close as possible to the connector pins to minimize the impact of parasitic parameters on detection accuracy.
For designs supporting high-current PD applications, the VBUS trace width must be calculated according to the maximum current requirement.
When multiple power pins are connected in parallel, current distribution should be considered carefully to prevent excessive current concentration on a single trace.
For 20V/5A applications, it is recommended to increase copper thickness appropriately or use multiple parallel traces to provide sufficient current capacity.
Adequate current margin should also be reserved along the power path to prevent excessive heating and voltage drop.
USB Power Delivery (USB PD) is a core feature of the USB Type-C ecosystem. It uses half-duplex serial communication through the CC pins to perform power negotiation between devices.

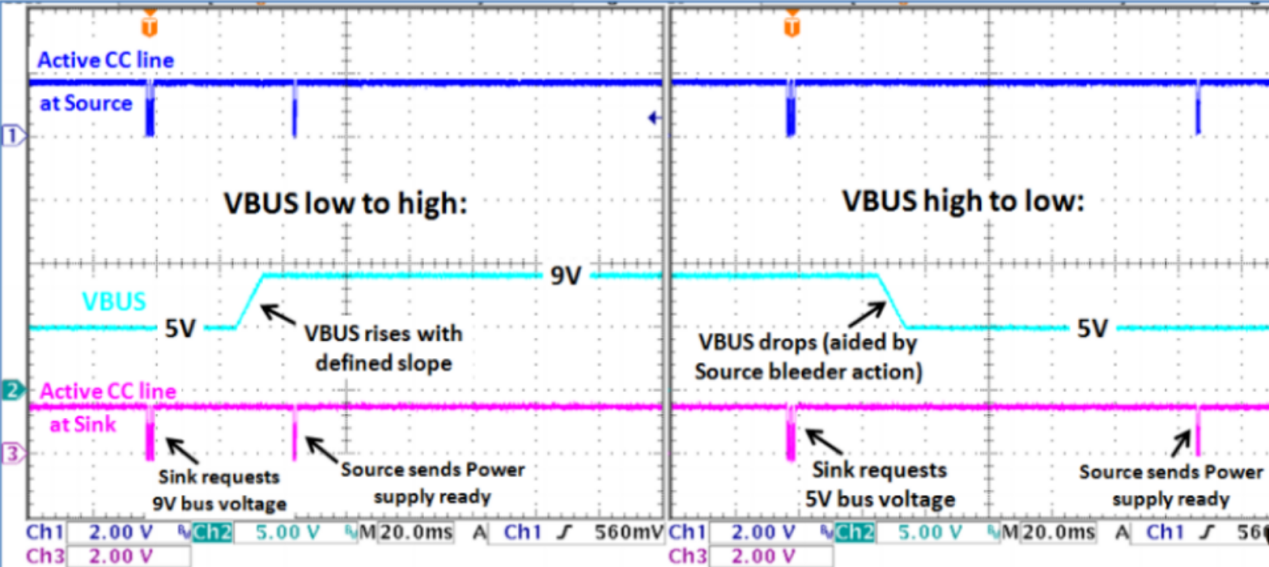

The overall negotiation process is as follows:
The device sends a request message to the power source, requesting a specific voltage and current level. After receiving the request, the source adjusts the VBUS output accordingly. Once the voltage becomes stable, the source sends a “Power Ready” confirmation message. After receiving this confirmation, the device can begin normal power consumption.
The entire negotiation process is completed through the CC line and does not require additional control signals.
The strength of the USB PD protocol lies in its flexibility. The same cable and the same connector can dynamically adjust output voltage and current according to different device requirements, allowing the same charging system to support devices ranging from smartphones to laptops.
However, this also places higher requirements on hardware design:
The VBUS path must support high voltage operation and hot-plug conditions. The CC communication channel requires reliable ESD protection, and the firmware of the protocol controller must include comprehensive fault handling mechanisms.
After completing the design, do not only check electrical connectivity. Use the following checklist to verify each item and avoid most common USB design issues.
Layout Check
Signal Integrity Check
Protection and Ground Check
Type-C Specific Check
Manufacturing Check
Although the USB interface appears simple, it is actually a combination of signal integrity, ESD protection, power design, and mechanical considerations.
A stable and reliable USB interface is never achieved by simply “connecting the wires.” Instead, it requires precise control over every design detail.
From understanding the function of each pin, to planning the return path of every signal trace, and verifying the effectiveness of each protection measure, engineers need to establish a systematic design methodology to ensure that the USB interface operates reliably instead of becoming a problem during mass production.
